        Knurled knobs Form C, with standard scale

Item description/product images

DescriptionMaterial:Thermoplastic, black grey.
Bush steel.Version:Bush blue passivatedNote:Available without graduations, with one scale line or with 20 graduations and 10 digits.

Δ Add the desired cap colour here. No colour code is required for black grey caps.On request:Special graduations.Drawing reference:

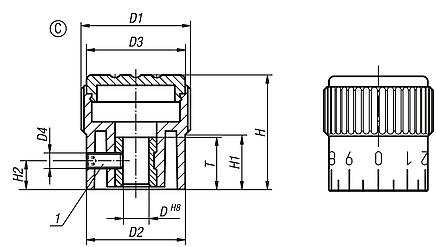

Form A: without graduations
Form B: with one scale line
Form C: with standard graduations

1) Set screw for locking (by Form C between numbers 5 and 6)

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06100_C Knurled knobs Form C, with standard scale

223 kB

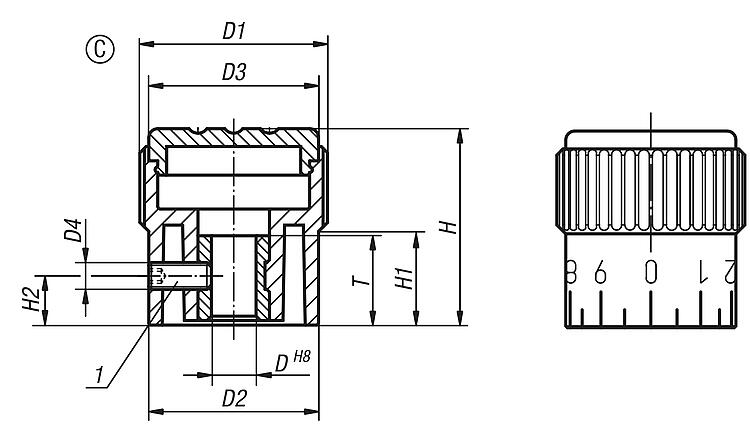

Drawings

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D2	D3	D4	H	H1	H2	T	Price
06100-3105	C	black grey RAL 7021	5	21	19	19	M3	22	10,5	5	10	on request
06100-31051	C	orange RAL 2004	5	21	19	19	M3	22	10,5	5	10	on request
06100-31052	C	signal green RAL6032	5	21	19	19	M3	22	10,5	5	10	on request
06100-31053	C	blue RAL5017	5	21	19	19	M3	22	10,5	5	10	on request
06100-31055	C	light grey RAL 7035	5	21	19	19	M3	22	10,5	5	10	on request
06100-31056	C	traffic red RAL 3020	5	21	19	19	M3	22	10,5	5	10	on request
06100-31057	C	colza yellow RAL 1021	5	21	19	19	M3	22	10,5	5	10	on request
06100-3206	C	black grey RAL 7021	6	26	23	23	M3	26	12	6	10	on request
06100-32061	C	orange RAL 2004	6	26	23	23	M3	26	12	6	10	on request
06100-32062	C	signal green RAL6032	6	26	23	23	M3	26	12	6	10	on request
06100-32063	C	blue RAL5017	6	26	23	23	M3	26	12	6	10	on request
06100-32065	C	light grey RAL 7035	6	26	23	23	M3	26	12	6	10	on request
06100-32066	C	traffic red RAL 3020	6	26	23	23	M3	26	12	6	10	on request
06100-32067	C	colza yellow RAL 1021	6	26	23	23	M3	26	12	6	10	on request
06100-3308	C	black grey RAL 7021	8	34	31	31	M4	36	17,5	7	14	on request
06100-33081	C	orange RAL 2004	8	34	31	31	M4	36	17,5	7	14	on request
06100-33082	C	signal green RAL6032	8	34	31	31	M4	36	17,5	7	14	on request
06100-33083	C	blue RAL5017	8	34	31	31	M4	36	17,5	7	14	on request
06100-33085	C	light grey RAL 7035	8	34	31	31	M4	36	17,5	7	14	on request
06100-33086	C	traffic red RAL 3020	8	34	31	31	M4	36	17,5	7	14	on request
06100-33087	C	colza yellow RAL 1021	8	34	31	31	M4	36	17,5	7	14	on request
