Palm grips DIN 6335, grey cast iron, Form C, blind hole

06160_C

Palm grips DIN 6335, grey cast iron, Form C, blind hole

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Grips, handles and knobs
        Palm grips grey cast iron DIN 6335
        Palm grips DIN 6335, grey cast iron, Form C, blind hole

Item description/product images

DescriptionMaterial:Grey cast iron GJL 200.Version:Vibratory ground.
Bright.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06160_C Palm grips DIN 6335, grey cast iron, Form C, blind hole

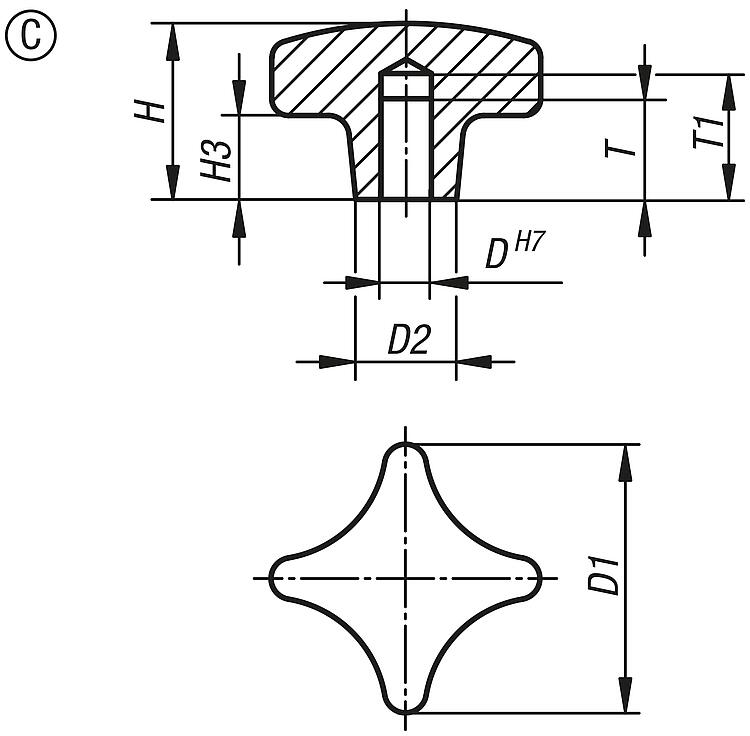

Drawings

Palm grips DIN 6335, grey cast iron, Form C, blind hole

Item selection/filter

Order No.	Form	Version 1	D	D1	D2	H	H3	T	T1	CAD	Acc.	Price	Order
06160-306	C	-	6	32	12	20	10	12	15			on request
06160-308	C	-	8	40	14	25	14	15	18			on request
06160-310	C	-	10	50	18	32	20	18	21			on request
06160-312	C	-	12	63	20	40	25	22	25			on request
06160-316	C	-	16	80	25	50	30	28	32			on request
06160-320	C	-	20	100	32	63	38	36	40			on request
