Star grips similar to DIN 6336, aluminium, Form A, blank
 06192_A

Star grips similar to DIN 6336, aluminium, Form A, blank

 go back

Item description/product images
DescriptionMaterial:Aluminium.Version:Vibratory ground.
Bright.On request:Blank star grips (not tumbled).Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06192_A Star grips similar to DIN 6336, aluminium, Form A, blank 189 kB

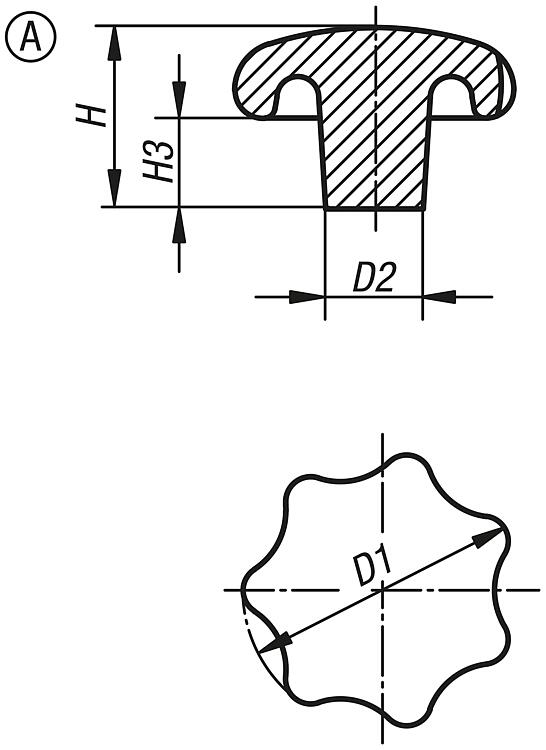

Drawings

Star grips similar to DIN 6336, aluminium, Form A, blank

Item selection/filter
Order No.

FormSurface finish
body		D1D2HH3CADAcc.PriceOrder
06192-14008Atumbled40142613 on request
06192-15010Atumbled50183417 on request
06192-16312Atumbled63204221 on request
06192-18016Atumbled80255225 on request
