        Star grips with safety cable similar to DIN 6336
        Star grips with safety cable similar to DIN 6336, internal thread, Form KS

Item description/product images

DescriptionMaterial:Star grip thermoplast, bush steel.
Safety cable elastic TPU.Version:Bush trivalent blue passivated.Note:Δ Add the desired cap colour code here. No colour code is required for black caps.

Attach the safety cable to a base to make the star grip unlosable. The star grip cannot be moved far from the object to which it belongs, simplifying screwing and unscrewing of the grip and ensuring against loss.Assembly:Do not stretch the band during assembly.
Make sure that the anchor is not too far from where the star grip is to be used.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06220_KS Star grips with safety cable similar to DIN 6336, internal thread, Form KS

403 kB

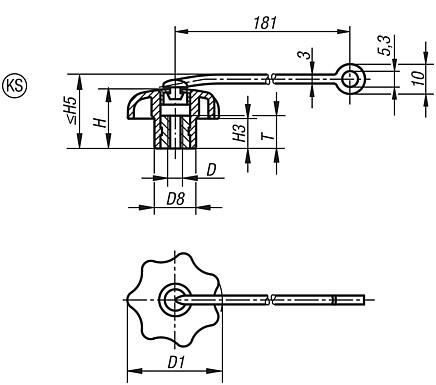

Drawings

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	H5 max.	T	Price
06220-604	KS	jet black	M4	25	12	16	8	22	10	on request
06220-6045	KS	light grey RAL 7035	M4	25	12	16	8	22	10	on request
06220-6046	KS	traffic red RAL 3020	M4	25	12	16	8	22	10	on request
06220-6047	KS	colza yellow RAL 1021	M4	25	12	16	8	22	10	on request
06220-605	KS	jet black	M5	25	12	16	8	22	10	on request
06220-6055	KS	light grey RAL 7035	M5	25	12	16	8	22	10	on request
06220-6056	KS	traffic red RAL 3020	M5	25	12	16	8	22	10	on request
06220-6057	KS	colza yellow RAL 1021	M5	25	12	16	8	22	10	on request
06220-6061	KS	jet black	M6	25	12	16	8	22	10	on request
06220-60615	KS	light grey RAL 7035	M6	25	12	16	8	22	10	on request
06220-60616	KS	traffic red RAL 3020	M6	25	12	16	8	22	10	on request
06220-60617	KS	colza yellow RAL 1021	M6	25	12	16	8	22	10	on request
06220-6051	KS	jet black	M5	32	14	20	10	26	10	on request
06220-60515	KS	light grey RAL 7035	M5	32	14	20	10	26	10	on request
06220-60516	KS	traffic red RAL 3020	M5	32	14	20	10	26	10	on request
06220-60517	KS	colza yellow RAL 1021	M5	32	14	20	10	26	10	on request
06220-606	KS	jet black	M6	32	14	20	10	26	10	on request
06220-6065	KS	light grey RAL 7035	M6	32	14	20	10	26	10	on request
06220-6066	KS	traffic red RAL 3020	M6	32	14	20	10	26	10	on request
06220-6067	KS	colza yellow RAL 1021	M6	32	14	20	10	26	10	on request
06220-608	KS	jet black	M8	40	18	25	13	31	14	on request
06220-6085	KS	light grey RAL 7035	M8	40	18	25	13	31	14	on request
06220-6086	KS	traffic red RAL 3020	M8	40	18	25	13	31	14	on request
06220-6087	KS	colza yellow RAL 1021	M8	40	18	25	13	31	14	on request
06220-6101	KS	jet black	M10	40	18	25	13	31	14	on request
06220-61015	KS	light grey RAL 7035	M10	40	18	25	13	31	14	on request
06220-61016	KS	traffic red RAL 3020	M10	40	18	25	13	31	14	on request
06220-61017	KS	colza yellow RAL 1021	M10	40	18	25	13	31	14	on request
06220-6081	KS	jet black	M8	50	22	32	17	38	14	on request
06220-60815	KS	light grey RAL 7035	M8	50	22	32	17	38	14	on request
06220-60816	KS	traffic red RAL 3020	M8	50	22	32	17	38	14	on request
06220-60817	KS	colza yellow RAL 1021	M8	50	22	32	17	38	14	on request
06220-610	KS	jet black	M10	50	22	32	17	38	14	on request
06220-6105	KS	light grey RAL 7035	M10	50	22	32	17	38	14	on request
06220-6106	KS	traffic red RAL 3020	M10	50	22	32	17	38	14	on request
06220-6107	KS	colza yellow RAL 1021	M10	50	22	32	17	38	14	on request
06220-6121	KS	jet black	M12	50	22	32	17	38	14	on request
06220-61215	KS	light grey RAL 7035	M12	50	22	32	17	38	14	on request
06220-61216	KS	traffic red RAL 3020	M12	50	22	32	17	38	14	on request
06220-61217	KS	colza yellow RAL 1021	M12	50	22	32	17	38	14	on request
06220-6102	KS	jet black	M10	63	26	40	21	46	14	on request
06220-61025	KS	light grey RAL 7035	M10	63	26	40	21	46	14	on request
06220-61026	KS	traffic red RAL 3020	M10	63	26	40	21	46	14	on request
06220-61027	KS	colza yellow RAL 1021	M10	63	26	40	21	46	14	on request
06220-612	KS	jet black	M12	63	26	40	21	46	14	on request
06220-6125	KS	light grey RAL 7035	M12	63	26	40	21	46	14	on request
06220-6126	KS	traffic red RAL 3020	M12	63	26	40	21	46	14	on request
06220-6127	KS	colza yellow RAL 1021	M12	63	26	40	21	46	14	on request
06220-616	KS	jet black	M16	63	26	40	21	46	14	on request
06220-6165	KS	light grey RAL 7035	M16	63	26	40	21	46	14	on request
06220-6166	KS	traffic red RAL 3020	M16	63	26	40	21	46	14	on request
06220-6167	KS	colza yellow RAL 1021	M16	63	26	40	21	46	14	on request
