        Ball knobs smooth DIN 319 enhanced
        Ball knobs smooth DIN 319 enhanced, Form E, with tapped bush

Item description/product images

DescriptionMaterial:Thermoset PF 31, black or red.
Bush electro zinc-plated steel.Version:High-gloss polished.Note:The version 06250-21604 has a bush in copper-plated steel.
The versions 06250-23008, 06250-23508 and 06250-24008 have a bush in brass.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06250_E Ball knobs smooth DIN 319 enhanced, Form E, with tapped bush

163 kB

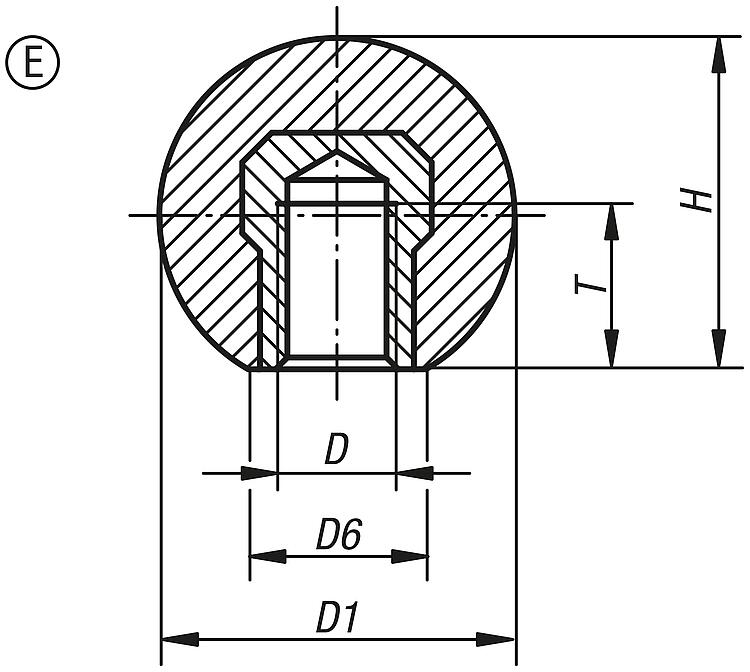

Drawings

Item selection/filter

Order No.	Form	Main colour	Component material	D	D1	D6	H	T	Price
06250-21604	E	black	brass	M4	16	8	15	10	on request
06250-22005	E	black	Brass	M5	20	12	18	12	on request
06250-22006	E	black	steel	M6	20	12	18	15	on request
06250-22506	E	black	steel	M6	25	15	22,5	15	on request
06250-22508	E	black	steel	M8	25	15	22,5	18	on request
06250-23008	E	black	Brass	M8	30	15	28	15	on request
06250-23208	E	black	steel	M8	32	18	29	18	on request
06250-23210	E	black	steel	M10	32	18	29	18	on request
06250-23508	E	black	steel	M8	36	16	34	18	on request
06250-23510	E	black	steel	M10	36	16	34	23	on request
06250-24008	E	black	steel	M8	40	22	37	18	on request
06250-24010	E	black	steel	M10	40	22	37	23	on request
06250-24012	E	black	steel	M12	40	22	37	25	on request
06250-24510	E	black	steel	M10	45	17	43	23	on request
06250-24512	E	black	steel	M12	45	17	43	25	on request
06250-25010	E	black	steel	M10	50	29	46	23	on request
06250-25012	E	black	steel	M12	50	29	46	25	on request
06250-220051	E	red	steel	M5	20	12	18	7,5	on request
06250-225061	E	red	steel	M6	25	15	23	9	on request
06250-230081	E	red	steel	M8	30	16	28	12	on request
06250-235101	E	red	steel	M10	36	17	33	14	on request
06250-240101	E	red	steel	M10	40	20	37,5	15	on request
06250-240121	E	red	steel	M12	40	20	37,5	18	on request
06250-250121	E	red	steel	M12	50	28	48	18	on request
