Ball knobs smooth DIN 319 enhanced, Form L, with clamping sleeve

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Grips, handles and knobs
        Ball knobs smooth DIN 319 enhanced
        Ball knobs smooth DIN 319 enhanced, Form L, with clamping sleeve

Item description/product images

DescriptionMaterial:Black thermoset PF 31.
Bush electro zinc-plated steel.Version:High-gloss polished.Note:Assembly Form L: The Ball Knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g!Shank tolerance:Ball knobs with press-fit sleeve can be mounted on standard shafts with tolerance h9. The supplied press-fit sleeve assures a firm and reliable fit.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06250_L Ball knobs smooth DIN 319 enhanced, Form L, with clamping sleeve

179 kB

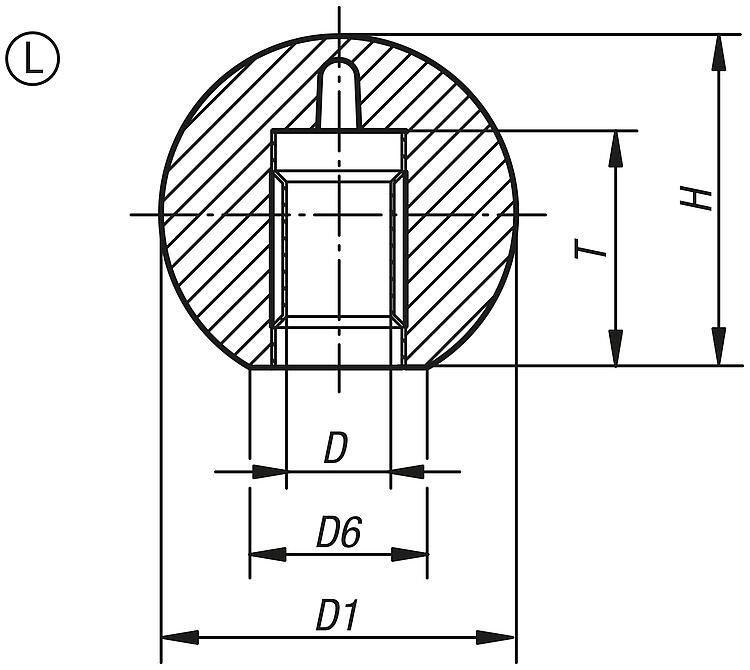

Drawings

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	Price
06250-42005	L	black	5	20	12	18	13	on request
06250-42506	L	black	6	25	15	23	16	on request
06250-42508	L	black	8	25	15	23	15	on request
06250-43208	L	black	8	32	18	29	15	on request
06250-43210	L	black	10	32	18	29	20	on request
06250-44010	L	black	10	40	20	37,5	20	on request
06250-44012	L	black	12	40	20	37,5	23	on request
06250-45012	L	black	12	50	28	48	20	on request
