T-grips, plastic, Form K, with internal thread

06650-01_K

T-grips, plastic, Form K, with internal thread

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Grips, handles and knobs
        T-grips, plastic
        T-grips, plastic, Form K, with internal thread

Item description/product images

DescriptionMaterial:Black thermoset PF 31.
Bush electro zinc-plated steel.Version:High-gloss polished.On request:Other colours.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06650-01_K T-grips, plastic, Form K, with internal thread

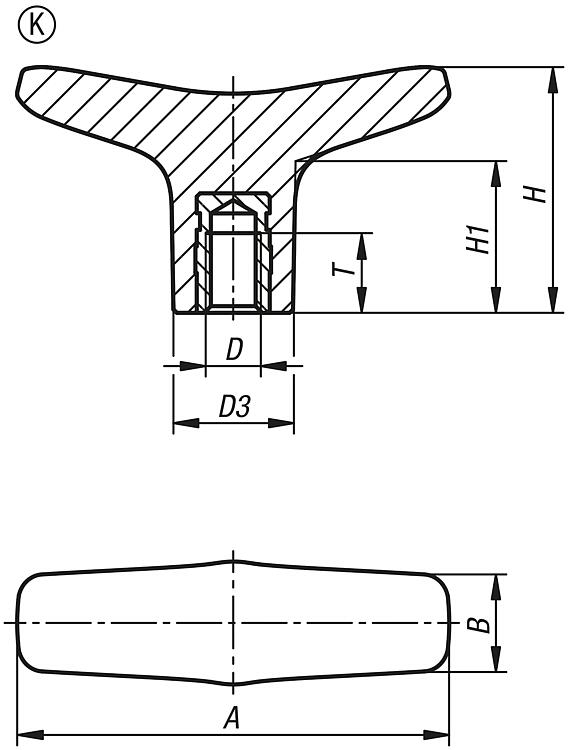

Drawings

T-grips, plastic, Form K, with internal thread

Item selection/filter

Order No.	Form	Thread type	A	B	D	D3	H	H1	T	CAD	Acc.	Price	Order
06650-01-16506	K	internal thread	65,1	14,6	M6	18	37	22,9	9			on request
06650-01-16508	K	internal thread	65,1	14,6	M8	18	37	22,9	12			on request
06650-01-17508	K	internal thread	75,1	18,4	M8	22	41,2	25,2	12			on request
06650-01-17510	K	internal thread	75,1	18,4	M10	22	41,2	25,2	15			on request
06650-01-18510	K	internal thread	85,2	19,6	M10	24	44,8	26,5	15			on request
06650-01-18512	K	internal thread	85,2	19,6	M12	24	44,8	26,5	18			on request

Other items in this category

T-grips, plastic, Form L, with external thread

06650-01_L

T-grips, plastic, Form L, with external thread
