DescriptionMaterial:Thermoplastic.

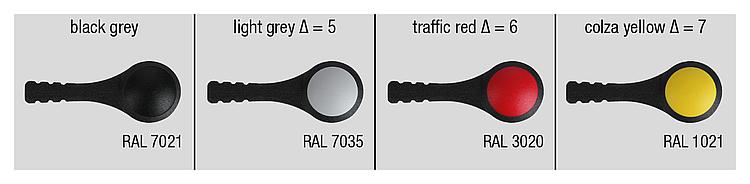

Bush steel 5.8 or stainless steel 1.4305. Version:Steel trivalent blue passivated, stainless steel bright.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

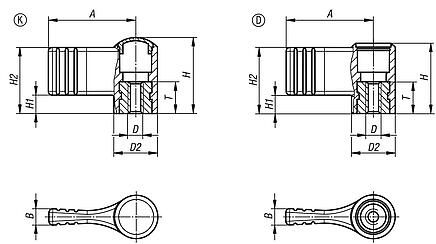

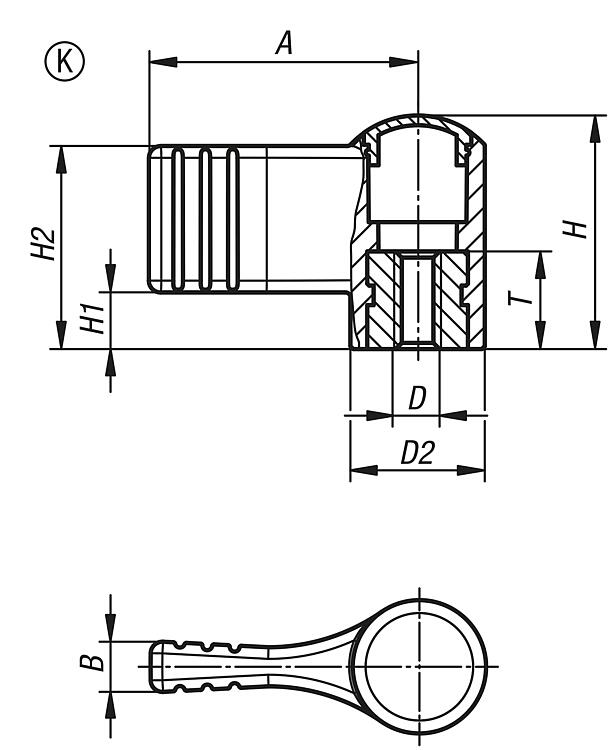

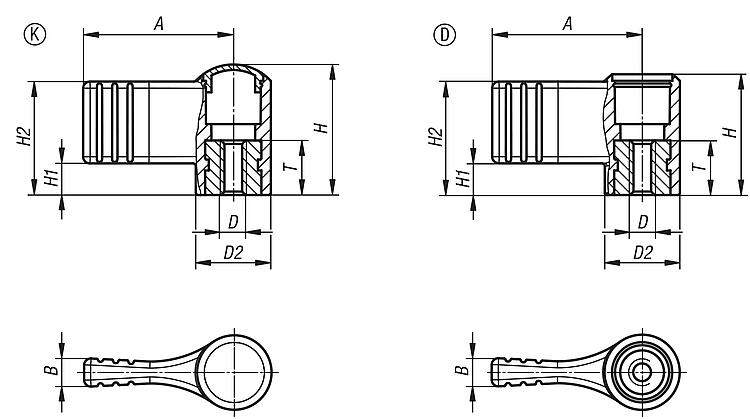

Drawings (total overview) |
Order No.
steel | Order No.
stainless steel | Form
| D | D2 | A | B | H | H1 | H2 | T | Filter |
|---|
| 06660-904Δ | 06660-0904Δ | K | M4 | 12 | 22 | 4,4 | 18 | 4,5 | 15,5 | 10 |  | | 06660-905Δ | 06660-0905Δ | K | M5 | 12 | 22 | 4,4 | 18 | 4,5 | 15,5 | 10 | | | 06660-906Δ | 06660-0906Δ | K | M6 | 12 | 22 | 4,4 | 18 | 4,5 | 15,5 | 10 | | | 06660-105Δ | 06660-0105Δ | K | M5 | 14 | 27,5 | 5,1 | 24 | 5,8 | 20,8 | 10 | | | 06660-106Δ | 06660-0106Δ | K | M6 | 14 | 27,5 | 5,1 | 24 | 5,8 | 20,8 | 10 | | | 06660-208Δ | 06660-0208Δ | K | M8 | 21 | 37,5 | 6,3 | 36 | 8,5 | 30,5 | 14 | | | 06660-210Δ | 06660-0210Δ | K | M10 | 21 | 37,5 | 6,3 | 36 | 8,5 | 30,5 | 14 | |
|
Order No.
steel | Order No.
stainless steel | Form
| A | B | D | D2 | H | H1 | H2 | T | Filter |
|---|
| 06660-1904 | 06660-10904 | D | 22 | 4,4 | M4 | 12 | 16,1 | 4,5 | 15,5 | 10 | | | 06660-1905 | 06660-10905 | D | 22 | 4,4 | M5 | 12 | 16,1 | 4,5 | 15,5 | 10 | | | 06660-1906 | 06660-10906 | D | 22 | 4,4 | M6 | 12 | 16,1 | 4,5 | 15,5 | 10 | | | 06660-1105 | 06660-10105 | D | 27,5 | 5,1 | M5 | 14 | 22,1 | 5,8 | 20,8 | 10 | | | 06660-1106 | 06660-10106 | D | 27,5 | 5,1 | M6 | 14 | 22,1 | 5,8 | 20,8 | 10 | | | 06660-1208 | 06660-10208 | D | 37,5 | 6,3 | M8 | 21 | 33,3 | 8,5 | 30,5 | 14 | | | 06660-1210 | 06660-10210 | D | 37,5 | 6,3 | M10 | 21 | 33,3 | 8,5 | 30,5 | 14 | |
|
