        Triangular grips with high collar, external thread

Item description/product images

DescriptionMaterial:Black thermoset PF 31.
Threaded pin electro zinc-plated steel or bright stainless steel.Version:High-gloss polished.On request:Other screw sizes, screw lengths and colours.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06702_AG Triangular grips with high collar, external thread

133 kB

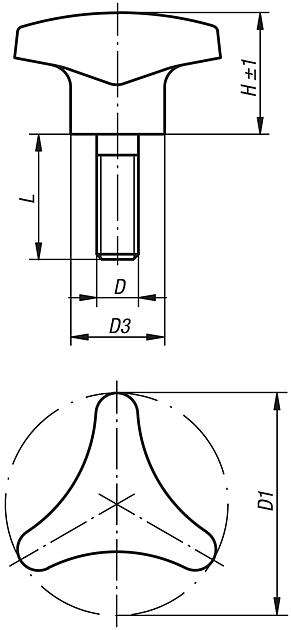

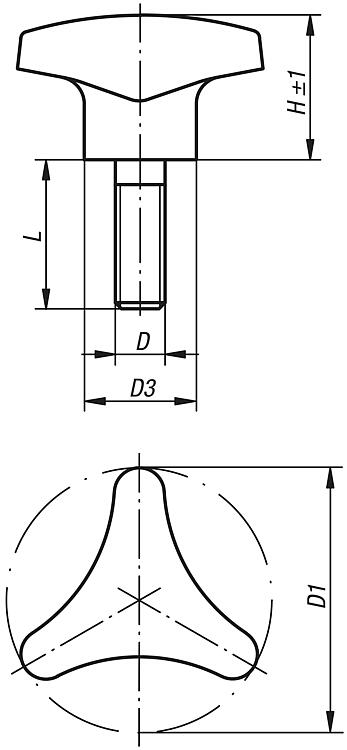

Drawings

Item selection/filter

Order No.	Form	Component material	D	D1	D3	H	L	Price
06702-14006X15	L	steel	M6	40	14	22	15	on request
06702-14008X20	L	steel	M8	40	14	22	20	on request
06702-15008X20	L	steel	M8	50	18	28	20	on request
06702-15010X25	L	steel	M10	50	22	28	25	on request
06702-16210X25	L	steel	M10	62	22	35	25	on request
06702-24006X20	L	stainless steel	M6	40	12	22	20	on request
06702-24008X20	L	stainless steel	M8	40	12	22	20	on request
06702-25008X20	L	stainless steel	M8	50	15	28	20	on request
06702-25010X30	L	stainless steel	M10	50	15	28	30	on request
06702-26210X30	L	stainless steel	M10	62	18	35	30	on request
