414005-axis vice jaw plates smooth |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:The 5-axis vice features excellent stability and flexibility, and is extremely easy to use. The 5-axis vice can be used as a positive-down force vice or normal vice. When the positive down force function is used, the workpiece can be held with a repeat accuracy of ±0.01 mm. A workpiece clamping height of 155/180 mm enables easy access during machining. The clamping width is preset using the crank handle, cutting down on setup times. Additionally, the closed geometries and the resistance to dirt that they provide keep maintenance and repair times to a minimum.Material:Steel.Version:Baseplate and workpiece support hardened.Note:Additional product information can be found in the operating instructions.Type of operation:Quick adjustment using crank handle.Advantages:For use as centric-clamping device with positive down force function or vice.
Straightforward, infinite clamping width adjustment using crank handle.
Optimum clamping height for 5-axis machining.
Flexible options for connection to machine tables.On request:Various spare parts, larger clamping widths.Accessory:Baseplates 41405
Jaw plates with pins 41410
Combination jaw plates, smooth/with pins 41410
Jaw plates, machinable 41320
Seating ledges 41345
Extension shafts 41355
Cylinder clamping set 41350
Stop set 41370
Clamping pin 42208-140250516, 42208-240250516
Clamping claw sets 41375
Slot nuts 03240-1814x20
Fitted bolts 07533-12065
Socket head screws 07160-12X60

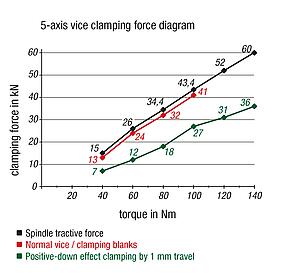

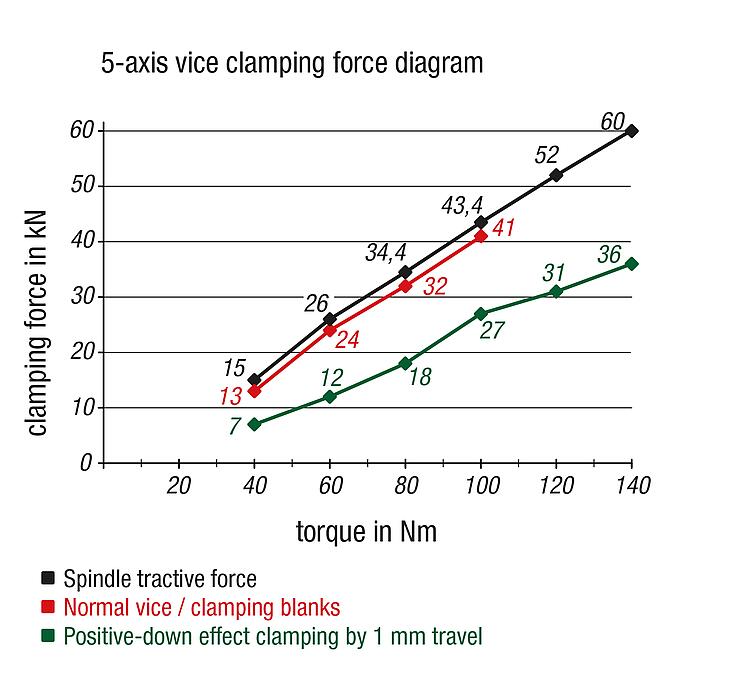

Torque wrench 96662-01-01Clamping force:see diagramApplications:Suitable for T-slot and grid hole tables and zero-point clamping systems.

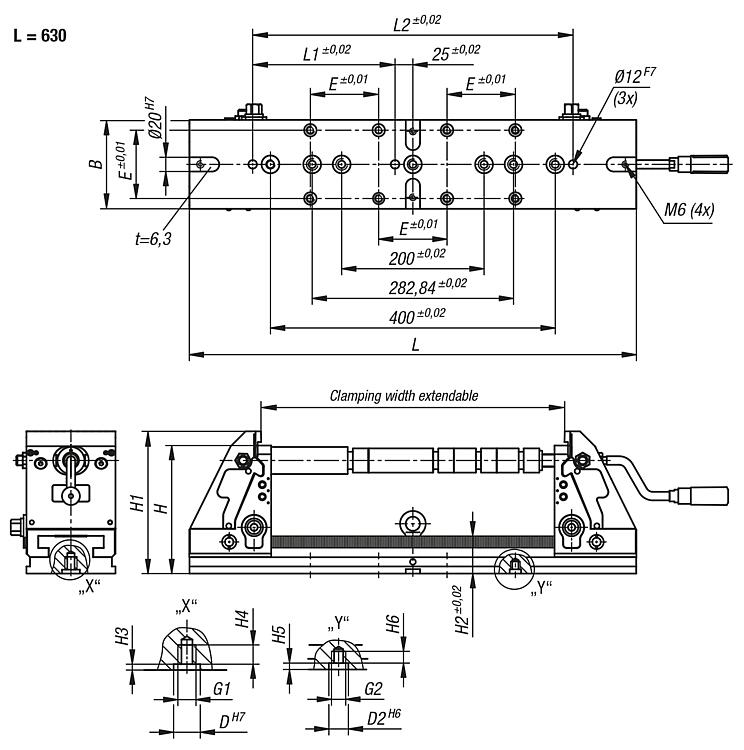

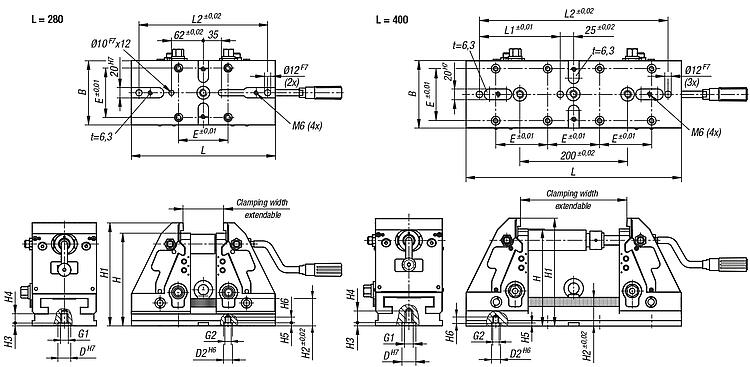

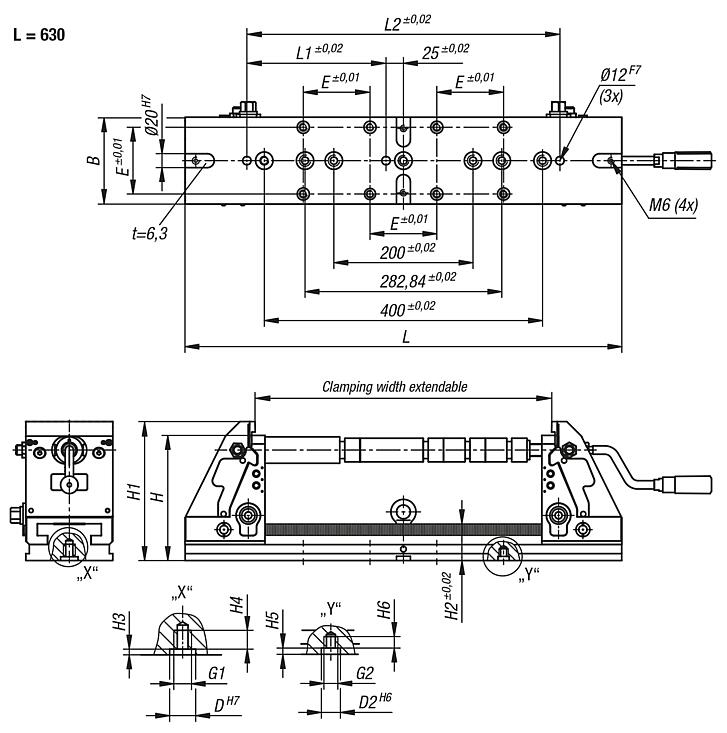

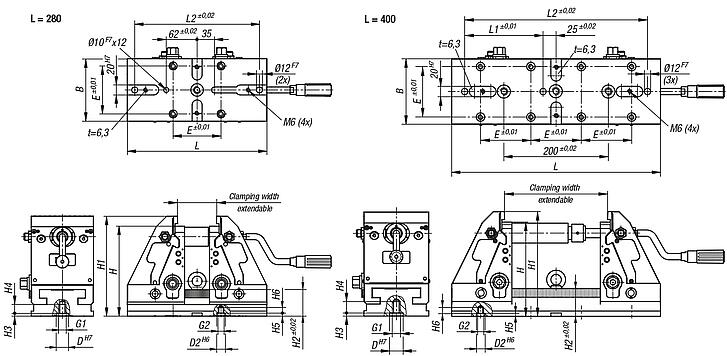

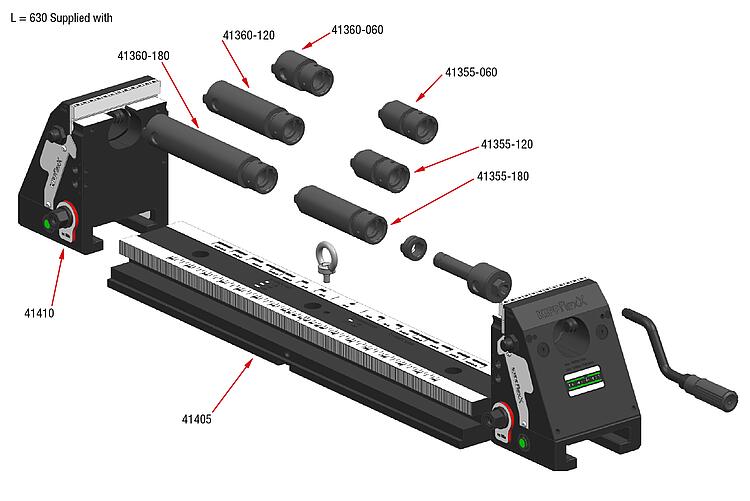

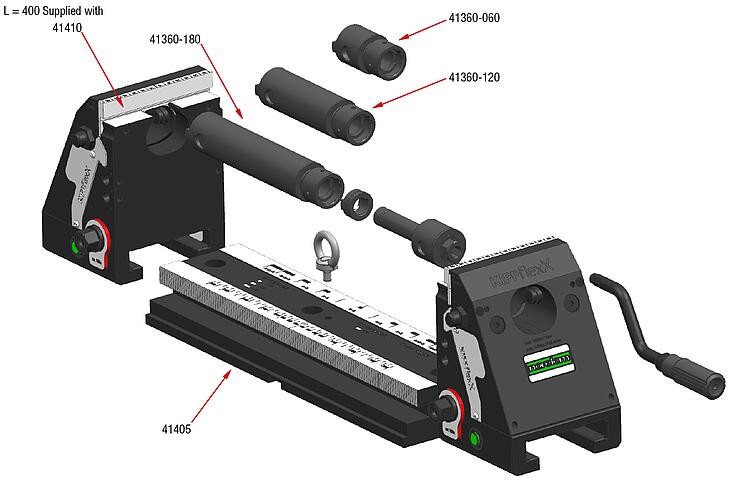

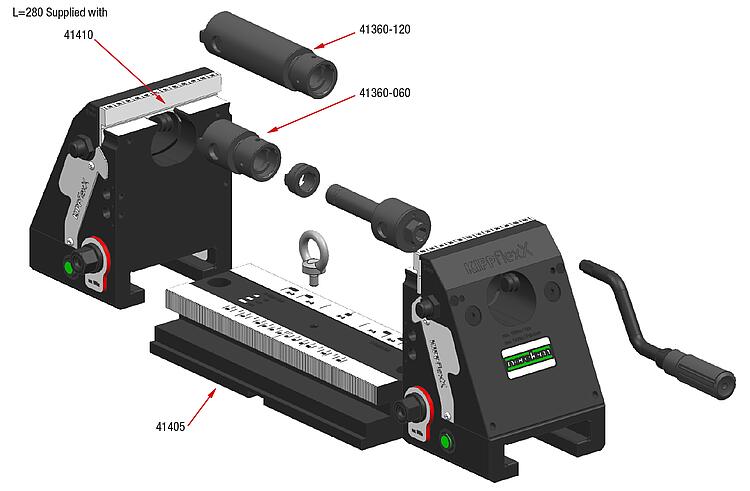

Size 282.84mm for diagonal alignment on zero-point clamping systems with gauge 52/96/200mm.Tolerances:With a clamping depth of > 5 mm, the repeat accuracy while the positive down force function is being used is ±0.01.Supplied withDepending on the baseplate length, see operating instructions.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
