41405Baseplates 5-axis vice |
go back |
|
Item description/product images |
|
|

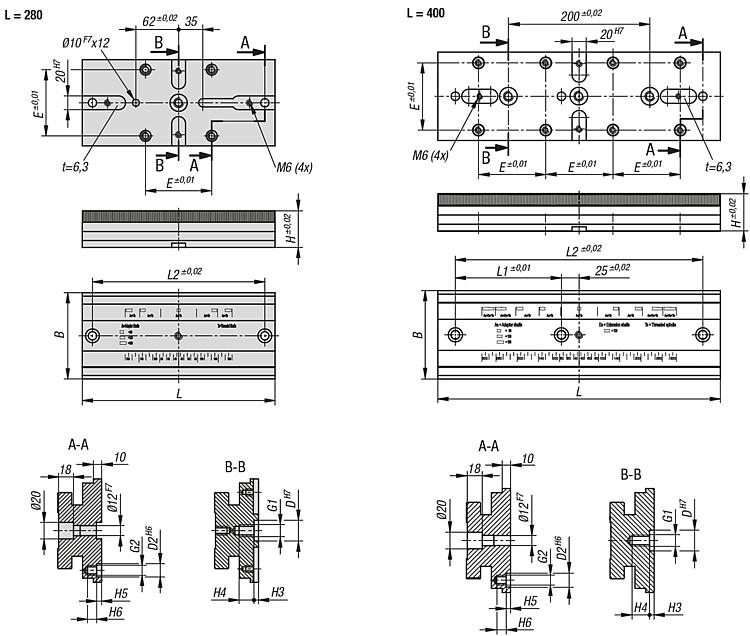

DescriptionProduct description:The baseplates offer versatile connection options. The locating slots on the underside can be used to perform alignment directly on the machine table using slot keys. Fastening in 12F7 grid holes with grid spacing of 50 mm is also possible. Claw clamps or separate clamping devices can be located on the side recess. The baseplate is also suitable for all standard zero-point clamping systems with a centre distance of 52/96/200 mm.
The integrated central hole can also be used for alignment. In this case, a specific centre pin is used to perform central alignment on the machine table.Material:Steel.Version:Hardened and black oxidised.
Contact faces ground.Note:Additional product information can be found in the operating instructions.On request:other dimensions.Applications:Suitable for T-slot tables, basic elements with grid holes and zero-point clamping systems.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
