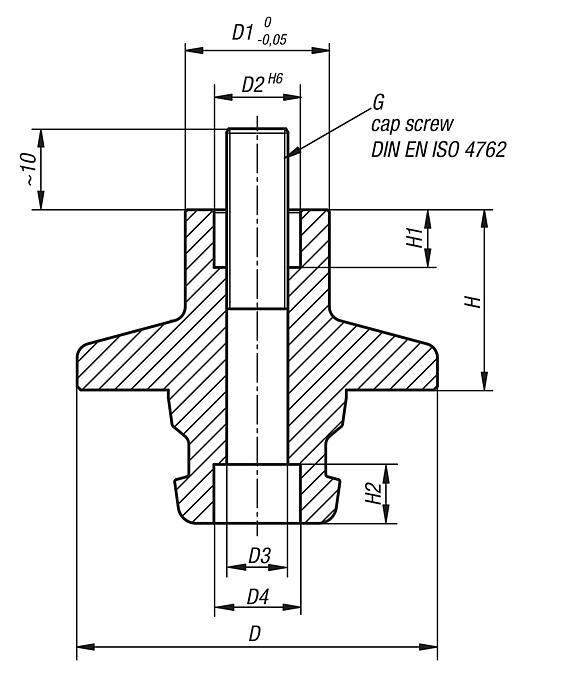

42218UNILOCK 5-axis reducer adapter system size 50 mm |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Rust resistant tool steel.Version:Contact faces hardened and ground.
Body and clamping pin are one piece.Note:The UNILOCK 5-axis reducer adapter is suitable for clamping and positioning workpieces.
Reducer adapters can be screwed onto the workpiece and mounted on the basic module or add-on clamp module.
The system size 50 add-on module can also be combined with the system size 80. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

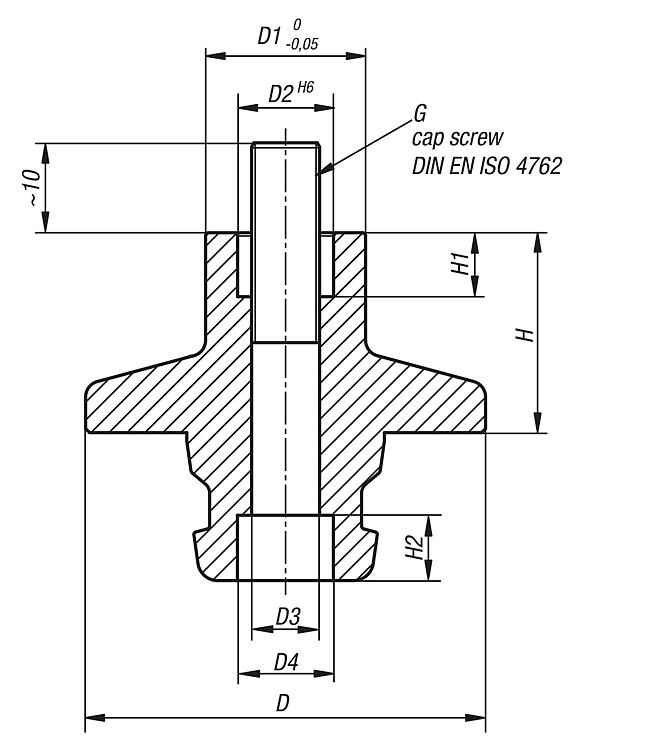

| Order No. | Form | D
| D1 | D2 | D3 | D4 | G | H | H1 | H2 | CAD | Acc. | Price | Order |
|---|
| 42218-251081 | A | 50 | 20 | 12 | 8,5 | 13,3 | M8 | 25 | 12 | 8,2 |  | | on request | | | 42218-501081 | A | 50 | 20 | 12 | 8,5 | 13,3 | M8 | 50 | 12 | 8,2 | | | on request | |
