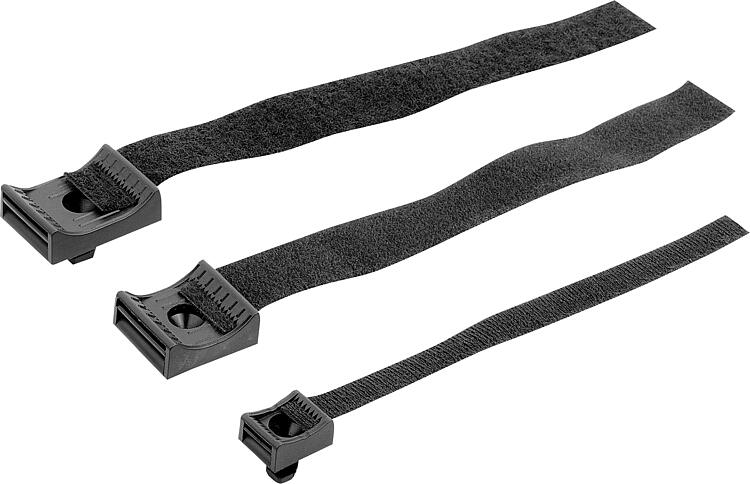

        Bracket with hook and loop fastener for aluminium profiles

Item description/product images

DescriptionMaterial:Bracket fibreglass reinforced polyamide.
Hook and loop fastener polypropylene.Version:Bracket black, self-extinguishing as per UL94-V0.
Hook and loop fastener black, self-extinguishing as per UL94-V2.Note:The hook and loop fastener bracket serves as an installation aid for the damage-free securing of wires, cables and hoses. The bracket is already fitted with a hook and loop strip The hook and loop strip can be inserted and removed without tools. The hook and loop strip can be opened and fastened hundreds of times.

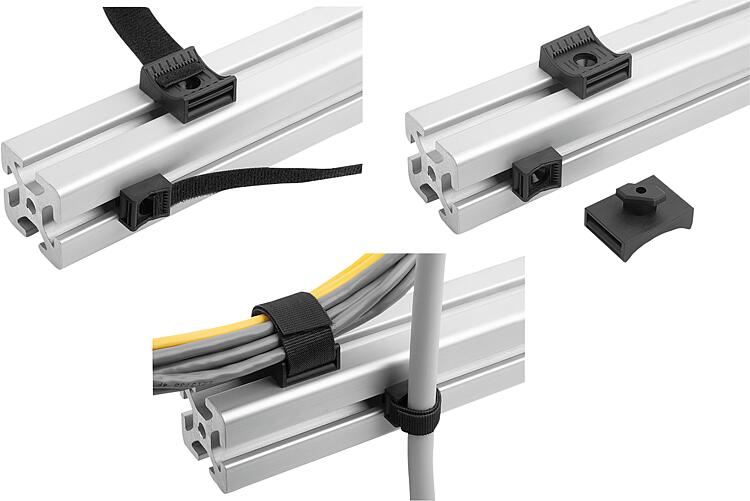

The hook and loop fastener bracket is for mounting on aluminium profiles.

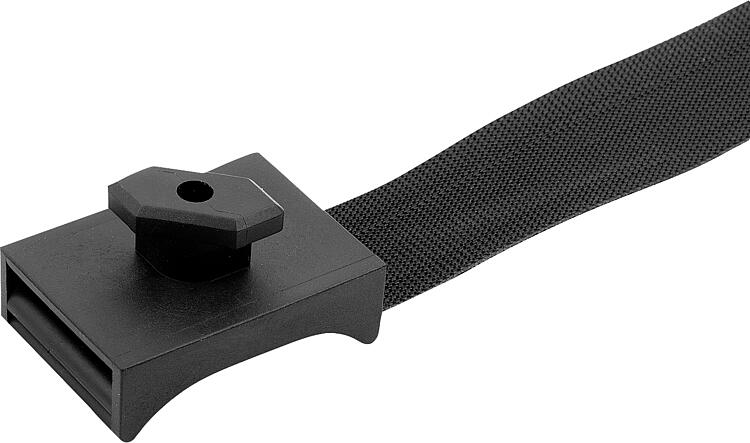

The T-base on the bracket is used to mount the bracket in the slots of aluminium profiles without tools. The bracket can be mounted at right angles or parallel to the profile slot by turning it through 45°.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80900-05 Bracket with hook and loop fastener for aluminium profiles

320 kB

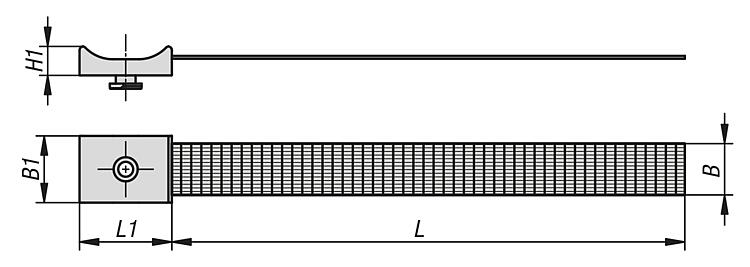

Drawings

Item selection/filter

Order No.	Profile	B	B1	H1	L	L1	Slot width	Clamping range mm	Price
80900-05-10810150	I	10	15	15,4	150	19	8	4-20	on request
80900-05-10820180	I	20	26	18,1	180	29	8	8-35	on request
80900-05-10820200	I	20	26	18,5	200	36	8	10-60	on request
80900-05-20810150	B	10	15	13,8	150	19	8	4-20	on request
80900-05-20820180	B	20	26	17	180	29	8	8-35	on request
80900-05-20820200	B	20	26	17,1	200	36	8	10-60	on request
80900-05-21010150	B	10	15	17,7	150	19	10	4-20	on request
80900-05-21020180	B	20	26	20,9	180	29	10	8-35	on request
80900-05-21020200	B	20	26	21	200	36	10	10-60	on request
