83456-10Actuator for RFID coded safety switch |
go back |
|
|
DescriptionMaterial:Housing thermoplastic.Version:Operating principle: RFID
Rating: IP67.Note:Actuator for RFID coded safety switch. If the actuator is within the switching range (safety door closed), the semiconductor outputs of the safety switch are activated.Temperature range:-25 °C to +65 °C.Accessory:Safety switch RFID coded 83456.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

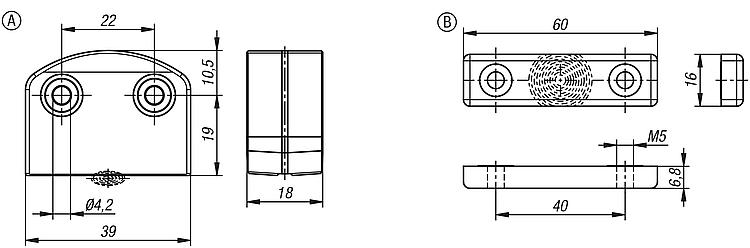

Drawings (total overview) |
Order No.
| Form | Form definition | CAD | Acc. | Price | Order |
|---|

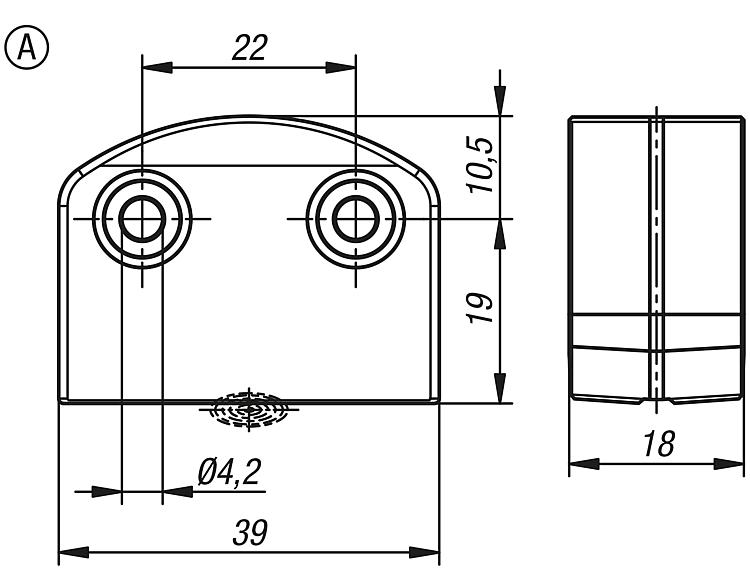

| 83456-10-1 | A | Standard |  | | on request | |
|
Order No.
| Form | Form definition | CAD | Acc. | Price | Order |
|---|

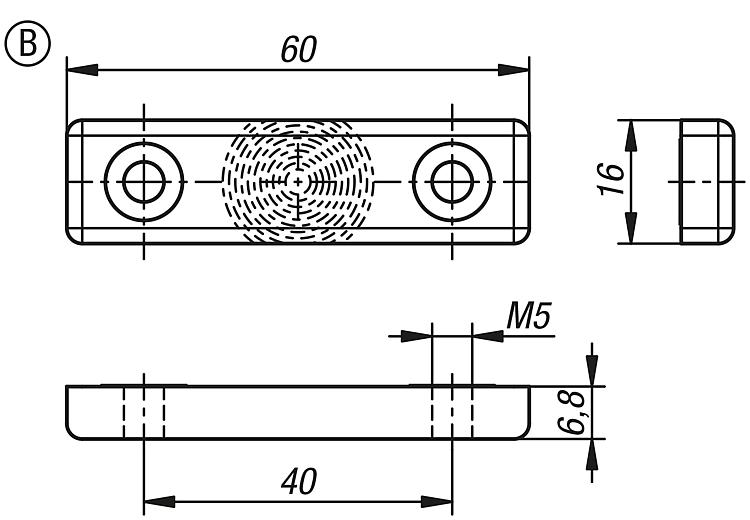

| 83456-10-2 | B | compact | | | on request | |
|
