        Cylindrical straight bolts, Form B

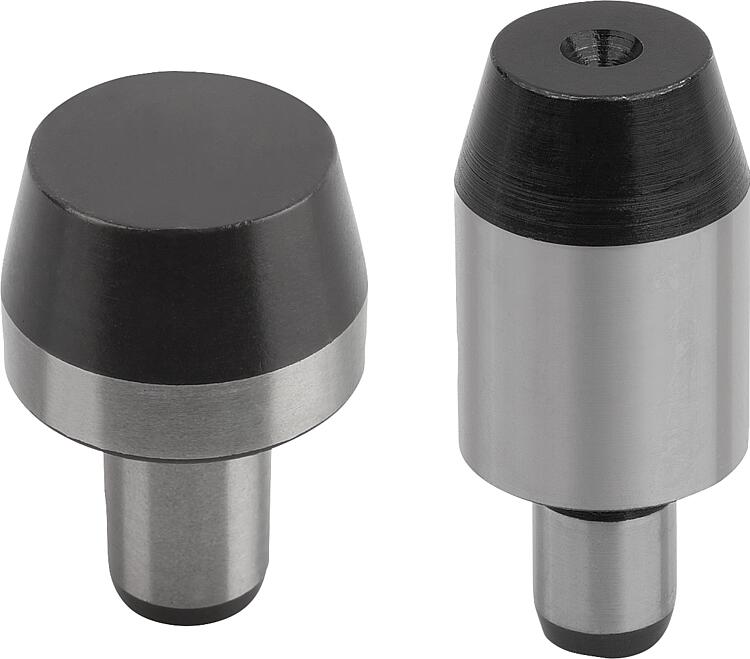

Item description/product images

DescriptionMaterial:Tool steel.Version:Hardened and ground.Note:Locating pins Form B serve to position workpieces and fixture parts in reamed holes.
Locating pins Form B can also be used as hardened stops and as fixture feet.
For similar locating pins see 03120, 03130, 03140 and 03150.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02020_B Cylindrical straight bolts, Form B

158 kB

Drawings

Item selection/filter

Order No.	Form	Version 1	D1	D2	H	H1	H2	H3	T	Price
02020-206	B	short	6	4	7	6	1,2	4	0,02	on request
02020-208	B	short	8	6	10	9	1,6	6	0,02	on request
02020-210	B	short	10	6	10	9	1,6	6	0,02	on request
02020-212	B	short	12	6	10	9	1,6	6	0,02	on request
02020-216	B	short	16	8	13	12	2	8	0,04	on request
02020-220	B	short	20	12	15	18	2	9	0,04	on request
02020-225	B	short	25	12	15	18	2,5	9	0,04	on request
02020-306	B	long	6	4	12	6	1,2	4	0,02	on request
02020-308	B	long	8	6	16	9	1,6	6	0,02	on request
02020-310	B	long	10	6	18	9	1,6	6	0,02	on request
02020-312	B	long	12	6	18	9	1,6	6	0,02	on request
02020-316	B	long	16	8	22	12	2	8	0,04	on request
02020-320	B	long	20	12	25	18	2	9	0,04	on request
02020-325	B	long	25	12	25	18	2,5	9	0,04	on request
