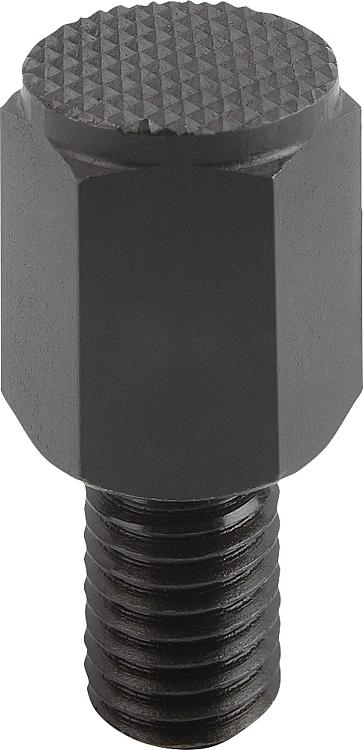

        Positioning feet, Form D serrated face tempered

Item description/product images

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.Note:These positioning feet are used as supports for rough and machined parts. They can also be used as stops and thrust pads in fixtures and toolmaking.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02041_D Positioning feet, Form D serrated face tempered

149 kB

Drawings

Item selection/filter

Order No.	Form	B	D	G	H	SW	Price
02041-406010	D	11	10	M6	10	10	on request
02041-406020	D	11	10	M6	20	10	on request
02041-408015	D	13	13	M8	15	13	on request
02041-408030	D	13	13	M8	30	13	on request
02041-410020	D	16	17	M10	20	17	on request
02041-410040	D	16	17	M10	40	17	on request
02041-412025	D	20	19	M12	25	19	on request
02041-412050	D	20	19	M12	50	19	on request
02041-416030	D	24	27	M16	30	27	on request
02041-416060	D	24	27	M16	60	27	on request
02041-420040	D	29	32	M20	40	32	on request
02041-420080	D	29	32	M20	80	32	on request
