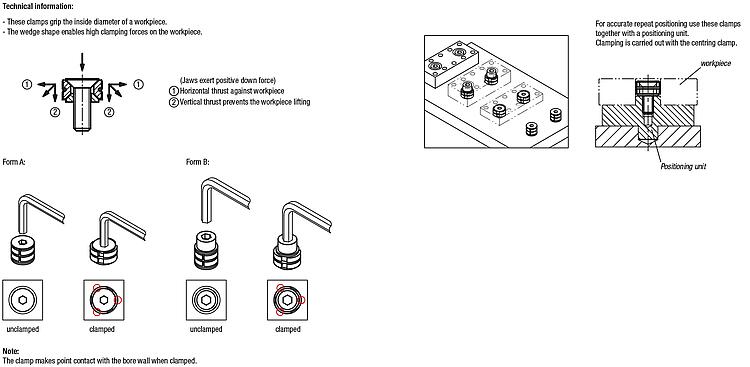

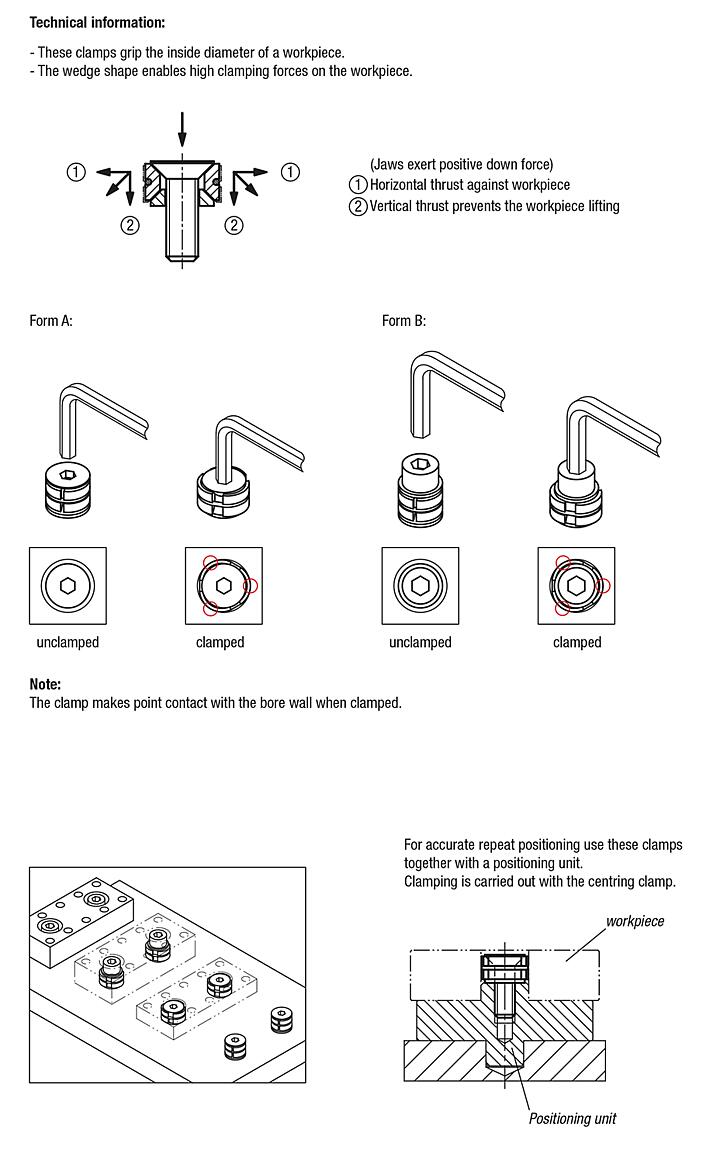

DescriptionMaterial:Carbon steel.Version:Hardened (33–39 HRC) and black oxidised.Note:The centring clamp enables a workpiece to be centred and clamped in the bore.
The wedges generate higher clamping forces.
The centring clamp is available with a cap screw or countersunk screw.

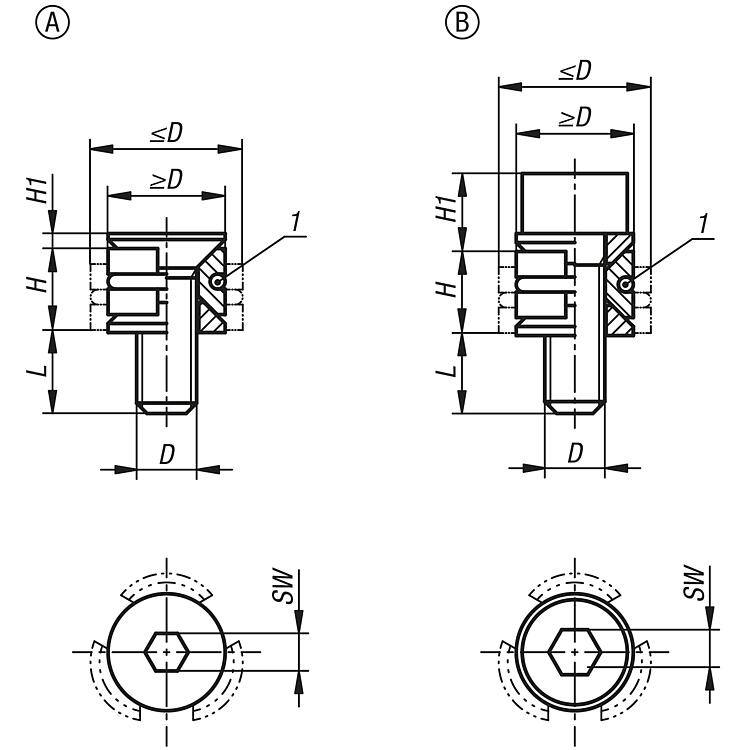

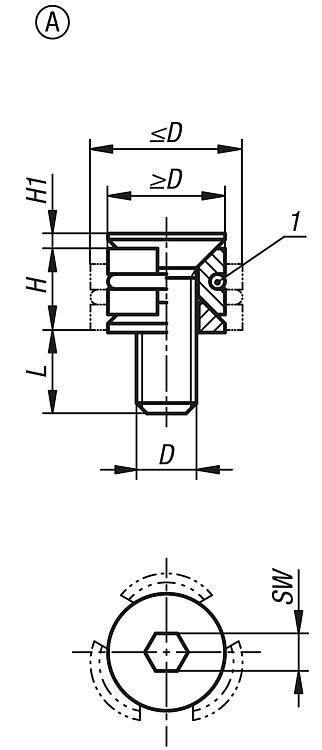

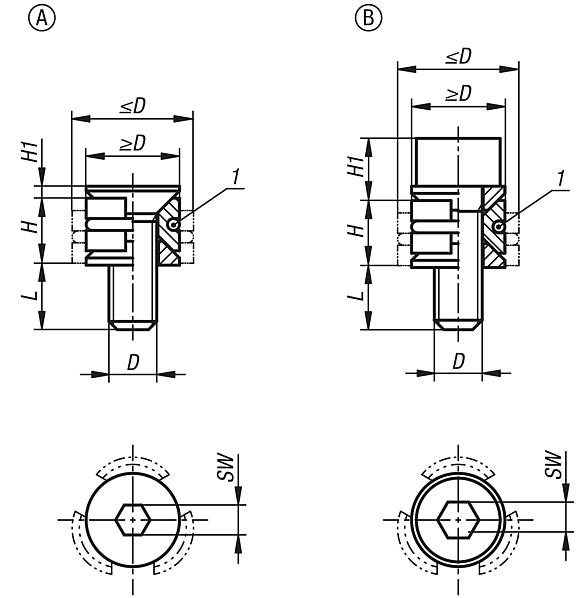

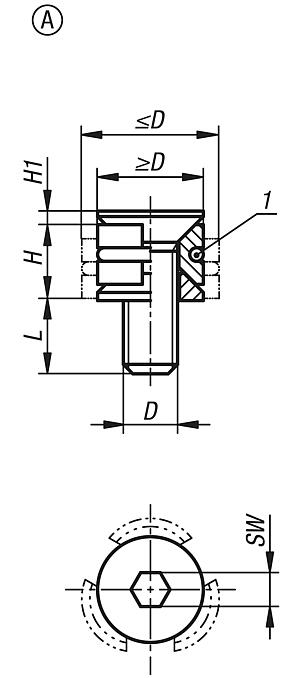

Centring clamp with pull-down effect.Drawing reference:Form A: with countersunk screw

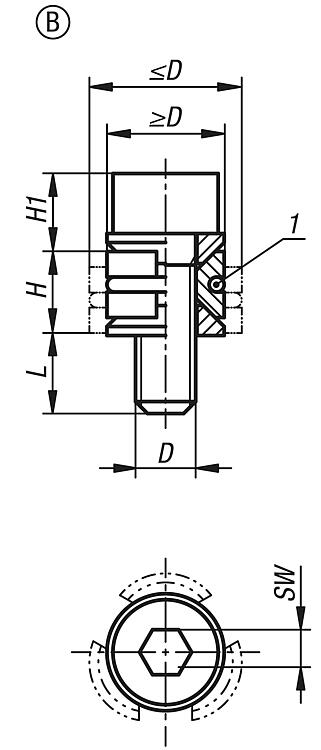

Form B: with cap screw
Dimension H refers to the height at ≥D.
Dimension L refers to the length at ≤D
1) O-ring
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Form | D=Thread | D
min. | D
max. | H | H1 | L | SW | Clamping
force
max. kN | Tightening
torque
Nm | CAD | Acc. | Price | Order |
|---|
| 03164-10804 | A | M4x12 | 8 | 10,3 | 5,5 | 0,9 | 7,3 | 2,5 | 0,9 | 2,1 |  | | on request | | | 03164-11005 | A | M5X15 | 10 | 12,3 | 6,4 | 1,1 | 9,1 | 3 | 1,5 | 4,3 | | | on request | | | 03164-11206 | A | M6X18 | 12 | 16,3 | 8,6 | 1,3 | 11,2 | 4 | 2,1 | 7,3 | | | on request | | | 03164-11608 | A | M8X25 | 16 | 22 | 11,5 | 1,6 | 16,2 | 5 | 4 | 18 | | | on request | |
|
| Order No. | Form | D=Thread | D
min. | D
max. | H | H1 | L | SW | Clamping
force
max. kN | Tightening
torque
Nm | CAD | Acc. | Price | Order |
|---|
| 03164-20804 | B | M4x12 | 8 | 10,3 | 5,5 | 5,1 | 7,1 | 3 | 1,5 | 2,7 | | | on request | | | 03164-21005 | B | M5X15 | 10 | 12,3 | 6,4 | 6,2 | 9 | 4 | 2,5 | 5,4 | | | on request | | | 03164-21206 | B | M6X18 | 12 | 16,3 | 8,6 | 7,9 | 10,6 | 5 | 5 | 9,1 | | | on request | | | 03164-21608 | B | M8X25 | 16 | 22 | 11,5 | 10,4 | 15,4 | 6 | 9 | 25 | | | on request | |
|
