        Centring clamps

Item description/product images

Show/filter all items

DescriptionMaterial:Body steel.
Bushes carbon steel.Version:Black oxidised.Note:These centring clamps enable workpieces to be centred on and lightly clamped in a bore. The clamps have a wide expansion range. The series covers a bore range of Ø12 to Ø30 mm. To increase the centring accuracy the clamps with internal thread have a centring spigot (D2) for a locating hole. The centring accuracy is ±0.2 mm.
Centring clamps with internal threads fit on M6 grid systems (see illustration).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03165 Centring clamps

316 kB

Drawings (total overview)

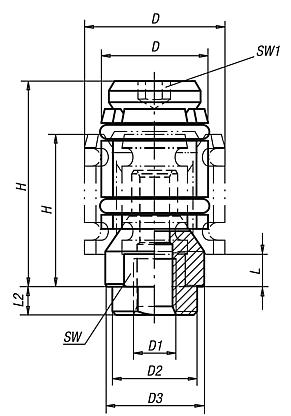

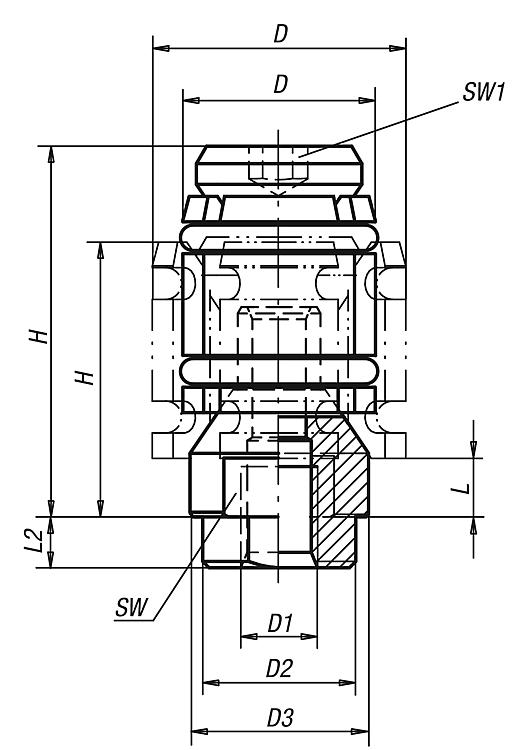

Centring clamps with internal threads

More information

Drawings

Item selection/filter

	internal thread	15 19 24 30	M6	4	12 15 19 24	12	11,4 14 17,8 23	22 24,5 26 32	27,5 32 35 44,5	4,8 4,5 7	9 12 15 19	2,5 4 5	1,5 2,5 4 4,5	2,2 6 10				Reset
Order No.	Thread type	D	D1	L2	D min.	D2	D3	H min.	H max.	L min.	SW	SW1	Clamping force max. kN	Tightening torque max. Nm	CAD	Acc.	Price	Order
03165-0615	internal thread	15	M6	4	12	12	11,4	22	27,5	4,8	9	2,5	1,5	2,2			on request
03165-0619	internal thread	19	M6	4	15	12	14	24,5	32	4,8	12	4	2,5	6			on request
03165-0624	internal thread	24	M6	4	19	12	17,8	26	35	4,5	15	5	4	10			on request
03165-0630	internal thread	30	M6	4	24	12	23	32	44,5	7	19	5	4,5	10			on request

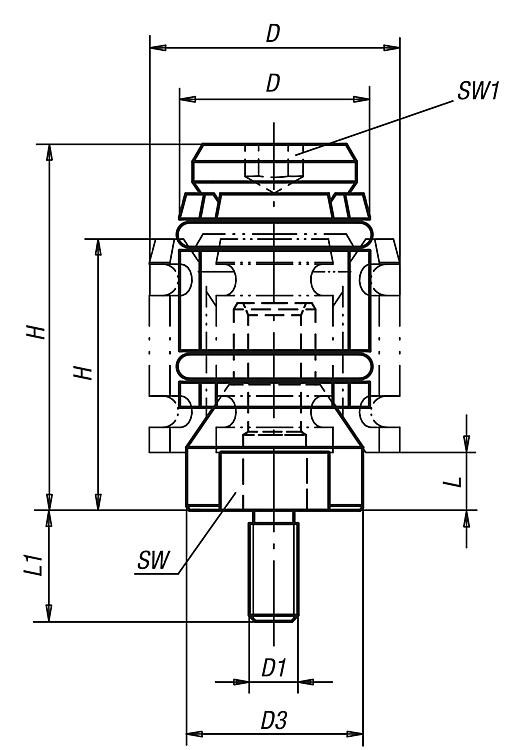

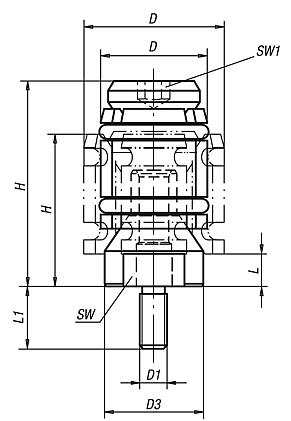

Centring clamps with external thread

More information

Drawings

Item selection/filter

	external thread	15 19 24 30	M6 M8	12 16	12 15 19 24	11,4 14 17,8 23	22 24,5 26 32	27,5 32 35 44,5	4,8 4,5 7	9 12 15 19	2,5 4 5	1,5 2,5 4 4,5	2,2 6 10				Reset
Order No.	Thread type	D	D1	L1	D min.	D3	H min.	H max.	L min.	SW	SW1	Clamping force max. kN	Tightening torque max. Nm	CAD	Acc.	Price	Order
03165-061215	external thread	15	M6	12	12	11,4	22	27,5	4,8	9	2,5	1,5	2,2			on request
03165-061219	external thread	19	M6	12	15	14	24,5	32	4,8	12	4	2,5	6			on request
03165-081624	external thread	24	M8	16	19	17,8	26	35	4,5	15	5	4	10			on request
03165-081630	external thread	30	M8	16	24	23	32	44,5	7	19	5	4,5	10			on request
