03177Positive clamping system for self-installation |
go back |
|

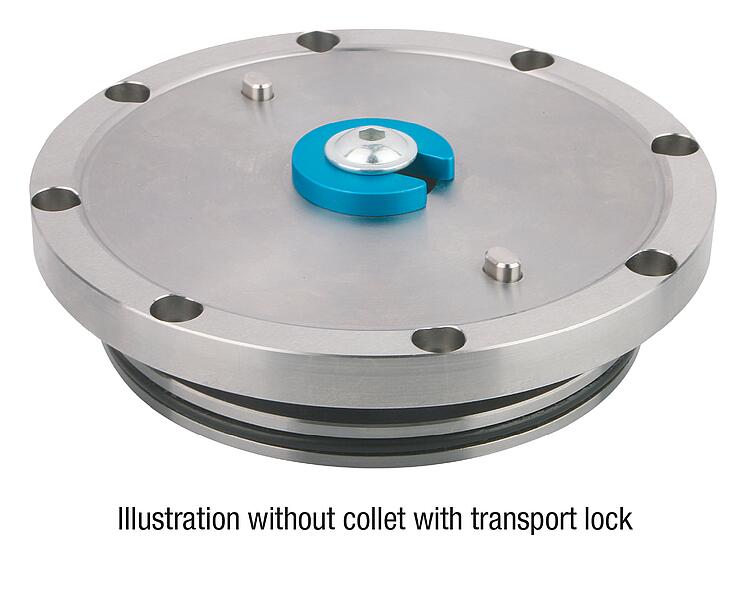

Item description/product images |
|
|
DescriptionMaterial:Flange plate, pistons and body steel.
Seals NBR.
Screws DIN EN ISO 4762 grade 8.8.
Collet aluminium.Version:Flange plate, piston and body rust-resistant, bright.
Screws electro zinc-plated.
Collet red or clear anodised.Note:The machinable collet system is suitable for mounting on fixtures and clamping systems. Collets for external and internal clamping can be mounted on the flange plate. The contour of the workpiece to be clamped is machined into the collet. Free-form and asymmetrical contours can be clamped.
The integrated spring package generates a clamping force of 5.8 kN. The clamping force can be raised to 43.5 kN by pneumatic post-clamping. The clamp is released by blowing compressed air onto the lower piston surface pushing the piston upwards and releasing the clamping force on the collet.
Clamping travel 0.2 mm.
Repeat accuracy < 0.01 mm.

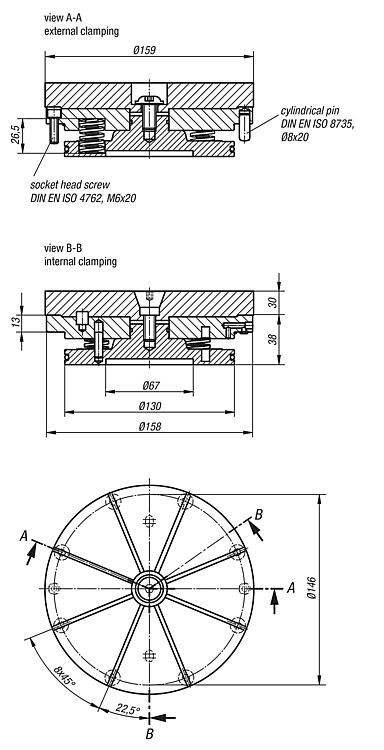

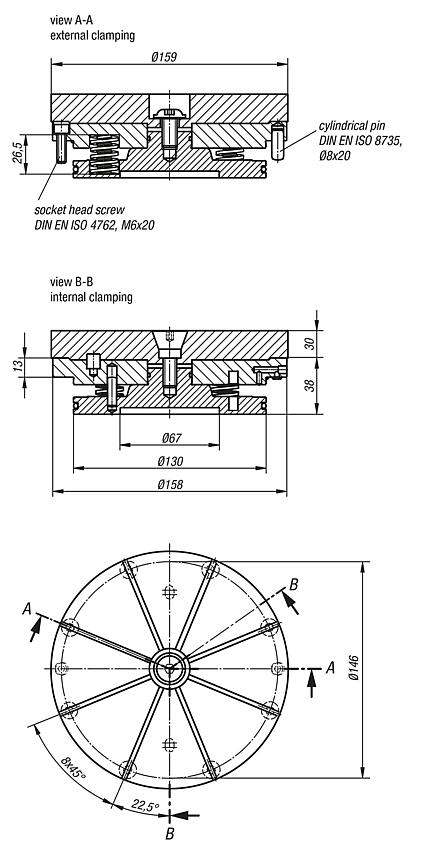

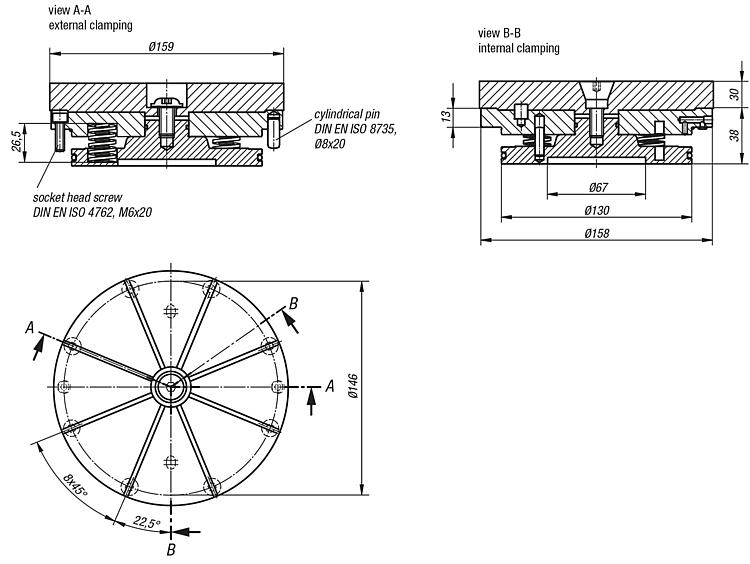

Installation dimensions on request.
Accessory:Collet for external or internal clamping 03179 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Version 2 | Clamping range
min. - max. | Milling depth
min./max. | Workpiece weight
max. (kg) | CAD | Acc. | Price | Order |
|---|
| 03177-116030 | for external clamping | Ø 30 - Ø 140 | 1-20 | 25 |  | | on request | | | 03177-216030 | for internal clamping | Ø 30 - Ø 140 | 1-20 | 25 | | | on request | |
