        Cam-action indexing plungers, Form B, without grip cap, with nut

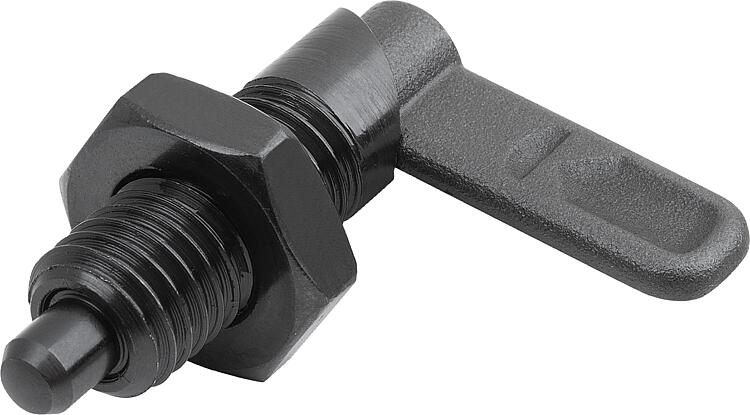

Item description/product images

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Threaded sleeve and indexing pin free-cutting steel.
Spring 1.4310.Version:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.Advantages:Turning the grip through 180° retracts the pin.
Mounted via the external thread.On request:Special versions.
Accessory:Mounting bracket 03099.
Positioning bushes 03099-50, 03099-60, 03099-61.
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-11_B Cam-action indexing plungers, Form B, without grip cap, with nut

184 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	L3	B	B1	H	SW	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03099-11-050410	B	4	M10	10	38,5	25	20	9	3	6	17	1	8	14	on request
03099-11-0504101	B	4	M10x1	10	38,5	25	20	9	3	6	17	1	8	14	on request
03099-11-050510	B	5	M10	10	38,5	25	20	9	3	6	17	1,3	8	14	on request
03099-11-0505101	B	5	M10x1	10	38,5	25	20	9	3	6	17	1,3	8	14	on request
03099-11-050610	B	6	M10	10	38,5	25	20	9	3	6	17	1,8	8	14	on request
03099-11-0506101	B	6	M10x1	10	38,5	25	20	9	3	6	17	1,8	8	14	on request
03099-11-050512	B	5	M12	12	47,4	30	25	10,8	3,6	8	19	1,3	8	15	on request
03099-11-0505121	B	5	M12x1,5	12	47,4	30	25	10,8	3,6	8	19	1,3	8	15	on request
03099-11-050612	B	6	M12	12	47,4	30	25	10,8	3,6	8	19	1,8	8	15	on request
03099-11-0506121	B	6	M12x1,5	12	47,4	30	25	10,8	3,6	8	19	1,8	8	15	on request
03099-11-050812	B	8	M12	12	47,4	30	25	10,8	3,6	8	19	2,3	8	15	on request
03099-11-0508121	B	8	M12x1,5	12	47,4	30	25	10,8	3,6	8	19	2,3	8	15	on request
03099-11-050616	B	6	M16	16	61,2	40	32	14,4	4,8	10	24	1,8	15	35	on request
03099-11-0506161	B	6	M16x1,5	16	61,2	40	32	14,4	4,8	10	24	1,8	15	35	on request
03099-11-050816	B	8	M16	16	61,2	40	32	14,4	4,8	10	24	2,3	15	35	on request
03099-11-0508161	B	8	M16x1,5	16	61,2	40	32	14,4	4,8	10	24	2,3	15	35	on request
03099-11-051016	B	10	M16	16	61,2	40	32	14,4	4,8	10	24	2,8	15	35	on request
03099-11-0510161	B	10	M16x1,5	16	61,2	40	32	14,4	4,8	10	24	2,8	15	35	on request
03099-11-050820	B	8	M20	20	71	50	35	18	6	12	30	2,3	20	60	on request
03099-11-0508201	B	8	M20x1,5	20	71	50	35	18	6	12	30	2,3	20	60	on request
03099-11-051020	B	10	M20	20	71	50	35	18	6	12	30	2,8	20	60	on request
03099-11-0510201	B	10	M20x1,5	20	71	50	35	18	6	12	30	2,8	20	60	on request
03099-11-051220	B	12	M20	20	71	50	35	18	6	12	30	3	20	60	on request
03099-11-0512201	B	12	M20x1,5	20	71	50	35	18	6	12	30	3	20	60	on request
