        Spring plungers with hexagon socket and thrust pin, long version

Item description/product images

DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidised.

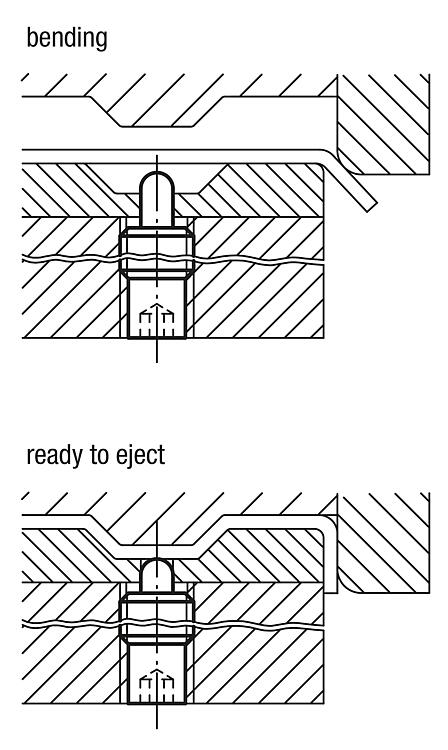

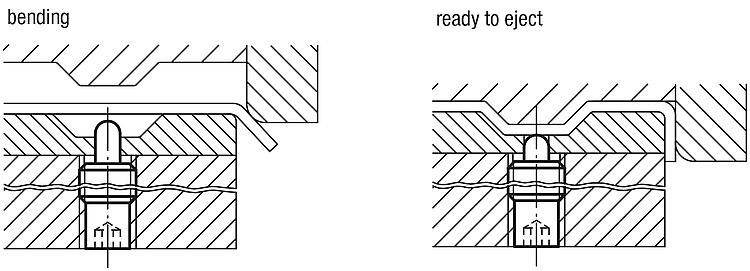

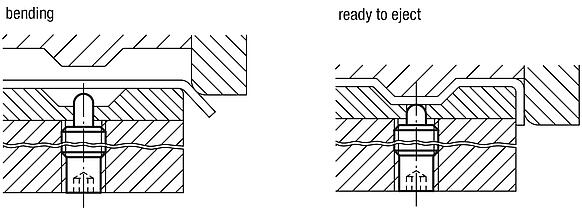

Thrust pin hardened.Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction.Drawing reference:

1) grub screw glued in

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03040 Spring plungers with hexagon socket and thrust pin, long version

272 kB

Drawings

Item selection/filter

Order No.	D	D1	D2	L	L1	H	T	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Order No. Assembly key	Price
03040-608X30	M8	3,5	6,2	30	10	6	-	1,4	1,2	2,5	8	20	03040-908	on request
03040-608X40	M8	3,5	6,2	40	20	8	-	1,4	1,2	2,5	10	28	03040-908	on request
03040-608X50	M8	3,5	6,2	50	30	10	-	1,4	1,2	2,5	12	38	03040-908	on request
03040-608X60	M8	3,5	6,2	60	40	15	-	1,4	1,2	2,5	15	45	03040-908	on request
03040-610X40	M10	4	8	40	10	8	-	1,4	1,6	3	12	30	03040-910	on request
03040-610X50	M10	4	8	50	20	10	-	1,4	1,6	3	16	46	03040-910	on request
03040-610X60	M10	4	8	60	30	15	-	1,4	1,6	3	20	55	03040-910	on request
03040-610X80	M10	4	8	80	50	20	-	1,4	1,6	3	25	65	03040-910	on request
03040-612X50	M12	6	9,6	50	20	10	-	2	2	4	20	50	03040-912	on request
03040-612X60	M12	6	9,6	60	30	15	-	2	2	4	25	76	03040-912	on request
03040-612X80	M12	6	9,6	80	50	20	-	2	2	4	35	102	03040-912	on request
03040-612X100	M12	6	9,6	100	70	25	-	2	2	4	40	102	03040-912	on request
03040-616X60	M16	7,5	13,4	60	30	12	-	2,5	2,5	5	30	64	03040-916	on request
03040-616X80	M16	7,5	13,4	80	50	20	-	2,5	2,5	5	30	110	03040-916	on request
03040-616X100	M16	7,5	13,4	100	70	30	-	2,5	2,5	5	30	120	03040-916	on request
03040-616X120	M16	7,5	13,4	120	90	40	-	2,5	2,5	5	20	130	03040-916	on request
