        Spring plungers with hex socket and thrust pin, steel, with thread lock

Item description/product images

Show/filter all items

DescriptionMaterial:Sleeve in steel grade 5.8;
thrust pin in steel.
Spring grade D spring steel wire.

Thread lock nylon.Version:Black oxidised.
Thrust pin hardened.Drawing reference:

L2 = ca. two full threads

1) grub screw glued-in

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03041 Spring plungers with hex socket and thrust pin, steel, with thread lock

214 kB

Drawings (total overview)

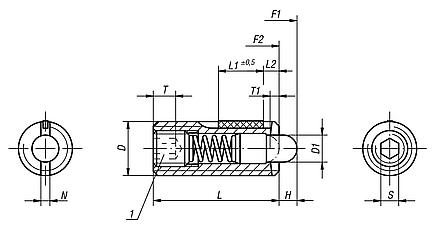

Spring plungers with hex socket and thrust pin, standard spring force, with thread lock

More information

Drawings

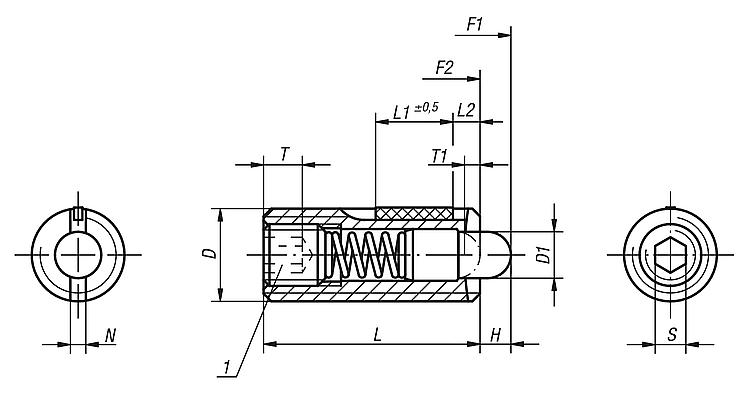

Spring plungers with hex socket and thrust pin, standard spring force, with thread lock

Item selection/filter

Order No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Order No. Assembly key	Price
03041-05	M5	2,4	2,3	18	7	0,8	0,8	1,5	6	20	0,12	0,08	03040-905	on request
03041-06	M6	2,7	2,5	20	7	1	1	2	7	20	0,45	0,22	03040-906	on request
03041-08	M8	3,5	3	22	8	1,4	1,2	2,5	9	35	1,05	0,37	03040-908	on request
03041-10	M10	4	3	22	9	1,4	1,6	3	9	35	1,3	0,6	03040-910	on request
03041-12	M12	6	4	28	10	2	2	4	12	55	2	1,3	03040-912	on request
03041-16	M16	7,5	5	32	14	2,5	2,5	5	45	100	3,9	3	03040-916	on request

Spring plungers with hex socket and thrust pin, light spring force, with thread lock

More information

Drawings

Spring plungers with hex socket and thrust pin, light spring force, with thread lock

Item selection/filter

Order No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Order No. Assembly key	Price
03041-105	M5	2,4	2,3	18	7	0,8	0,8	1,5	3	10	0,12	0,08	03040-905	on request
03041-106	M6	2,7	2,5	20	7	1	1	2	3	9	0,45	0,22	03040-906	on request
03041-108	M8	3,5	3	22	8	1,4	1,2	2,5	4	16	1,05	0,37	03040-908	on request
03041-110	M10	4	3	22	9	1,4	1,6	3	4	16	1,3	0,6	03040-910	on request
03041-112	M12	6	4	28	10	2	2	4	5	27	2	1,3	03040-912	on request
03041-116	M16	7,5	5	32	14	2,5	2,5	5	20	45	3,9	3	03040-916	on request

Spring plungers with hex socket and thrust pin, heavy spring force, with thread lock

More information

Drawings

Spring plungers with hex socket and thrust pin, heavy spring force, with thread lock

Item selection/filter

Order No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Order No. Assembly key	Price
03041-205	M5	2,4	2,3	18	7	0,8	0,8	1,5	11	29	0,12	0,08	03040-905	on request
03041-206	M6	2,7	2,5	20	7	1	1	2	14	37	0,45	0,22	03040-906	on request
03041-208	M8	3,5	3	22	8	1,4	1,2	2,5	22	65	1,05	0,37	03040-908	on request
03041-210	M10	4	3	22	9	1,4	1,6	3	19	70	1,3	0,6	03040-910	on request
03041-212	M12	6	4	28	10	2	2	4	25	85	2	1,3	03040-912	on request
03041-216	M16	7,5	5	32	14	2,5	2,5	5	60	150	3,9	3	03040-916	on request
