        Spring plungers with hex socket and POM thrust pin, steel, with thread lock

Item description/product images

Show/filter all items

DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin POM.
Spring grade D spring steel wire.

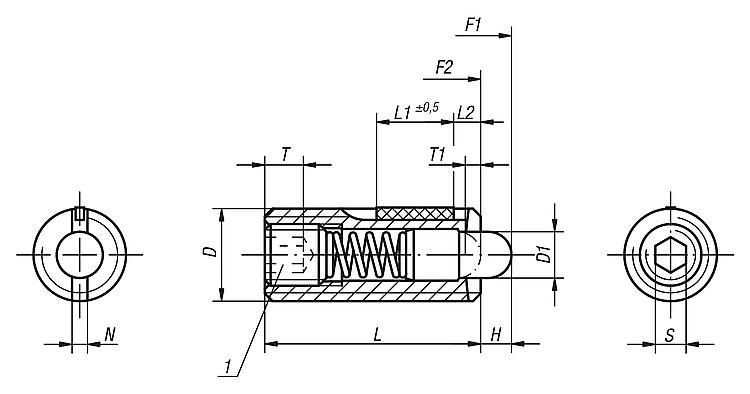

Thread lock nylon.Version:Black oxidised.Drawing reference:

L2 = ca. two full threads

1) grub screw glued-in

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03051 Spring plungers with hex socket and POM thrust pin, steel, with thread lock

212 kB

Drawings (total overview)

Spring plungers with hex socket and thrust pin, standard spring force, with thread lock

More information

Drawings

Spring plungers with hex socket and thrust pin, standard spring force, with thread lock

Item selection/filter

Order No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Order No. Assembly key	Price
03051-05	M5	2,4	2,3	18	7	0,8	0,8	1,5	6	20	0,12	0,08	03040-905	on request
03051-06	M6	2,7	2,5	20	7	1	1	2	7	20	0,45	0,22	03040-906	on request
03051-08	M8	3,5	3	22	8	1,4	1,2	2,5	9	35	1,05	0,37	03040-908	on request
03051-10	M10	4	3	22	9	1,4	1,6	3	9	35	1,3	0,6	03040-910	on request
03051-12	M12	6	4	28	10	2	2	4	12	55	2	1,3	03040-912	on request
03051-16	M16	7,5	5	32	14	2,5	2,5	5	45	100	3,9	3	03040-916	on request

Spring plungers with hex socket and thrust pin, light spring force, with thread lock

More information

Drawings

Spring plungers with hex socket and thrust pin, light spring force, with thread lock

Item selection/filter

Order No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Order No. Assembly key	Price
03051-105	M5	2,4	2,3	18	7	0,8	0,8	1,5	3	10	0,12	0,08	03040-905	on request
03051-106	M6	2,7	2,5	20	7	1	1	2	3	9	0,45	0,22	03040-906	on request
03051-108	M8	3,5	3	22	8	1,4	1,2	2,5	4	16	1,05	0,37	03040-908	on request
03051-110	M10	4	3	22	9	1,4	1,6	3	4	16	1,3	0,6	03040-910	on request
03051-112	M12	6	4	28	10	2	2	4	5	27	2	1,3	03040-912	on request
03051-116	M16	7,5	5	32	14	2,5	2,5	5	20	45	3,9	3	03040-916	on request
