03065Spring plungers with detent ring |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve, spring and ball stainless steel.
O-ring NBR.Version:Sleeve bright.
Ball hardened, bright.

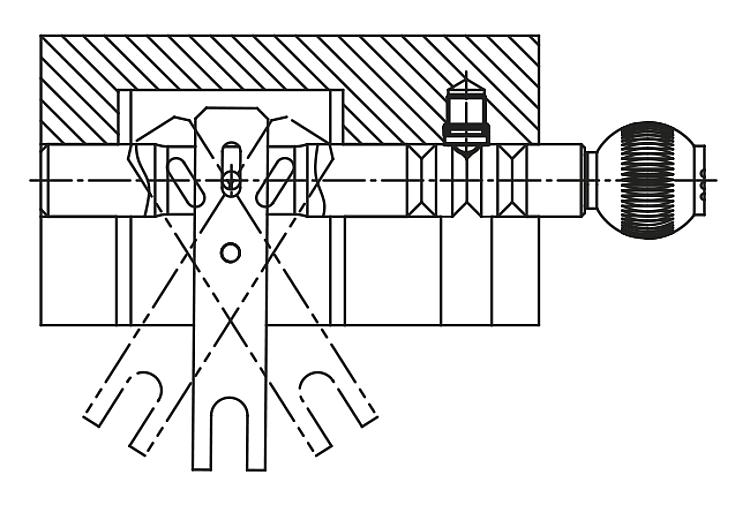

O-ring black.Note:These spring plungers with O-ring are suitable for overhead installation or for installing in difficult to access positions.
They can be pressed into the location hole by hand or using simple assembly tools. The O-ring holds the plunger in place and prevents it falling out. Other components can be easily installed without the need for further assembly aids.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

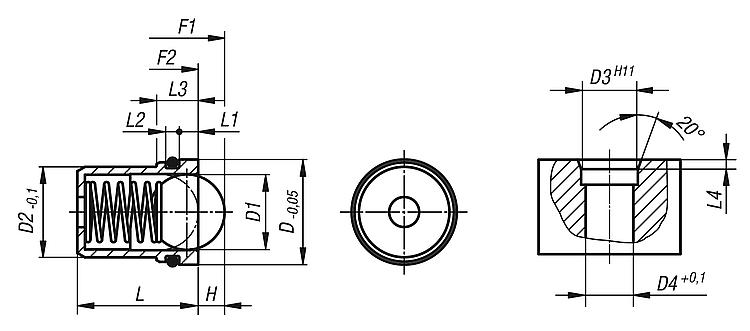

| D | D1 | D2 | D3 | D4 | H | L | L1 | L2 | L3 | L4 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03065-05 | 4,95 | 3 | 4 | 5 | 4,1 | 0,8 | 5 | 1 | 0,7 | 2,3 | 0,7 | 3 | 7 |  | | on request | | | 03065-06 | 5,95 | 4 | 5 | 6 | 5,1 | 1 | 6 | 1 | 0,7 | 2,3 | 0,7 | 4 | 7 | | | on request | | | 03065-08 | 7,95 | 5 | 6 | 8 | 6,1 | 1,5 | 7 | 1,5 | 1,2 | 3,7 | 1 | 6 | 12 | | | on request | | | 03065-10 | 9,95 | 6,5 | 8 | 10 | 8,1 | 1,8 | 9 | 2 | 1,2 | 4,2 | 1,5 | 6 | 12 | | | on request | | | 03065-12 | 11,95 | 8 | 10 | 12 | 10,1 | 2,7 | 13,5 | 2,5 | 1,8 | 5,3 | 2 | 10 | 20 | | | on request | | | 03065-14 | 13,95 | 10 | 12 | 14 | 12,1 | 3,5 | 16 | 2,5 | 1,8 | 5,5 | 2 | 15 | 25 | | | on request | |
