03075-12Door stops plastic for aluminium profile with buffer or with... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Door stop fibreglass reinforced PA.
Buffer EPDM.
Retaining plate steel.
Slot key die-cast zinc.
Screw steel.
Locking piece fibreglass reinforced PA.Version:Steel electro zinc-plated.Note:These door stops can be used to close doors or hatches mounted on aluminium profiles softly or magnetically.Supplied withDoor stop with buffer:
1x door stop,
1x slot key,
1x M5x14 ISO 7991 screw,
1x locking piece.
Door stop with magnetic catch:
1x door stop,
1x retaining plate,
1x slot key,
2x M5x14 ISO 7991 screws,
1x locking piece.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

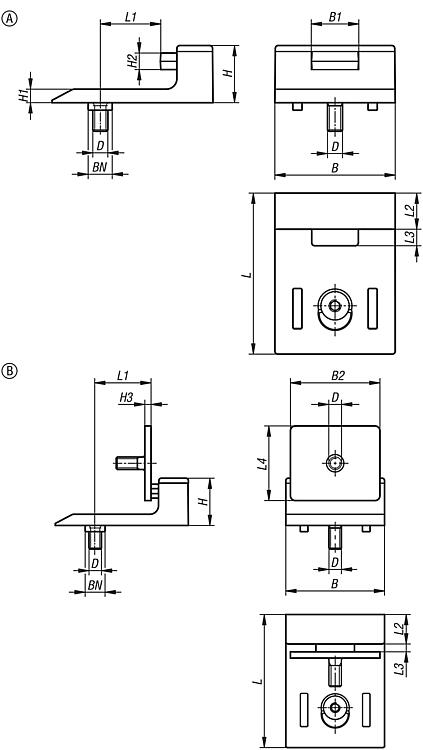

| Order No. | Version 1 | Form | Component
material | Surface finish
component | B
| B1 | B2 | D | H | H1 | H2 | H3 | L | L1 | L2 | L3 | L4 | BN=Slot width | Shore grade | CAD | Acc. | Price | Order |
|---|
| 03075-12-0 | with damping | A | EPDM | - | 40 | 15 | - | M5 | 19 | 4,5 | 5 | - | 53,5 | 20/22,5 | 12 | 5 | - | 8/10 | - |  | | on request | | | 03075-12-1 | with magnetic catch | B | steel | galvanised | 40 | - | 36 | M5 | 19 | 4,5 | - | 2,5 | 53,5 | 20/22,5 | 12 | 3 | 30 | 8/10 | 70 | | | on request | |
