        Spring sleeves steel or stainless steel

Item description/product images

Show/filter all items

DescriptionMaterial:

Sleeve, steel or 1.4303 stainless steel.
Spring, 1.4310 stainless steel wire.

Version:Sleeve, steel nickel-plated, stainless steel bright.
Spring, bright.Note:Spring sleeves are mainly used as indexing and positioning elements.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03078 Spring sleeves

175 kB

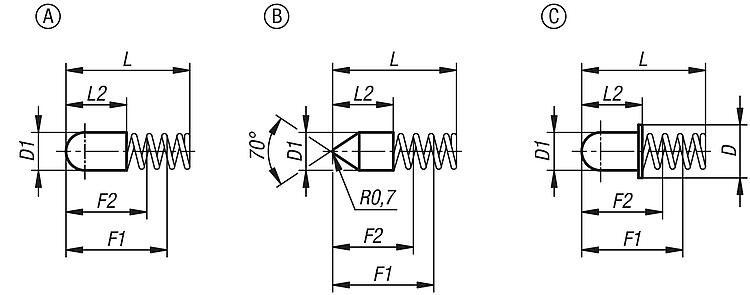

Drawings (total overview)

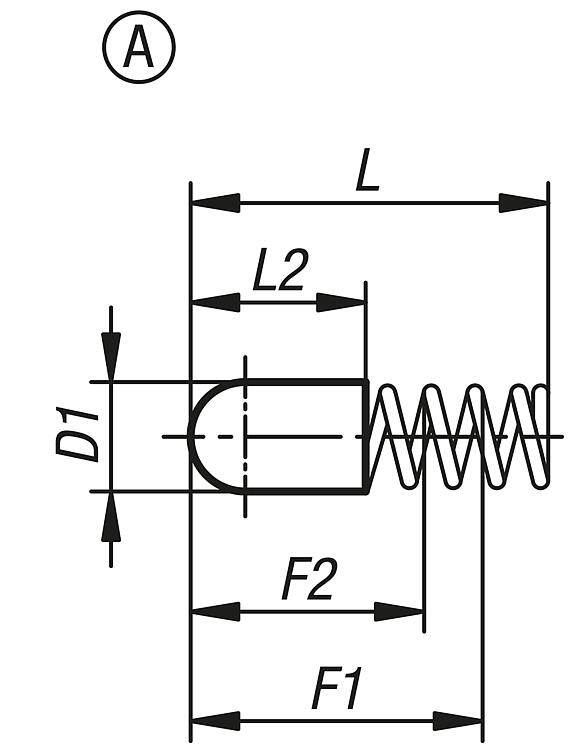

Spring sleeves, Form A

More information

Drawings

Item selection/filter

	steel stainless steel	A	2,2 2,6 3 3,4 4 5	16 8 12 15 14	7,8 3,8 6 8,5 7,3 8	12 6,5 9 13	10,5 5,2 8,7 10,7 7,8 8,2 9 10,4 10,6	2,2 1,1 6,2 4,8 5 5,9 8	3 2 6,8 8,4 7 13,3 12,3 15 8,6	0,53 0,7 2 1,6 1,69 1,95 2,45 2,7				Reset
Order No.	Main material	Form	D1	L	L2	L by F1	L by F2	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Spring stiffness N/mm	CAD	Acc.	Price	Order
03078-112216	steel	A	2,2	16	7,8	12	10,5	2,2	3	0,53			on request
03078-112608	steel	A	2,6	8	3,8	6,5	5,2	1,1	2	0,7			on request
03078-113012	steel	A	3	12	6	9	8,7	6,2	6,8	2			on request
03078-113016	steel	A	3	16	8,5	13	10,7	4,8	8,4	1,6			on request
03078-113412	steel	A	3,4	12	6	9	7,8	5	7	1,69			on request
03078-113415	steel	A	3,4	15	7,3	12	8,2	5,9	13,3	1,95			on request
03078-114014	steel	A	4	14	8	12	9	5	12,3	2,45			on request
03078-115016	steel	A	5	16	8	13	10,4	8	15	2,7			on request
03078-123016	stainless steel	A	3	16	8	13	10,6	4,8	8,6	1,6			on request

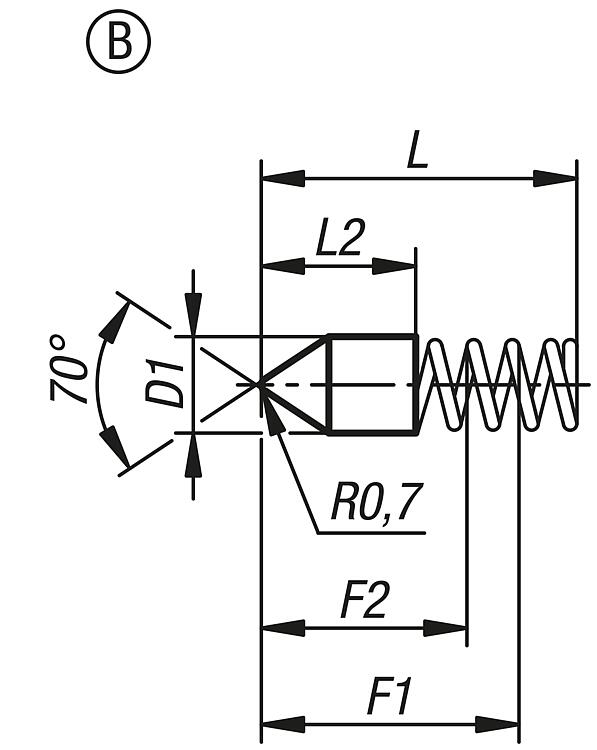

Spring sleeves, Form B

More information

Drawings

Item selection/filter

	steel	B	3	11 16	5 8,5	9 13	6,7 10,7	1,6 4,8	3,4 8,4	0,78 1,6				Reset
Order No.	Main material	Form	D1	L	L2	L by F1	L by F2	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Spring stiffness N/mm	CAD	Acc.	Price	Order
03078-213011	steel	B	3	11	5	9	6,7	1,6	3,4	0,78			on request
03078-213016	steel	B	3	16	8,5	13	10,7	4,8	8,4	1,6			on request

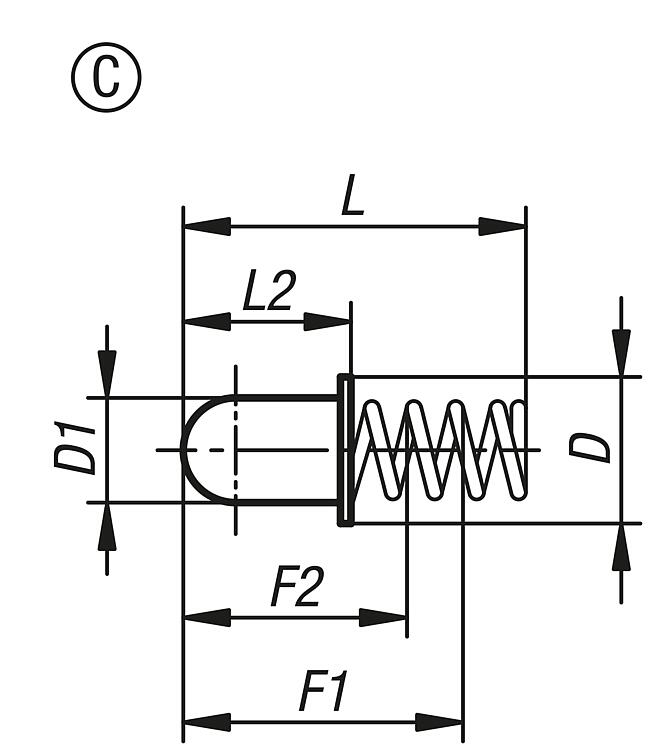

Spring sleeves, Form C

More information

Drawings

Item selection/filter

	stainless steel	C	4,1	3	13	7	10	8,9	5,3	7,2	1,75				Reset
Order No.	Main material	Form	D	D1	L	L2	L by F1	L by F2	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Spring stiffness N/mm	CAD	Acc.	Price	Order
03078-323013	stainless steel	C	4,1	3	13	7	10	8,9	5,3	7,2	1,75			on request
