Stop screw steel grade 10.9.

go back

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Stops
        Stop screw steel grade 10.9.

Item description/product images

Show/filter all items

DescriptionMaterial:Steel grade 10.9
(M3 8.8)Version:Stop screw black oxidised.
Nut electro zinc-plated.Note:Size M3 stop screw only available in grade 8.8.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03087 Stop screws

136 kB

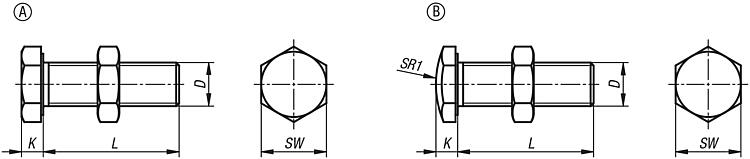

Drawings (total overview)

Stop screw, steel grade 10.9 with flat head

More information

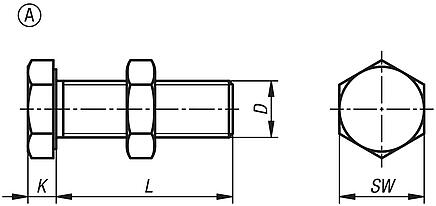

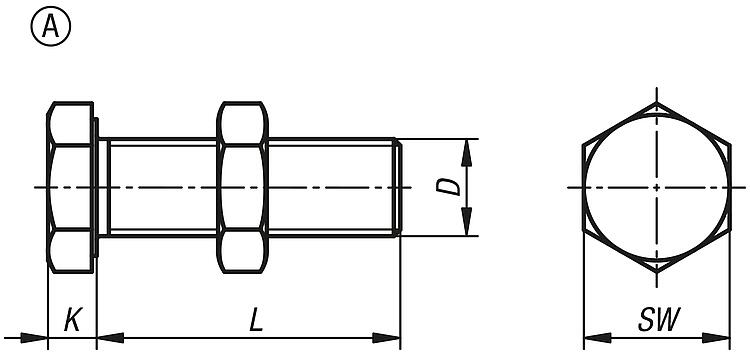

Drawings

Stop screw, steel grade 10.9 with flat head

Item selection/filter

	A	M3 M4 M5 M6 M8 M10 M12 M16	16 25 35 40 12 20 30 45 50 55 65 70 85 60	2 2,5 3,5 3,8 5 6 7 9,5	5,5 7 8 10 13 17 19 24				Reset
Order No.	Form	D	L	K	SW	CAD	Acc.	Price	Order
03087-10316	A	M3	16	2	5,5			on request
03087-10325	A	M3	25	2	5,5			on request
03087-10416	A	M4	16	2,5	7			on request
03087-10425	A	M4	25	2,5	7			on request
03087-10435	A	M4	35	2,5	7			on request
03087-10516	A	M5	16	3,5	8			on request
03087-10525	A	M5	25	3,5	8			on request
03087-10535	A	M5	35	3,5	8			on request
03087-10625	A	M6	25	3,8	10			on request
03087-10635	A	M6	35	3,8	10			on request
03087-10640	A	M6	40	3,8	10			on request
03087-10812	A	M8	12	5	13			on request
03087-10816	A	M8	16	5	13			on request
03087-10820	A	M8	20	5	13			on request
03087-10825	A	M8	25	5	13			on request
03087-10830	A	M8	30	5	13			on request
03087-10835	A	M8	35	5	13			on request
03087-10840	A	M8	40	5	13			on request
03087-10845	A	M8	45	5	13			on request
03087-10850	A	M8	50	5	13			on request
03087-10855	A	M8	55	5	13			on request
03087-10865	A	M8	65	5	13			on request
03087-10870	A	M8	70	5	13			on request
03087-10885	A	M8	85	5	13			on request
03087-11035	A	M10	35	6	17			on request
03087-11040	A	M10	40	6	17			on request
03087-11050	A	M10	50	6	17			on request
03087-11060	A	M10	60	6	17			on request
03087-11240	A	M12	40	7	19			on request
03087-11260	A	M12	60	7	19			on request
03087-11270	A	M12	70	7	19			on request
03087-11650	A	M16	50	9,5	24			on request
03087-11660	A	M16	60	9,5	24			on request
03087-11670	A	M16	70	9,5	24			on request

Stop screw, steel grade 10.9 with rounded head

More information

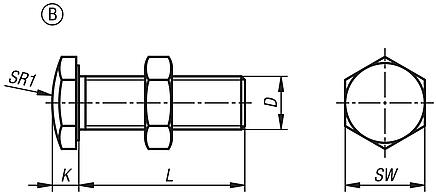

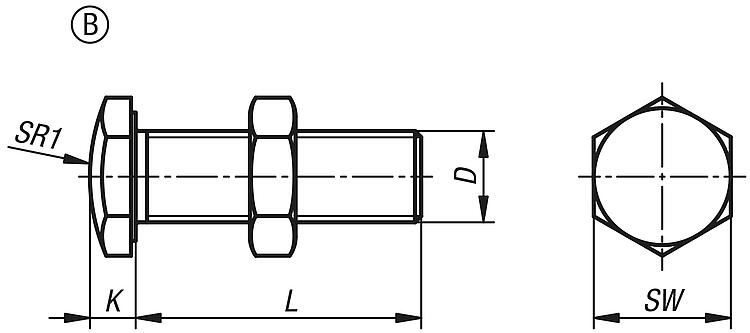

Drawings

Stop screw, steel grade 10.9 with rounded head

Item selection/filter

	B	M3 M4 M5 M6 M8 M10 M12 M16	16 25 35 40 12 20 30 45 50 55 65 70 85 60	2 2,5 3,5 3,8 5 6 7 9,5	5,5 7 8 10 13 17 19 24	10 12 15 20 30 35				Reset
Order No.	Form	D	L	K	SW	SR1	CAD	Acc.	Price	Order
03087-20316	B	M3	16	2	5,5	10			on request
03087-20325	B	M3	25	2	5,5	10			on request
03087-20416	B	M4	16	2,5	7	10			on request
03087-20425	B	M4	25	2,5	7	10			on request
03087-20435	B	M4	35	2,5	7	10			on request
03087-20516	B	M5	16	3,5	8	12			on request
03087-20525	B	M5	25	3,5	8	12			on request
03087-20535	B	M5	35	3,5	8	12			on request
03087-20625	B	M6	25	3,8	10	15			on request
03087-20635	B	M6	35	3,8	10	15			on request
03087-20640	B	M6	40	3,8	10	15			on request
03087-20812	B	M8	12	5	13	20			on request
03087-20816	B	M8	16	5	13	20			on request
03087-20820	B	M8	20	5	13	20			on request
03087-20825	B	M8	25	5	13	20			on request
03087-20830	B	M8	30	5	13	20			on request
03087-20835	B	M8	35	5	13	20			on request
03087-20840	B	M8	40	5	13	20			on request
03087-20845	B	M8	45	5	13	20			on request
03087-20850	B	M8	50	5	13	20			on request
03087-20855	B	M8	55	5	13	20			on request
03087-20865	B	M8	65	5	13	20			on request
03087-20870	B	M8	70	5	13	20			on request
03087-20885	B	M8	85	5	13	20			on request
03087-21035	B	M10	35	6	17	30			on request
03087-21040	B	M10	40	6	17	30			on request
03087-21050	B	M10	50	6	17	30			on request
03087-21060	B	M10	60	6	17	30			on request
03087-21240	B	M12	40	7	19	30			on request
03087-21260	B	M12	60	7	19	30			on request
03087-21270	B	M12	70	7	19	30			on request
03087-21650	B	M16	50	9,5	24	35			on request
03087-21660	B	M16	60	9,5	24	35			on request
03087-21670	B	M16	70	9,5	24	35			on request
