Cam clamps with end lock

04330

Cam clamps with end lock

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Cam clamps
        Cam clamps with end lock

Item description/product images

DescriptionMaterial:Cam QT steel 1.7220.
Clamp strap QT steel 1.1191.Version:Black oxidised.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04330 Cam clamps with end lock

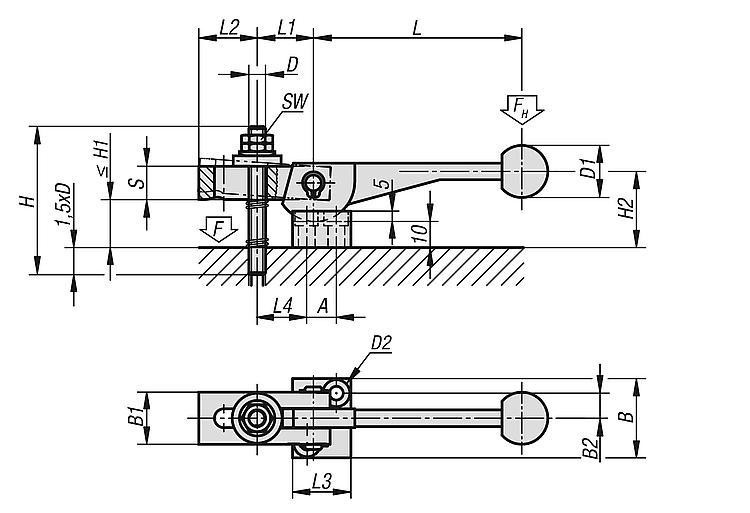

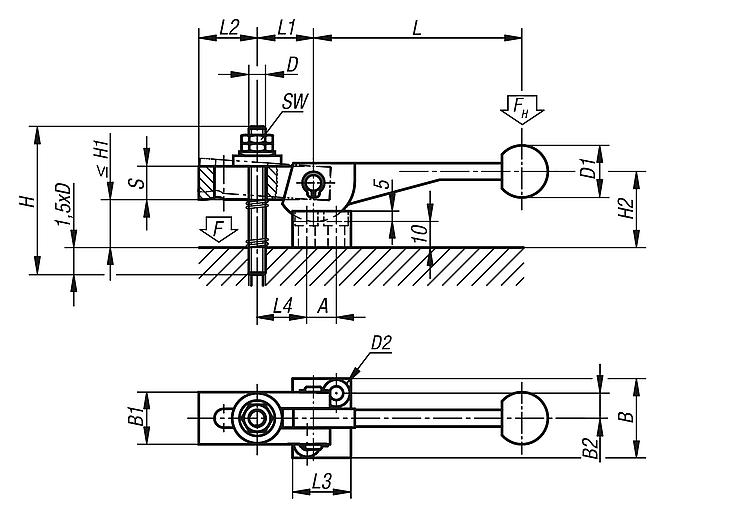

Drawings

Cam clamps with end lock

Item selection/filter

Order No.	L	L1	L2	L3	L4	B	B1	B2	S	H	H1 max.	H2	D	D1	D2	A	SW	CAD	Acc.	Price	Order
04330-08	104±2	27	28	28	27	38	25	12	16	70	25	34	M8	25	7	14	13			on request
04330-10	123±2	34	36	32	35	41	32	13,5	20	80	24	40	M10	30	7	16	17			on request
04330-12	146±3	43	45	37	45	43	40	14,5	25	100	31	48	M12	30	7	19	19			on request
