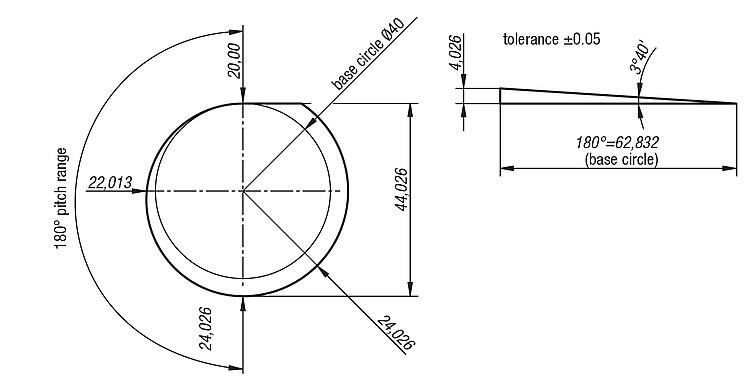

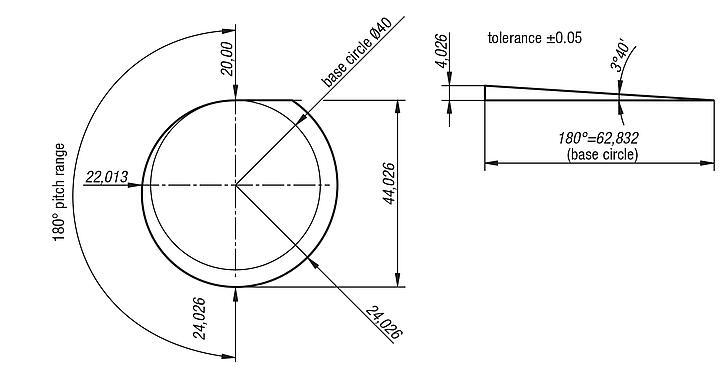

Item description/product images |
|
|
DescriptionMaterial:Profile steel 1.7131.Version:Saw cut and deburred.
Centre is centre-punched.
Start and end of spiral is marked.Note:Spiral cams are used where something must be self-locking clamped or secured.

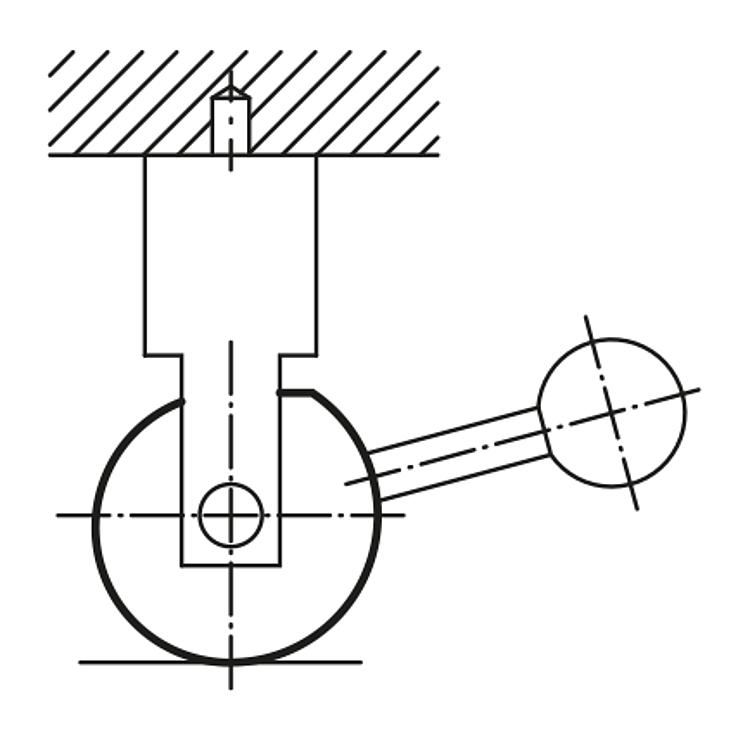

The cam is operated mechanically, pneumatically or hydraulically using a shaft through the centre or a lever fastened to the side. By pressure failure the self-locking effect is still operative leading to much higher operating safety by pneumatic and hydraulic clamping.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| base circle Ø | disc thickness | CAD | Acc. | Price | Order |
|---|
| 04360-14 | 40 | 14 |  | | on request | | | 04360-20 | 40 | 20 | | | on request | |
