DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised.Note:Pin-end straps can be used in conjunction with other fixturing elements, such as 04160, 02035, 02153. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

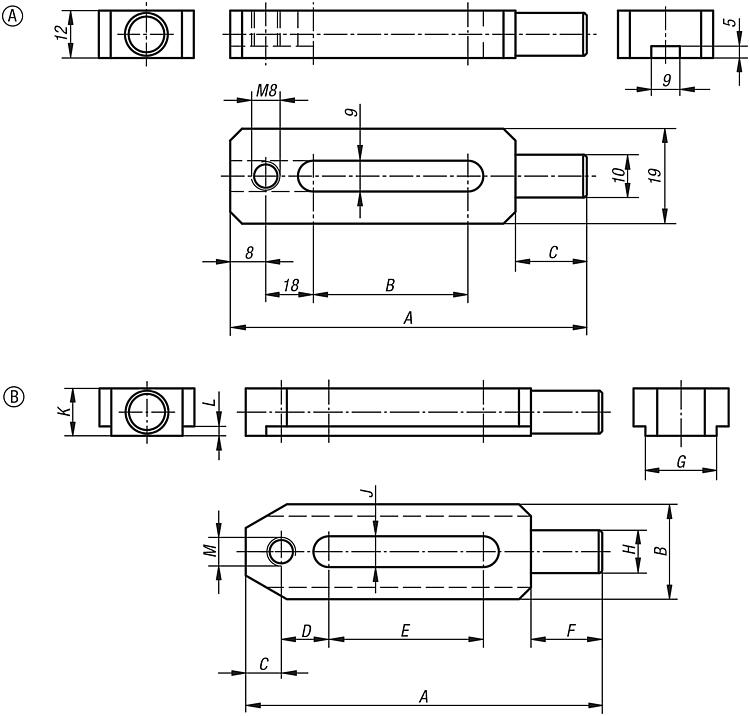

Drawings (total overview) |
| | | | | | | | Reset |
|---|
Order No.
| A | B | C | CAD | Acc. | Price | Order |
|---|

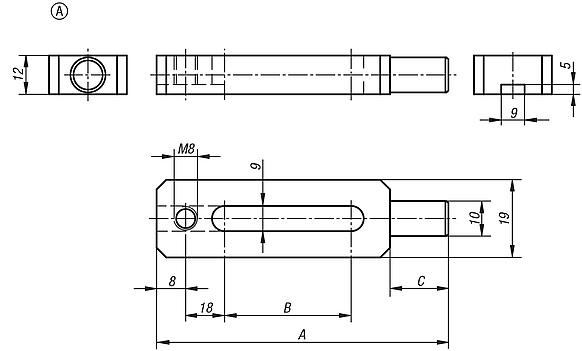

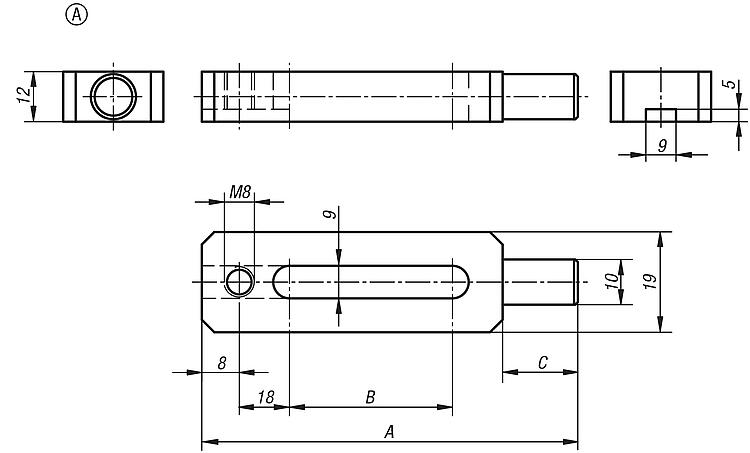

| 04152-08063 | 63 | 15 | 14 |  | | on request | | | 04152-08075 | 75 | 20 | 20 | | | on request | |
|
| | | | | | | | | | | | | | | | | Reset |
|---|
Order No.
| A | B | C | D | E | F | G | H | J | K | L | M | CAD | Acc. | Price | Order |
|---|

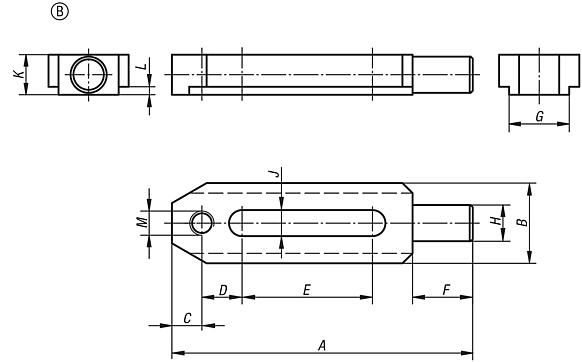

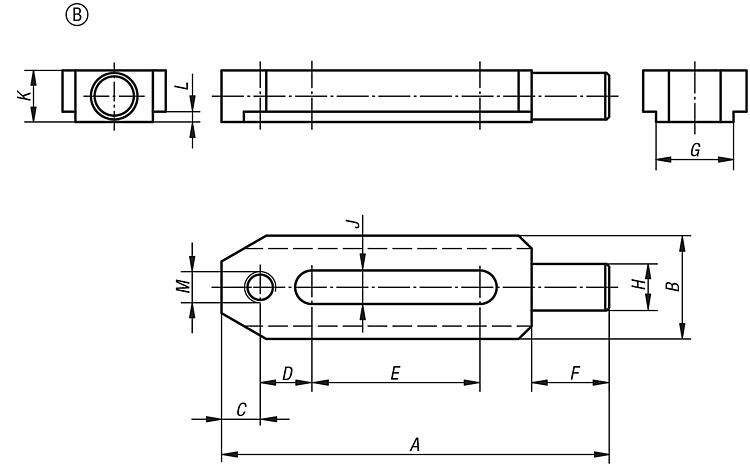

| 04152-12150 | 150 | 40 | 15 | 20 | 65 | 30 | 30 | 18 | 13 | 20 | 4 | M12 | | | on request | | | 04152-16190 | 190 | 50 | 20 | 25 | 80 | 36 | 40 | 24 | 18 | 28 | 5 | M16 | | | on request | |
|
