04155Clamping units, with pin-end clamp strap |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Carbon steel.Version:Body black oxidised.
Clamp strap and bolt tempered and black oxidised.Note:Both sides of the strap can be used for clamping workpieces. The Pin-End Clamps can be combined with other fixturing elements, such as 04160, 02035, 02153.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

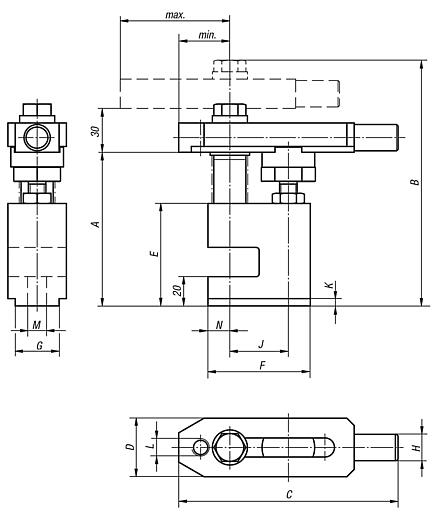

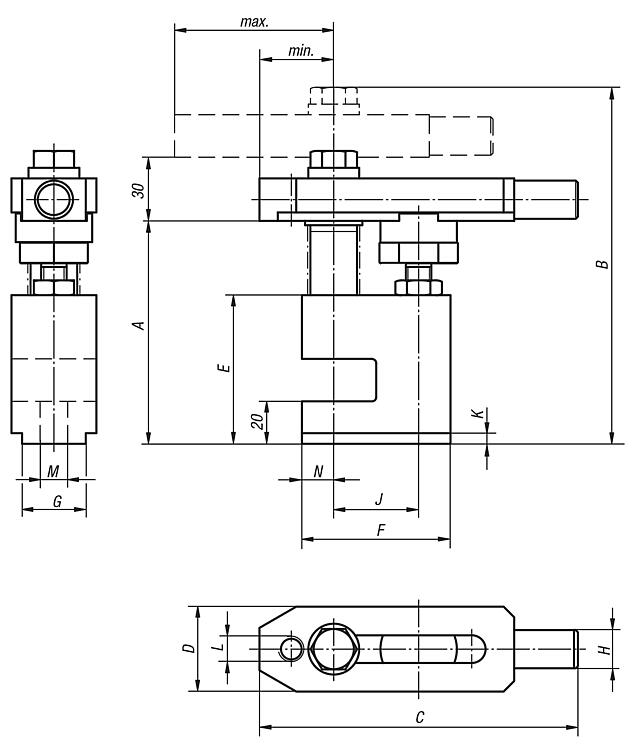

| A | B | C | D | E | F | G | H | J | K | L | M | N | min. | max. | CAD | Acc. | Price | Order |
|---|
| 04155-12105 | 105 | 168 | 150 | 40 | 70 | 70 | 30 | 18 | 40 | 5 | M12 | 13 | 15 | 35 | 75 |  | | on request | | | 04155-16110 | 110 | 188 | 190 | 50 | 75 | 90 | 40 | 24 | 50 | 5 | M16 | 17 | 20 | 45 | 95 | | | on request | |
