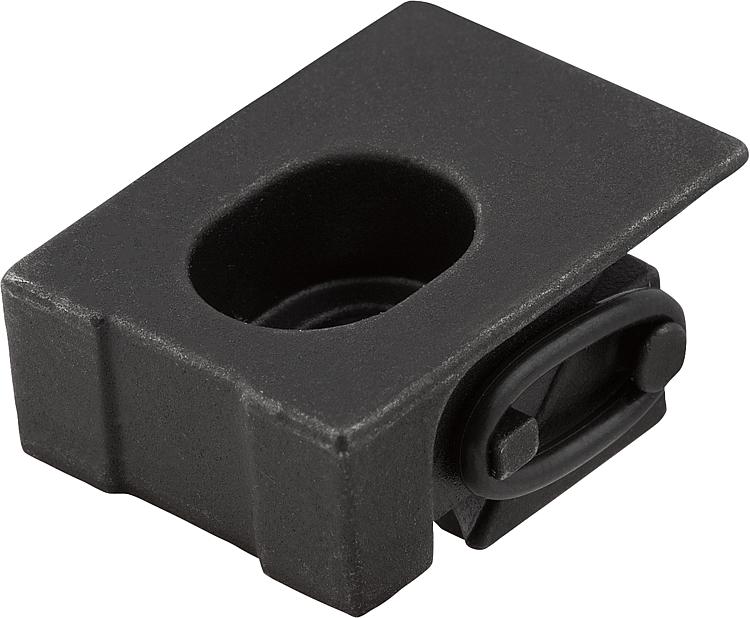

Flat clamp wide, Form B

04571_B

Flat clamp wide, Form B

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Clamping jaws Edge clamps Tension nuts and screws
        Flat clamps
        Flat clamp wide, Form B

Item description/product images

DescriptionMaterial:Carbon steel.Version:Hardened (33–39 HRC) and black oxidised.Note:Particularly low workpieces can be clamped using these flat clamps.
Clamping element with pull-down effect.
Clamping element and fixed block in one compact unit.Drawing reference:

Dimension L1 refers to clamped state.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04571_B Flat clamp wide, Form B

Drawings

Flat clamp wide, Form B

Item selection/filter

Order No.	Form	B	B1	D1	D2	G	H	H2	J	L	L1	L2	T	Clamping force max. kN	Tightening torque max. Nm	CAD	Acc.	Price	Order
04571-204	B	15	5	4	4	M4	7	5	2	20	9	8	6	2,5	2,7			on request
04571-205	B	19	7	5	5	M5	9	6	2,5	25	11	10	7	3,5	5,4			on request

Other items in this category

Flat clamp narrow, Form A

04571_A

Flat clamp narrow, Form A
