        Clamp straps open U DIN 6315, steel or aluminium

Item description/product images

Show/filter all items

DescriptionMaterial:Carbon steel or EN AW-7022.Version:Steel painted.
Aluminium bright.Note:When using spherical washers use the wide series 07420 Form G.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04110 Clamp straps open U DIN 6315, steel or aluminium

163 kB

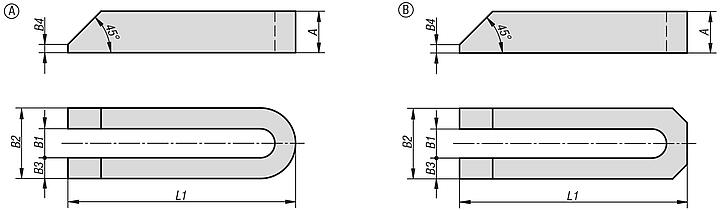

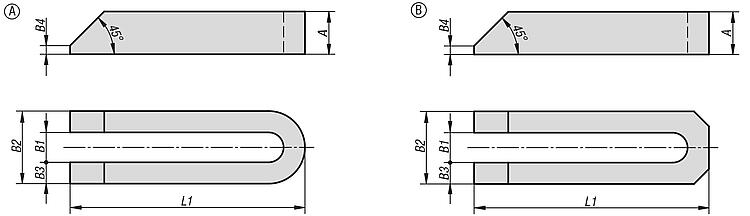

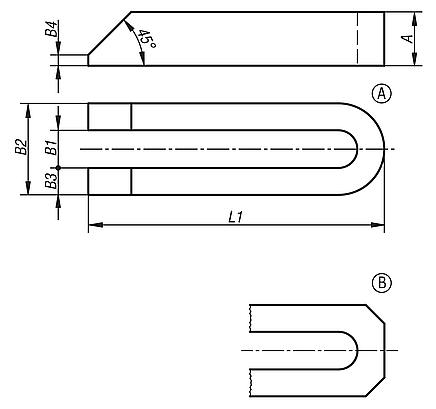

Drawings (total overview)

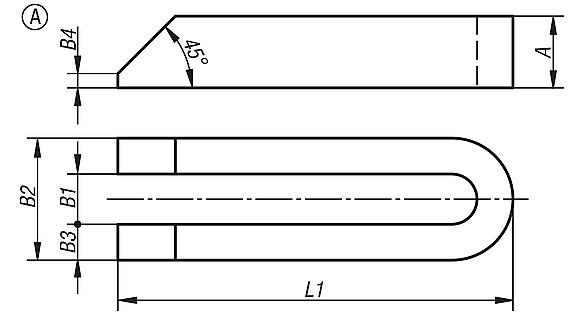

Clamp straps open U, DIN 6315, steel

More information

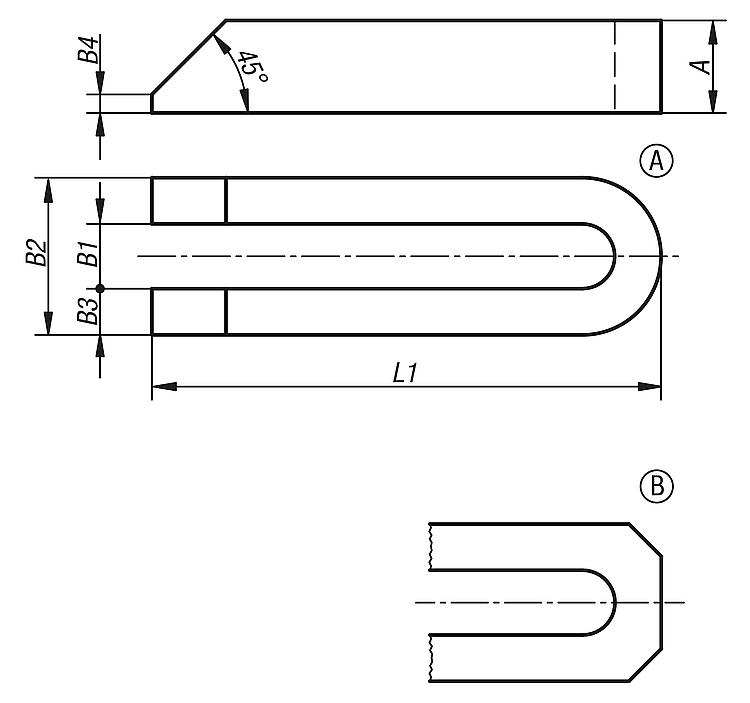

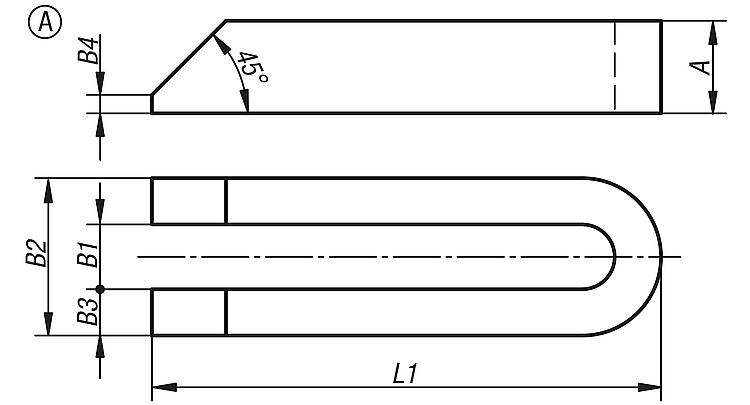

Drawings

Item selection/filter

Order No.	Main material	Form	L1	A	B1	B2	B3	B4	for screw	Price
04110-06	QT steel	A	60	12	6,6	18	6	3	M6	on request
04110-08	QT steel	A	80	15	9	25	8	4	M8	on request
04110-10	QT steel	A	100	20	11	31	10	5	M10	on request
04110-12	QT steel	A	125	25	14	38	12	6	M12/M14	on request
04110-121	QT steel	A	160	25	14	38	12	6	M12/M14	on request
04110-122	QT steel	A	200	25	14	38	12	6	M12/M14	on request
04110-16	QT steel	A	160	30	18	48	15	8	M16/M18	on request
04110-161	QT steel	A	200	30	18	48	15	8	M16/M18	on request
04110-162	QT steel	A	250	40	18	48	15	10	M16/M18	on request
04110-20	QT steel	A	200	40	22	52	15	10	M20/M22	on request
04110-201	QT steel	A	250	40	22	62	20	10	M20/M22	on request
04110-202	QT steel	A	315	40	22	62	20	10	M20/M22	on request
04110-24	QT steel	A	200	40	26	66	20	10	M24	on request
04110-241	QT steel	A	250	40	26	66	20	10	M24	on request
04110-242	QT steel	A	315	40	26	66	20	10	M24	on request
04110-301	QT steel	A	250	50	33	73	20	12	M30/M32	on request
04110-30	QT steel	A	315	50	33	73	20	12	M30/M32	on request
04110-302	QT steel	A	400	50	33	73	20	12	M30/M32	on request
04110-40	QT steel	A	400	60	40	100	30	12	M36	on request
04110-401	QT steel	A	600	60	40	100	30	12	M36	on request

Clamp straps open U, DIN 6315, aluminium

More information

Drawings

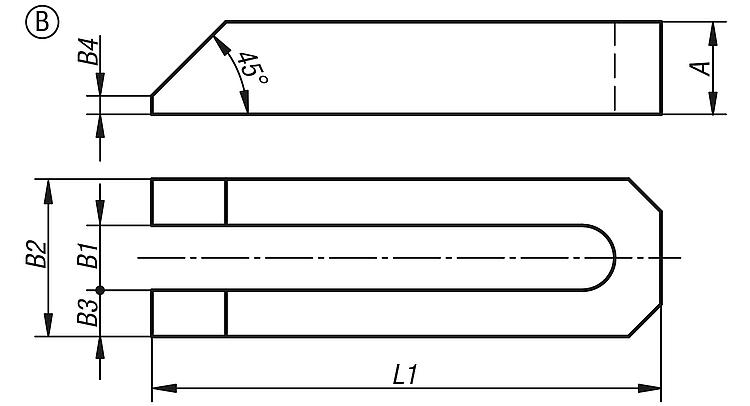

Clamp straps open U, DIN 6315, aluminium

Item selection/filter

Order No.	Main material	Form	L1	A	B1	B2	B3	B4	for screw	Price
04110-206	aluminium	B	60	12	7	19	6	3	M6	on request
04110-208	aluminium	B	80	15	9	25	8	4	M8	on request
04110-210	aluminium	B	100	20	11	31	10	5	M10	on request
04110-212	aluminium	B	125	25	14	38	12	6	M12/M14	on request
04110-2121	aluminium	B	160	28	14	38	12	6	M12/M14	on request
04110-216	aluminium	B	160	30	18	48	15	8	M16/M18	on request
04110-2161	aluminium	B	200	36	18	48	15	8	M16/M18	on request
04110-220	aluminium	B	200	40	22	52	15	10	M20/M22	on request
04110-2201	aluminium	B	250	40	22	62	20	10	M20/M22	on request
04110-224	aluminium	B	200	40	26	66	20	10	M24	on request
04110-2241	aluminium	B	250	40	26	66	20	10	M24	on request
04110-230	aluminium	B	315	50	34	74	20	12	M30/M32	on request
