        Clamp straps, adjustable, goose-neck with screws

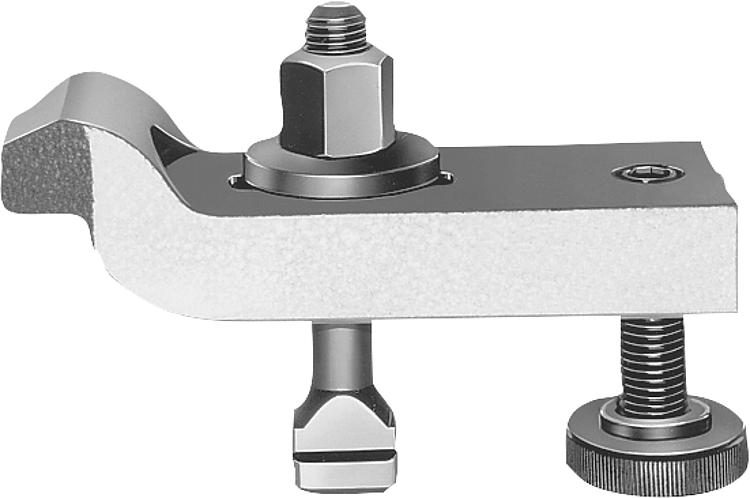

Item description/product images

DescriptionMaterial:QT steel.
Screws tempered grade 8.8Version:Clamp strap painted.
Screws black oxidised.Note:“F” is dependent on the depth of the DIN 650 slot.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04193 Clamp straps, adjustable, goose-neck with screws

147 kB

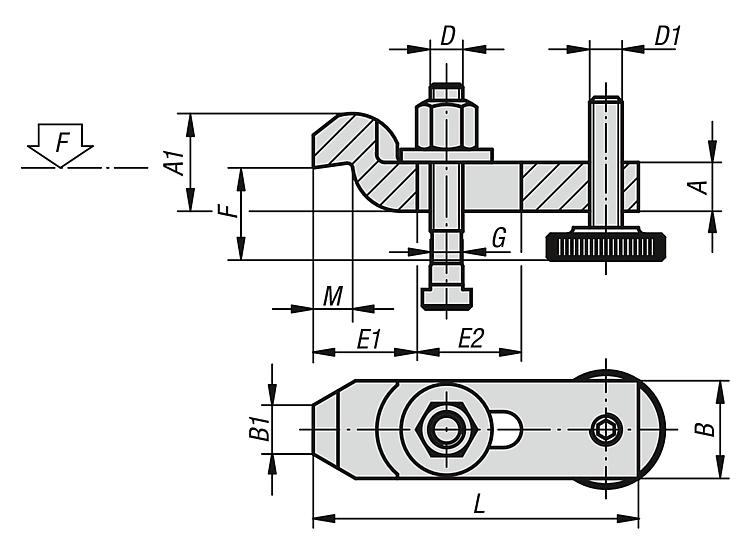

Drawings

Item selection/filter

Order No.	L	A	A1	B	B1	E1	E2	F	G for T-slot	D	D1	M	F kN	Price
04193-1010	100	15	30	30	15	32	32	22-46	10	M10x80	M10	12	13,9	on request
04193-1212	125	20	40	40	20	40	40	28-58	12	M12x100	M12	16	20,2	on request
04193-1214	125	20	40	40	20	40	40	28-56	14	M12x100	M12	16	20,2	on request
04193-1616	160	25	50	50	25	49	50	36-72	16	M16x125	M16	20	37,8	on request
04193-1618	160	25	50	50	25	49	50	36-69	18	M16x125	M16	20	37,8	on request
04193-2020	200	30	60	60	30	55	70	43-92	20	M20x160	M20	24	58,8	on request
04193-2022	200	30	60	60	30	55	70	43-92	22	M20x160	M20	24	58,8	on request
