        Clamp straps, adjustable

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Form A: Tempered and electro zinc-plated.
Form B: Tempered and electro zinc-plated.
Complete with DIN 787 screw for T-slots, DIN 6340 washer and DIN 6330B nut.
Form C: Tempered and electro zinc-plated.
Complete with DIN 6379 stud, DIN 6340 washer and DIN 6330B nut.Note:These adjustable clamp straps can be quickly and infinitely adapted to the clamping situation. The clamp straps have different heel types both sides enabling the best end to be selected depending on the specific application. These extremely versatile clamp straps are suitable for use by metal cutting or non-cutting machining and also for press and injection-moulding applications.Accessory:04204 adjustable heel supportsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04203 Clamp straps, adjustable

216 kB

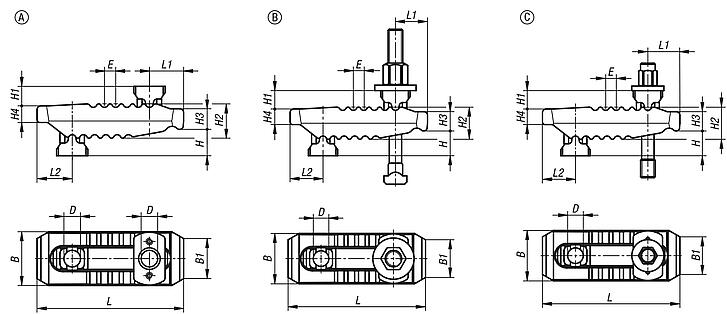

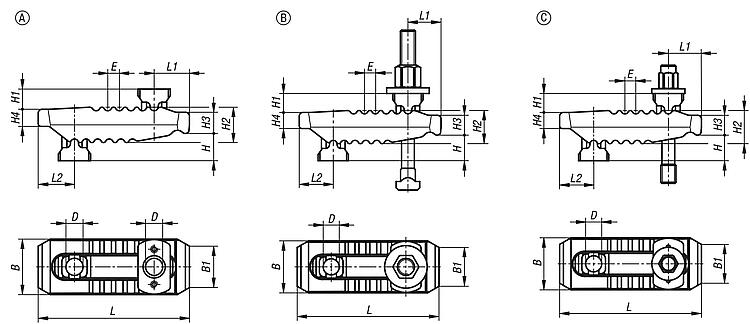

Drawings (total overview)

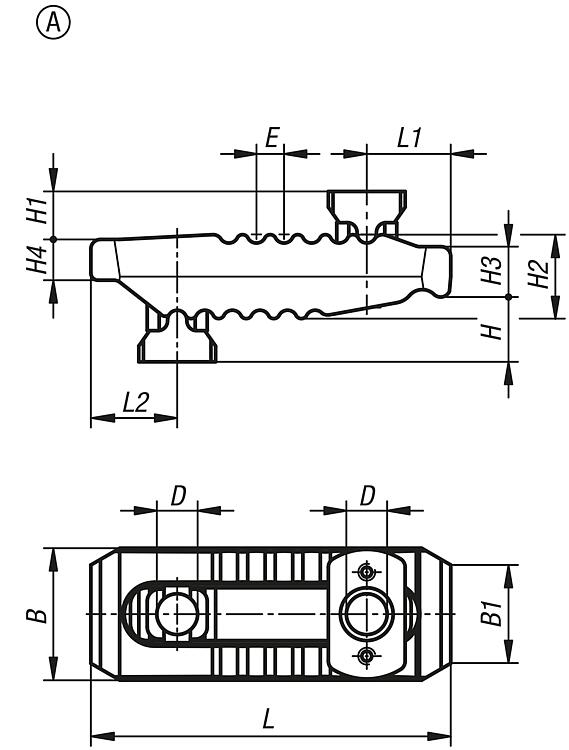

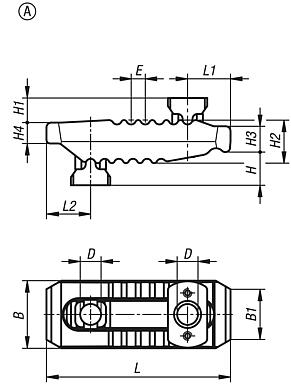

Clamp straps, adjustable, Form A

More information

Drawings

Item selection/filter

Order No.	Form	B	B1	D	E	H clamping range	H1	H2	H3	H4	L=Length	L1	L2	Slot width	Clamping force kN	Price
04203-113115	A	44	30	13	11	0-55	18	27	17	12	115	25	30	10-12-14	30	on request
04203-117150	A	55	41	17	12	0-70	20	36	21	17	150	35	36	12-14-16-18	40	on request
04203-121187	A	62	30	21	14	0-80	30	42	27	20	187	44	44	16-18-20-22	60	on request
04203-125235	A	70	30	25	17	0-100	31	51	34	24	235	60	47	20-22-24-28	75	on request
04203-125285	A	73	30	25	17	0-100	35	56	35	24	285	62	51	20-22-24-28	75	on request

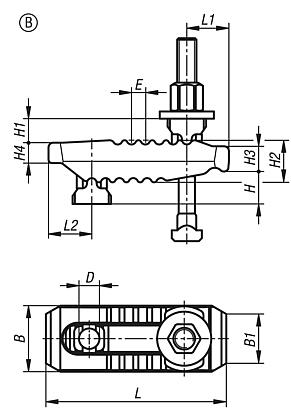

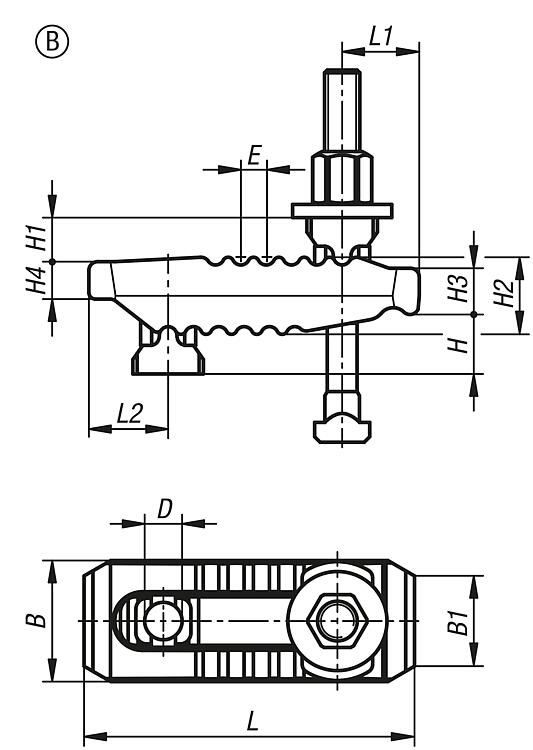

Clamp straps, adjustable, Form B

More information

Drawings

Item selection/filter

Order No.	Form	Version 2	B	B1	D	E	H clamping range	H1	H2	H3	H4	L	L1	L2	Slot width	Fastening screw(s)	Clamping force kN	Price
04203-210115100	B	with t-slot nut	44	30	13	11	0-40	18	27	17	12	115	25	30	10	M10X100	25	on request
04203-212115125	B	with t-slot nut	44	30	13	11	0-55	18	27	17	12	115	25	30	12	M12X125	30	on request
04203-214115125	B	with t-slot nut	44	30	13	11	0-55	18	27	17	12	115	25	30	14	M12X125	30	on request
04203-212150160	B	with t-slot nut	55	41	17	12	0-70	20	36	21	17	150	35	36	12	M12X160	35	on request
04203-214150160	B	with t-slot nut	55	41	17	12	0-70	20	36	21	17	150	35	36	14	M12X160	35	on request
04203-216150160	B	with t-slot nut	55	41	17	12	0-70	20	36	21	17	150	35	36	16	M16X160	40	on request
04203-218150160	B	with t-slot nut	55	41	17	12	0-70	20	36	21	17	150	35	36	18	M16X160	40	on request
04203-216187200	B	with t-slot nut	62	30	21	14	0-80	30	42	27	20	187	44	44	16	M16X200	55	on request
04203-218187200	B	with t-slot nut	62	30	21	14	0-80	30	42	27	20	187	44	44	18	M16X200	55	on request
04203-220187200	B	with t-slot nut	62	30	21	14	0-80	30	42	27	20	187	44	44	20	M20X200	60	on request
04203-222187200	B	with t-slot nut	62	30	21	14	0-80	30	42	27	20	187	44	44	22	M20X200	60	on request
04203-220235250	B	with t-slot nut	70	30	25	17	0-100	31	51	34	24	235	60	47	20	M20X250	70	on request
04203-222235250	B	with t-slot nut	70	30	25	17	0-100	31	51	34	24	235	60	47	22	M20X250	70	on request
04203-224235250	B	with t-slot nut	70	30	25	17	0-100	31	51	34	24	235	60	47	24	M24X250	75	on request
04203-228235250	B	with t-slot nut	70	30	25	17	0-100	31	51	34	24	235	60	47	28	M24X250	75	on request

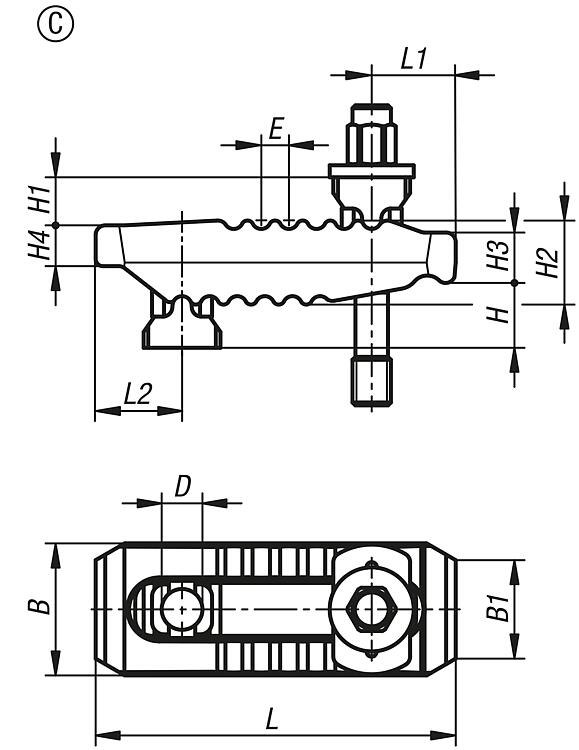

Clamp straps, adjustable, Form C

More information

Drawings

Item selection/filter

Order No.	Form	Version 2	B	B1	D	E	H clamping range	H1	H2	H3	H4	L	L1	L2	Fastening screw(s)	Clamping force kN	Price
04203-312115100	C	with stud	44	30	13	11	0-30	18	27	17	12	115	25	30	M12X100	30	on request
04203-312115125	C	with stud	44	30	13	11	0-55	18	27	17	12	115	25	30	M12X125	30	on request
04203-312150125	C	with stud	55	41	17	12	0-50	20	36	21	17	150	35	36	M12X125	40	on request
04203-312150160	C	with stud	55	41	17	12	0-70	20	36	21	17	150	35	36	M12X160	40	on request
04203-316150125	C	with stud	55	41	17	12	0-40	20	36	21	17	150	35	36	M16X125	40	on request
04203-316150160	C	with stud	55	41	17	12	0-70	20	36	21	17	150	35	36	M16X160	40	on request
04203-320187160	C	with stud	62	30	21	14	0-40	30	42	27	20	187	44	44	M20X160	60	on request
04203-320187200	C	with stud	62	30	21	14	0-80	30	42	27	20	187	44	44	M20X200	60	on request
04203-320235200	C	with stud	70	30	25	17	0-70	31	51	34	24	235	60	47	M20X200	75	on request
04203-320235250	C	with stud	70	30	25	17	0-100	31	51	34	24	235	60	47	M20X250	75	on request
04203-324235200	C	with stud	70	30	25	17	0-50	31	51	34	24	235	60	47	M24X200	75	on request
04203-324235250	C	with stud	70	30	25	17	0-100	31	51	34	24	235	60	47	M24X250	75	on request
