        Pneumatic clamp

Item description/product images

DescriptionMaterial:Levers steel plate.
Hinge pins stainless steel.Version:Lever parts electro zinc-plated.
Pneumatic cylinder, double-acting.
With magnetic piston for end position feedback.
Clamp trivalent passivated.
Complete with tempered, trivalent passivated thrust screw with protective cap.Note:Pneumatic clamps have the following advantages compared to hand clamps:
The operator is relieved of frequent clamping.
Several clamps can be activated at the same time and can be closed in a specific sequence.
Single or multiple clamps can be activated from varying positions by machine control or hand control.
Because of the toggle system:
– the clamp remains closed if the air supply fails.
– the air consumption is low due to the large end ratio.
– pivoting the clamping arm achieves a large opening travel.
– optimum force and movement ratios are achieved.

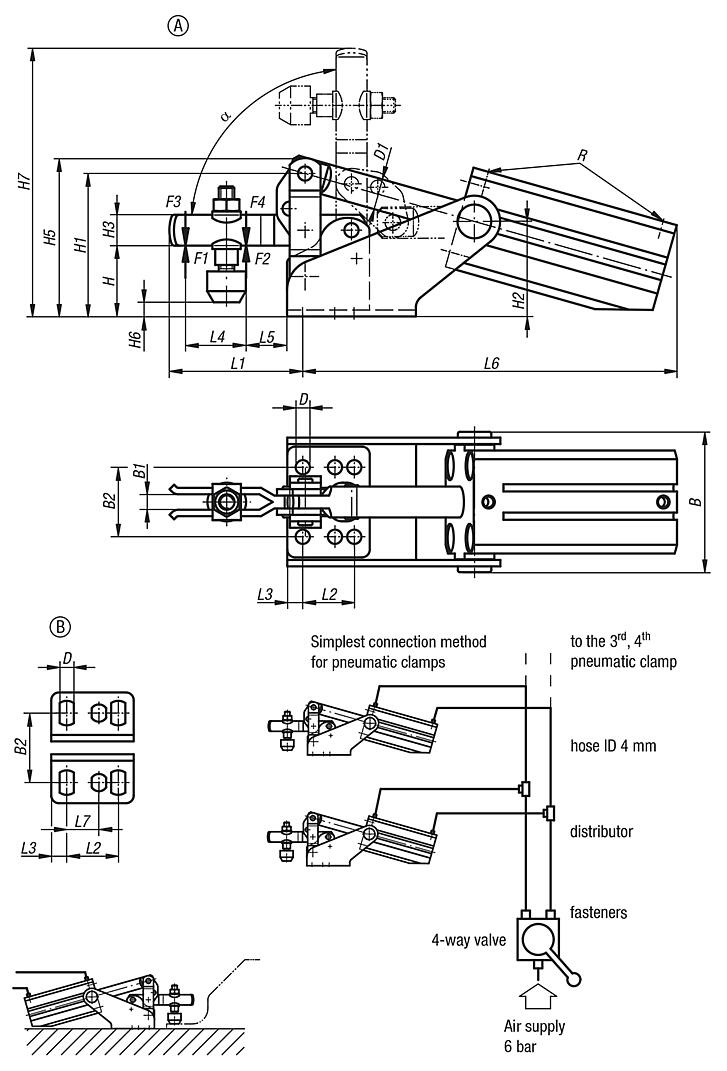

VL = air consumption per complete cycle in dm³ at 6 bar.Selection criteria:To select the correct size of pneumatic clamps, the possible clamping force at 6 bar is specified besides the retaining force. F3 is the possible clamping force that the clamp exerts on the end of the clamping arm, F4 the force it exerts on the fulcrum side.Control:The schematic diagram for the simplest control of one or several pneumatic clamps is shown here. When constructing complete switching systems consult a well known manufacturer of pneumatic valves who can also supply all the required connectors and fittings.Note:The forces F1 and F2 specified in the table are holding forces.
F3 and F4 are clamping forces.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05331 Pneumatic clamp

209 kB

Technical Information for Toggle clamps

127 kB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Form	B	B1	B2	D	D1	H	H1	H2	H3	H5	H6	H7	Price
05331-01	A	50	5	24	4,5	8	21	45,5	32	10	49,5	-2 - 4.5	84	on request
05331-02	B	54,5	6	27	5,5	12	26	55	40,5	12	61	-1 - 7	104	on request
05331-03	A	62,5	8	32	7,5	16	36,5	74,5	56	18	82,5	5,4 - 14	151	on request
05331-04	A	77,5	10	45	8,6	16	45	90	64	20	98	-3 - 25.5	191	on request

Order No.	L1	L2	L3	L4	L5	L6	L7	R	α	F1 kN	F2 kN	F3 kN	F4 kN	VL	suitable thrust screws	Price
05331-01	39	16	6	18	6	126	-	M5	92°	0,8	1,1	0,2	0,3	0,08	M5x30	on request
05331-02	51,5	20	6	25	11	145	12,5	M5	91,5°	1	1,2	0,7	1	0,26	M6x35	on request
05331-03	78	20	7,5	36	19	165,5	-	G1/8	90°	1	2,5	0,65	1,1	0,35	M8x45	on request
05331-04	101	32	13	45	25	196	-	G1/8	90,5°	2	3	1,5	2,2	0,8	M8x65	on request
