        Swing clamp pneumatic block body

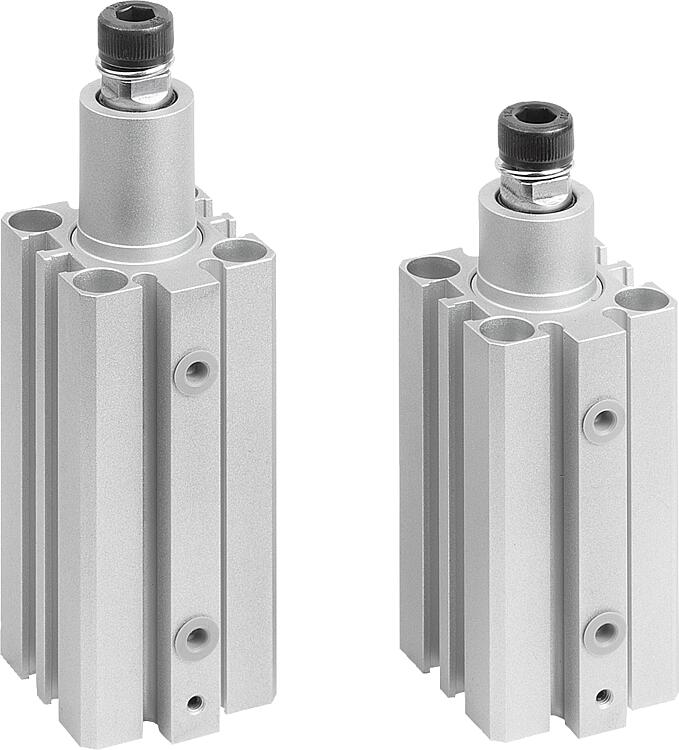

        Swing clamp pneumatic block body, Style B

Item description/product images

DescriptionMaterial:Body aluminium.
Piston steel.Version:Body silver anodised.
Piston hard chrome-platedNote:Pneumatic swing clamps find use where low clamping forces suffice and where the clamping point has to be cleared to enable placing or removing the workpiece.

Due to the double-acting function of the clamp, pressure is used to move the piston downwards and upwards.

The total travel of the swing clamp consists of the swing travel and the clamping travel. At the start of the clamping process, the clamping arm performs a 90° swing movement. When this movement is completed, the linear down clamping travel is carried out. The workpiece must only be clamped using the clamping travel.

The magnetic piston is prepared for electronic end-position feedback. The swing clamp must not be constrained in its swinging action. F1 = at 6 bar max. permitted operating pressure.

The swing clamp must only be operated using lubricated air.

The clamping arm is not supplied.On request:Proximitiy switch.Accessory:05626-05 Clamping arm for swing clamp.Drawing reference:

1) Clamping
2) Releasing
3) Swing travel
4) Clamping travel
5) Relaxed
6) Tensioned
7) Left swinging
8) Right swinging

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05626_B Swing clamp pneumatic block body, Style B

336 kB

Drawings

Item selection/filter

Order No.	Size	Form	Version 2	A	B	B1 max.	B1 min.	B2	B3	D max.	D min.	D1	D2	D3	Price
05626-12010	20	B	swivel to the right	35	4	9,9	9,8	5,5	8,3	18,4	18,32	12	M5	M08x1,25	on request
05626-12020	20	B	swivel to the right	35	4	9,9	9,8	5,5	8,3	18,4	18,32	12	M5	M08x1,25	on request
05626-12510	25	B	swivel to the right	35	5	9,9	9,8	5,5	9	23	22,92	12	M5	M08x1,25	on request
05626-12520	25	B	swivel to the right	35	5	9,9	9,8	5,5	9	23	22,92	12	M5	M08x1,25	on request
05626-13210	32	B	swivel to the right	45	4,5	13,9	13,8	5,5	9	30	29,92	16	G1/8	M10x1,5	on request
05626-13220	32	B	swivel to the right	45	4,5	13,9	13,8	5,5	9	30	29,92	16	G1/8	M10x1,5	on request
05626-14010	40	B	swivel to the right	45	5	13,9	13,8	5,5	9	30	29,92	16	G1/8	M10x1,5	on request
05626-14020	40	B	swivel to the right	45	5	13,9	13,8	5,5	9	30	29,92	16	G1/8	M10x1,5	on request
05626-15020	50	B	swivel to the right	65	7	16,9	16,8	6,6	11	37	36,92	20	G1/4	M12x1,75	on request
05626-15050	50	B	swivel to the right	65	7	16,9	16,8	6,6	11	37	36,92	20	G1/4	M12x1,75	on request
05626-22010	20	B	swivel to the left	35	4	9,9	9,8	5,5	8,3	18,4	18,32	12	M5	M08x1,25	on request
05626-22020	20	B	swivel to the left	35	4	9,9	9,8	5,5	8,3	18,4	18,32	12	M5	M08x1,25	on request
05626-22510	25	B	swivel to the left	35	5	9,9	9,8	5,5	9	23	22,92	12	M5	M08x1,25	on request
05626-22520	25	B	swivel to the left	35	5	9,9	9,8	5,5	9	23	22,92	12	M5	M08x1,25	on request
05626-23210	32	B	swivel to the left	45	4,5	13,9	13,8	5,5	9	30	29,92	16	G1/8	M10x1,5	on request
05626-23220	32	B	swivel to the left	45	4,5	13,9	13,8	5,5	9	30	29,92	16	G1/8	M10x1,5	on request
05626-24010	40	B	swivel to the left	45	5	13,9	13,8	5,5	9	30	29,92	16	G1/8	M10x1,5	on request
05626-24020	40	B	swivel to the left	45	5	13,9	13,8	5,5	9	30	29,92	16	G1/8	M10x1,5	on request
05626-25020	50	B	swivel to the left	65	7	16,9	16,8	6,6	11	37	36,92	20	G1/4	M12x1,75	on request
05626-25050	50	B	swivel to the left	65	7	16,9	16,8	6,6	11	37	36,92	20	G1/4	M12x1,75	on request

Order No.	H	H1	H2	H3	H4	H5	H6	L	L1	L2	S1	S2	Travel S	F1 N	Price
05626-12010	93,5	73	18	39,5	3	3	4	36	25,5	8	9,5	10	19,5	141	on request
05626-12020	113,5	83	18	49,5	3	3	4	36	25,5	8	9,5	20	29,5	141	on request
05626-12510	93,5	73	18	27	3	3	4	40	28	9,6	9,5	10	19,5	264	on request
05626-12520	113,5	83	18	37	3	3	4	40	28	9,6	9,5	20	29,5	264	on request
05626-13210	113,5	80	20	25	3	5,5	6,5	45	34	16,5	15	10	25	422	on request
05626-13220	133,5	90	20	35	3	5,5	6,5	45	34	16,5	15	20	35	422	on request
05626-14010	114,5	80	20	25	3	5,5	6,5	52	40	18	15	10	25	739	on request
05626-14020	134,5	90	20	35	3	5,5	6,5	52	40	18	15	20	35	739	on request
05626-15020	152	101,5	25	37	3,5	5,5	7,5	64	50	20	19	20	39	1155	on request
05626-15050	212	131,5	25	67	3,5	5,5	7,5	64	50	20	19	50	69	1155	on request
05626-22010	93,5	73	18	39,5	3	3	4	36	25,5	8	9,5	10	19,5	141	on request
05626-22020	113,5	83	18	49,5	3	3	4	36	25,5	8	9,5	20	29,5	141	on request
05626-22510	93,5	73	18	27	3	3	4	40	28	9,6	9,5	10	19,5	264	on request
05626-22520	113,5	83	18	37	3	3	4	40	28	9,6	9,5	20	29,5	264	on request
05626-23210	113,5	80	20	25	3	5,5	6,5	45	34	16,5	15	10	25	422	on request
05626-23220	133,5	90	20	35	3	5,5	6,5	45	34	16,5	15	20	35	422	on request
05626-24010	114,5	80	20	25	3	5,5	6,5	52	40	18	15	10	25	739	on request
05626-24020	134,5	90	20	35	3	5,5	6,5	52	40	18	15	20	35	739	on request
05626-25020	152	101,5	25	37	3,5	5,5	7,5	64	50	20	19	20	39	1155	on request
05626-25050	212	131,5	25	67	3,5	5,5	7,5	64	50	20	19	50	69	1155	on request
