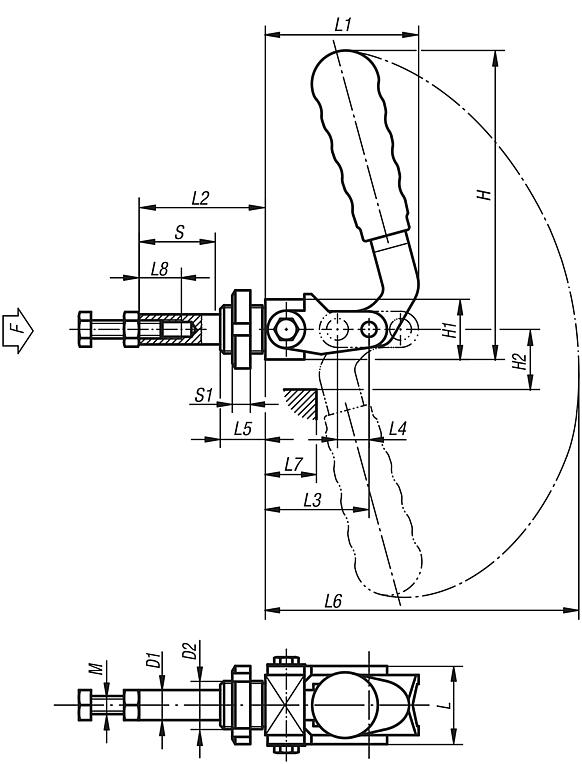

05170Toggle clamps with push rod push-pull operation, for bracket... |
go back |
|
Item description/product images |
|
|

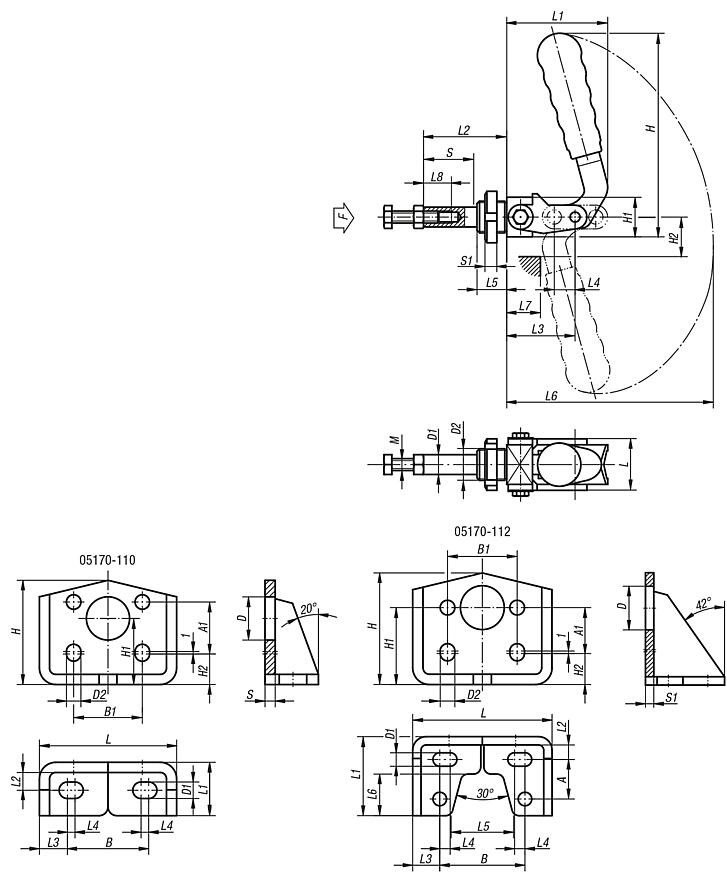

DescriptionMaterial:Body and push-rod 1.0501 carbon steel.
Lever parts steel plate DD11 1.0332.Version:Body and lever parts electro zinc-plated.
Hinge pins tempered.
Plastic handle oil-resistant.Note:The clamp can be mounted with a bracket or into fixtures using the front screw.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
|

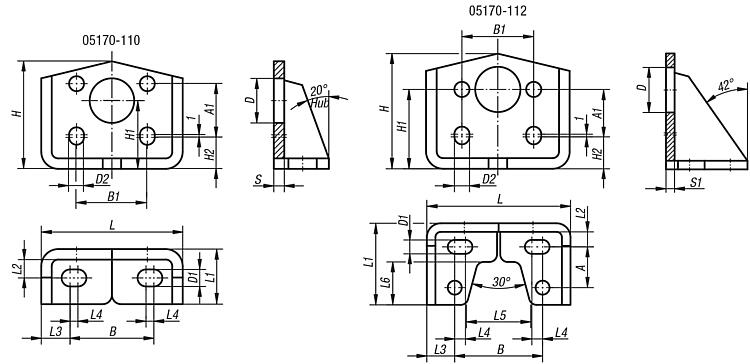

| Order No. | L
| L1 | L2 | L3 | L4 | L5 | L6 | B | B1 | H | H1 | H2 | A | A1 | D | D1 | D2 | S1 | matching
toggle
clamp | CAD | Acc. | Price | Order |
|---|
| 05170-110 | 54 | 21 | 7 | 11 | 3 | - | - | 32 | 27 | 42,5 | 26 | 14 | - | 14 | 17 | 6,5 | 5,5 | 4 | 05170-010 |  | | on request | | | 05170-112 | 67 | 38 | 7 | 13 | 5 | 30 | 20 | 41 | 32 | 55 | 37 | 16 | 19 | 21 | 21 | 6,5 | 6,5 | 4 | 05170-012 | | | on request | |
|
