05302Toggle clamps variable vertical with horizontal foot |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.
Grip made of 2-component plastic.Version:Tempered and electro zinc-plated.
Grip element oil-resistant.Note:The toggle clamp adjusts automatically to the height of the workpiece. Infinitely adjustable clamping height within 35 mm with approximately constant clamping force without manual adjustment of thrust screw position.
The clamping force can be adjusted up to 2.500 N according to requirements using a set screw under the lever in the hinge.
The hole pattern in the baseplate is suitable for millimetres and inches.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

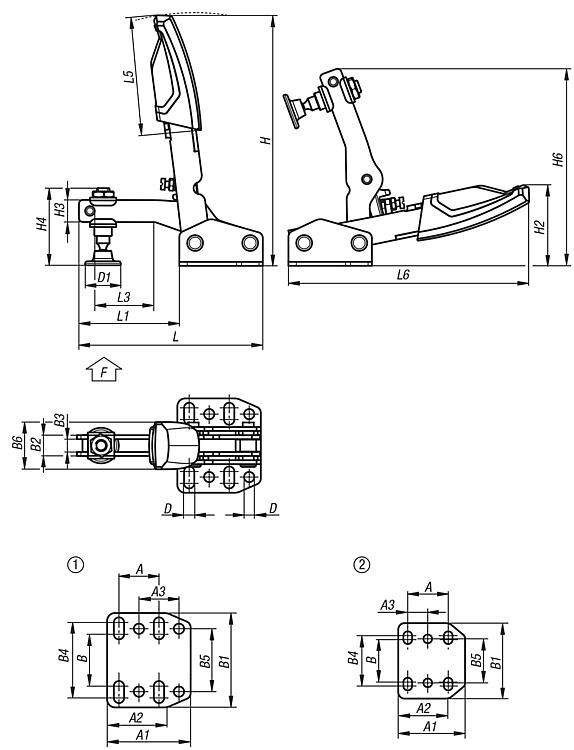

| Order No. | hole
arrangement | A | A1 | A2 | A3 | B | B1 | B2 | B3 | B4 | B5 | B6 | D
| D1 | H | H2 | H3 | H4 | H6 | L | L1 | L3 | L5 | L6 | max.
clamping
height | F
kN | CAD | Acc. | Price | Order |
|---|
| 05302-035 | 2 | 25,7 | 42,4 | 32,4 | 12,7 | 27 | 48 | 10 | 6 | 32 | 28 | 24 | 5,5 | 19 | 129 | 41 | 10 | 42 | 100 | 93,7 | 51,3 | 30 | 60 | 123 | 35 | 1,1 |  | | on request | | | 05302-040 | 1 | 25,4 | 53 | 38 | 25,4 | 33 | 60 | 13 | 8 | 48 | 40 | 30 | 6,5 | 25 | 160 | 62 | 14 | 60 | 126 | 116 | 63 | 40 | 76 | 154 | 40 | 2,5 | | | on request | |
