        Toggle clamps vertical with straight foot and adjustable clamping spindle

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:The clamping spindle is supplied with a neoprene thrust pad.Accessory:05240
05241
05260
05885-01
05887-01
05888
05280
05891-01Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05700-10 Toggle clamps vertical with straight foot and adjustable clamping spindle

281 kB

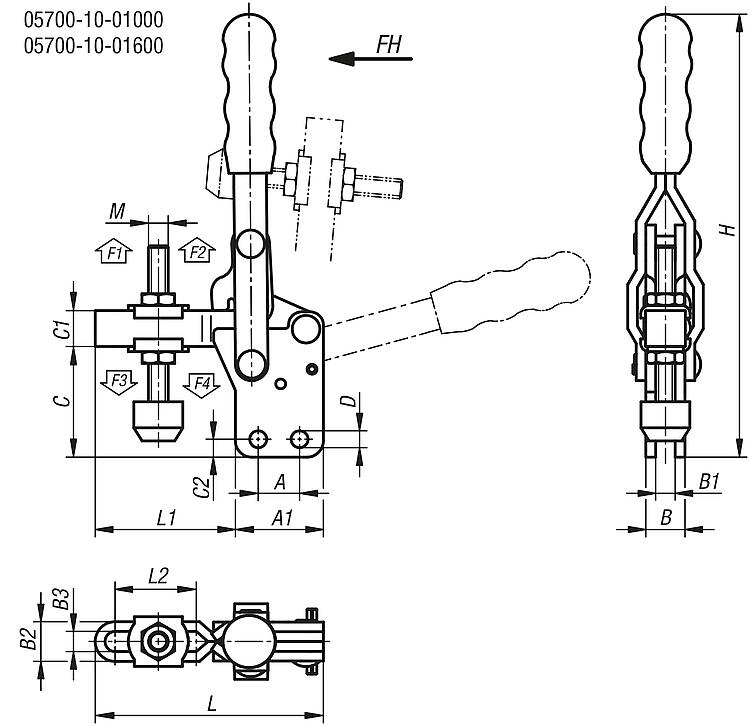

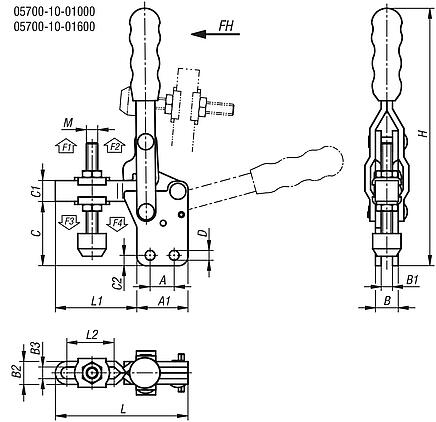

Drawings

Item selection/filter

Order No.	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Price
05700-10-01000	120°	85°	80	700	1000	500	750	on request
05700-10-01600	95°	75°	100	1200	1600	800	1000	on request
05700-10-02400	100°	56°	150	1200	2400	800	1600	on request
05700-10-04000	112°	61°	250	2000	4000	1400	3000	on request

Order No.	A	A1	B	B1	B2	B3	C	C1	C2	D	H	L	L1	L2	M	Price
05700-10-01000	16	26	8	4	9,5	5,5	27,6	9	5	4,4	99,7	57	31	16,6	M5x40	on request
05700-10-01600	12,7	27	12	6	12,2	6,2	34	11	5,5	5,2	136	70	43	24,9	M6x50	on request
05700-10-02400	19	34,9	12	6	14,3	8,3	46,8	16	7,1	7,2	156	117,2	73,2	49,4	M8x63	on request
05700-10-04000	31,8	49,2	14	8	19	11	67,2	19	9,5	8,7	229	139,5	90,3	63,5	M10x85	on request
