        Toggle clamps vertical with straight foot and adjustable clamping spindle

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:A neoprene thrust pad is supplied with version 05700-15-02400.Accessory:05240
05241
05260
05885-01
05887-01
05888
05280
05891-01Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05700-15 Toggle clamps vertical with straight foot and adjustable clamping spindle

263 kB

Technical information for toggle clamps

1,7 MB

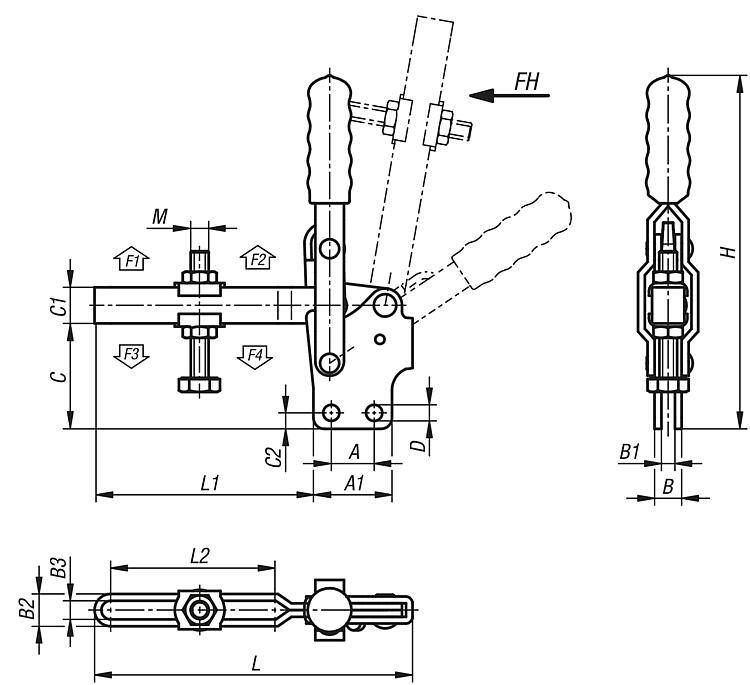

Drawings

Item selection/filter

Order No.	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Price
05700-15-02400	100°	56°	150	1200	2400	800	1600	on request
05700-15-07000	90°	70°	250	3200	7000	1400	3000	on request
05700-15-08000	100°	50°	280	3000	8000	1800	3900	on request

Order No.	A	A1	B	B1	B2	B3	C	C1	C2	D	H	L	L1	L2	M	Price
05700-15-02400	19	34,9	12	6	14,3	8,3	46,8	16	7,1	7,2	156	141	97	73,2	M8x63	on request
05700-15-07000	32	53	20	10	22,7	12,7	70,4	25	9,5	8,7	245	177	124	90	M12x100	on request
05700-15-08000	50,8	76,2	20	10	26,5	16,5	113,5	31,8	12,7	12,3	335	229,2	153	105	M16x150	on request
