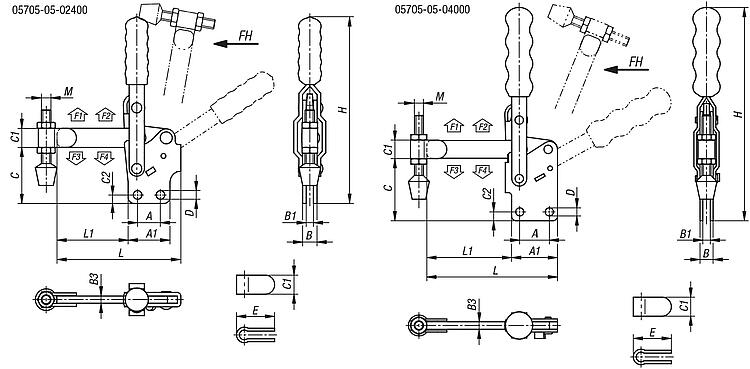

05705-05Toggle clamps vertical with straight foot and full holding arm |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:The clamping spindle is supplied with a neoprene thrust pad.
Spindle bracket is weldable.Accessory:05240
05241
05260
05885-01
05887-01
05888
05280Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Opening
angle of
holding arm | Opening
angle of
handle | Hand
force
FH N | Retaining
force
F1 N | Retaining
force
F2 N | Clamping
force
F3 N | Clamping
force
F4 N | CAD | Acc. | Price | Order |
|---|
| 05705-05-02400 | 100° | 56° | 150 | 1200 | 2400 | 800 | 1600 |  | | on request | | | 05705-05-04000 | 112° | 61° | 250 | 2000 | 4000 | 1400 | 3000 | | | on request | |
| Order No. | A
| A1 | B | B1 | B3 | C | C1 | C2 | D | E | H | L | L1 | M | CAD | Acc. | Price | Order |
|---|
| 05705-05-02400 | 19 | 34,9 | 12 | 6 | 6 | 46,8 | 16 | 7,1 | 7,2 | 31 | 156 | 103,4 | 59,4 | M8x63 | | | on request | | | 05705-05-04000 | 31,8 | 49,2 | 14 | 8 | 8 | 67,2 | 19 | 9,5 | 8,7 | 40 | 229 | 140,3 | 91,1 | M10x85 | | | on request | |
