05715-20Toggle clamps mini vertical with flat foot and fixed clamping... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.Note:A neoprene thrust pad is supplied with version 05715-20-0800.Accessory:05240
05241
05885
05885-01
05887-01
05886
05887
05888
05280Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Opening
angle of
holding arm | Opening
angle of
handle | Hand
force
FH N | Retaining
force
F1 N | Clamping
force
F3 N | CAD | Acc. | Price | Order |
|---|
| 05715-20-0800 | steel | 95° | 60° | 100 | 800 | 600 |  | | on request | | | 05715-20-1800 | stainless steel | 95° | 60° | 100 | 800 | 600 | | | on request | |

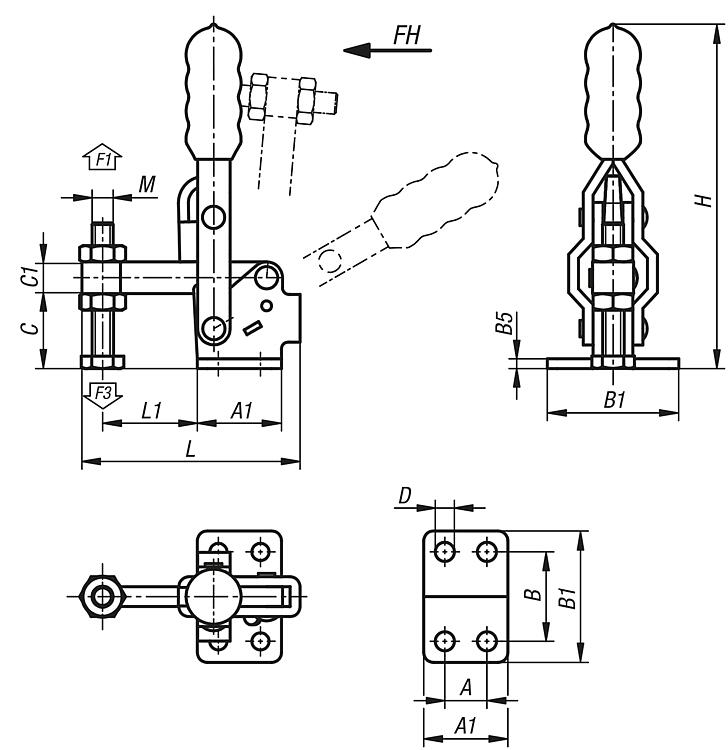

| Order No. | Main
material | A
| A1 | B | B1 | B5 | C | C1 | D | H | L | L1 | M | CAD | Acc. | Price | Order |
|---|
| 05715-20-0800 | steel | 12,7 | 25,4 | 27 | 39,7 | 3 | 22,7 | 9,6 | 5,2 | 104 | 65,8 | 28,6 | M6x44 | | | on request | | | 05715-20-1800 | stainless steel | 12,7 | 25,4 | 27 | 39,7 | 3 | 22,7 | 9,6 | 5,2 | 104 | 65,8 | 28,6 | M6x40 | | | on request | |
