        Toggle clamps vertical with angled foot and adjustable clamping spindle

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:A neoprene thrust pad is supplied with versions 05730-01-01000 and 05730-01-02000.Accessory:05240
05241
05260
05885-01
05887-01
05888
05280
05891-01Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05730-01 Toggle clamps vertical with angled foot and adjustable clamping spindle

339 kB

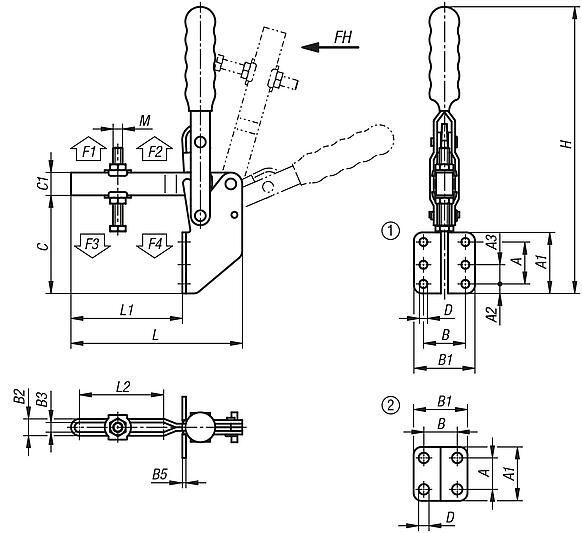

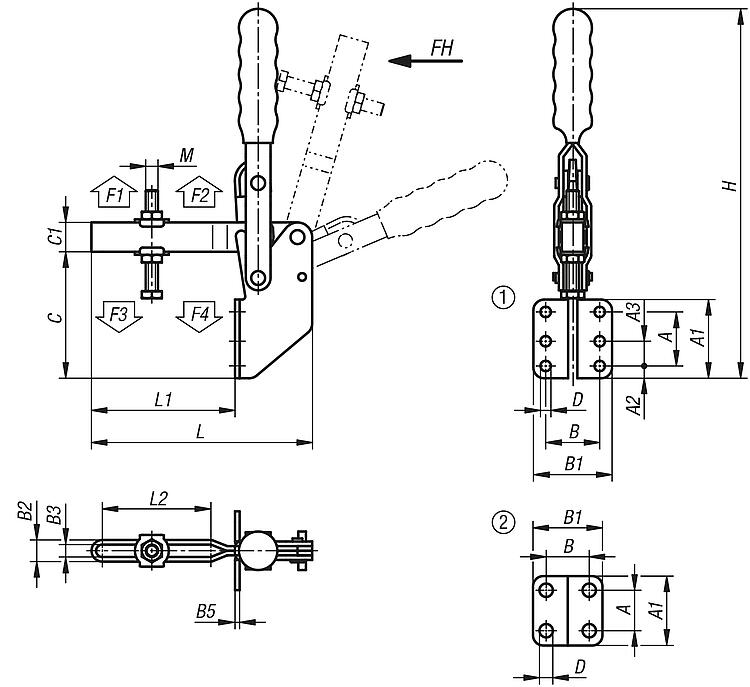

Drawings

Item selection/filter

Order No.	hole arrangement	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Price
05730-01-01000	2	96°	69°	50	700	1000	500	800	on request
05730-01-02000	2	108°	70°	100	1000	2000	900	1300	on request
05730-01-03600	1	106°	67°	100	1800	3600	900	1800	on request

Order No.	A	A1	A2	A3	B	B1	B2	B3	B5	C	C1	D	H	L	L1	L2	M	Price
05730-01-01000	14	29	-	-	17,5	28	10	5	2,5	44	10	4,9	121	67	31	26	M5x35	on request
05730-01-02000	19	35	-	-	26	42	11	6	3	64	13	5,5	170	79	35	29,5	M6x50	on request
05730-01-03600	35	51	8	16	35	51	14,8	8,8	3	82	19	6,8	244	143	93	70	M8x60	on request
