        Toggle clamps vertical with angled foot and fixed clamping spindle

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.Note:A neoprene thrust pad is supplied with versions 05735-01-00800 and 05735-01-01600.Accessory:05240
05241
05260
05885-01
05887-01
05888
05280Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05735-01 Toggle clamps vertical with angled foot and fixed clamping spindle

326 kB

Technical information for toggle clamps

1,7 MB

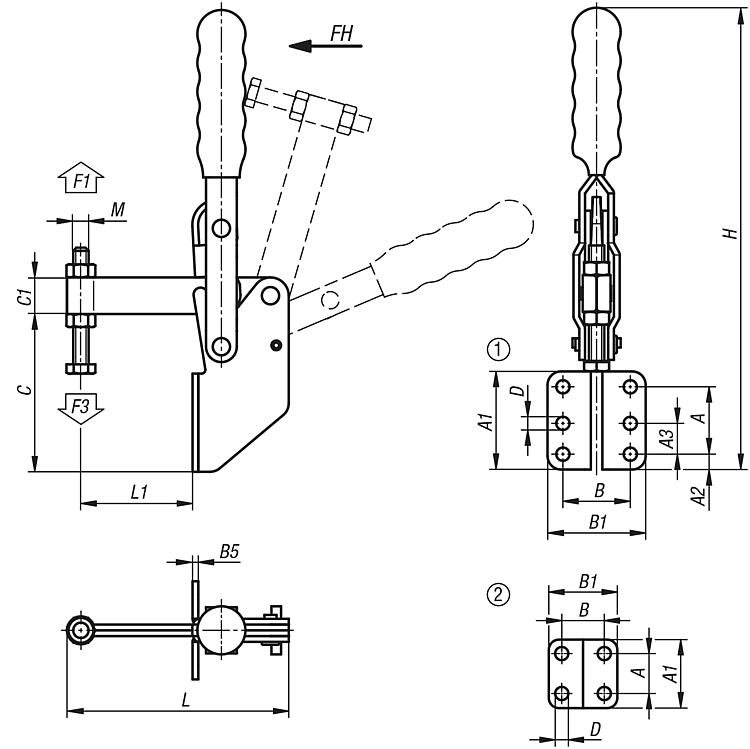

Drawings

Item selection/filter

Order No.	hole arrangement	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Clamping force F3 N	Price
05735-01-00800	2	96°	69°	50	800	600	on request
05735-01-01600	2	108°	70°	100	1600	1100	on request
05735-01-03000	1	106°	67°	100	3000	1100	on request

Order No.	A	A1	A2	A3	B	B1	B5	C	C1	D	H	L	L1	M	Price
05735-01-00800	14	29	-	-	17,5	28	2,5	44	10	4,9	121	65,65	24,5	M5x35	on request
05735-01-01600	19	35	-	-	26	42	3	64	13	5,5	170	75,7	26	M6x50	on request
05735-01-03000	35	51	8	16	35	51	3	82	19	6,8	244	115,3	58	M8x60	on request
