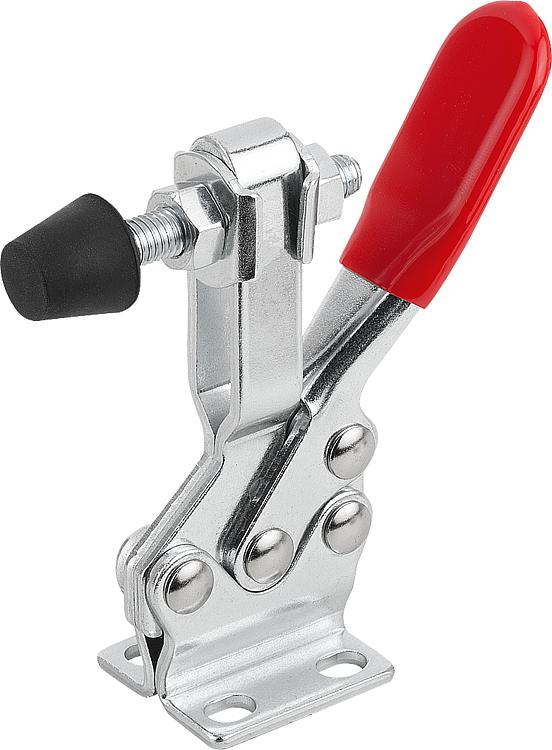

        Toggle clamps horizontal with flat foot and adjustable clamping spindle

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.Note:A neoprene thrust pad is supplied with versions 05765-01-022000, 05765-01-033200 and 05765-01-045000.Accessory:05240
05241
05260
05885-01
05887-01
05888
05280
05891-01Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05765-01 Toggle clamps horizontal with flat foot and adjustable clamping spindle

368 kB

Drawings

Item selection/filter

Order No.	Main material	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Price
05765-01-010500	steel	90°	75°	50	250	500	150	350	on request
05765-01-022000	steel	85°	73°	100	1000	2000	600	1200	on request
05765-01-033200	steel	90°	65°	150	2000	3200	800	1600	on request
05765-01-045000	steel	90°	68°	250	2200	5000	1100	3000	on request
05765-01-110500	stainless steel	90°	75°	50	250	500	150	350	on request
05765-01-122000	stainless steel	85°	73°	100	1000	2000	600	1200	on request
05765-01-133200	stainless steel	90°	65°	150	2000	3200	800	1600	on request
05765-01-145000	stainless steel	90°	68°	250	2200	5000	1100	3000	on request

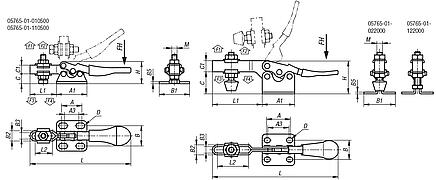

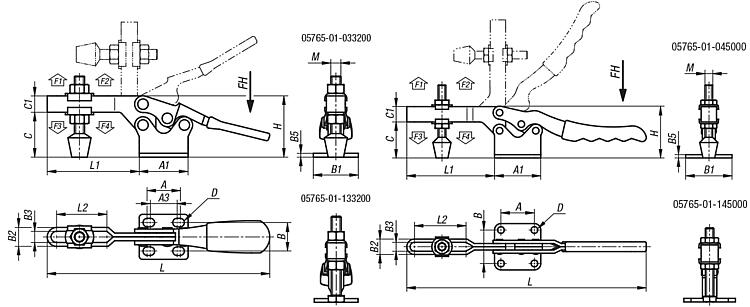

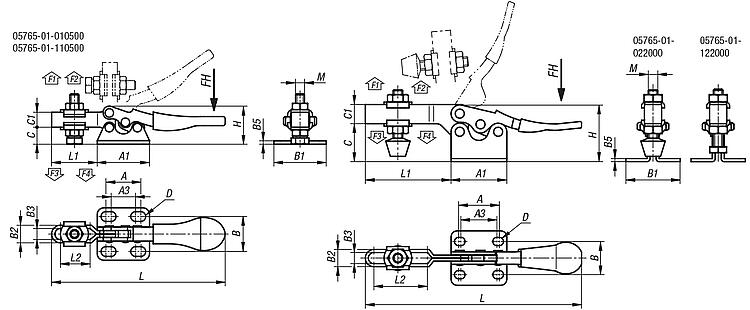

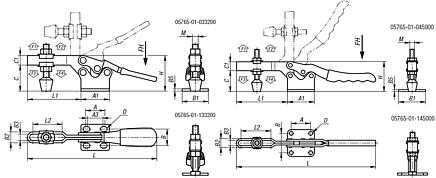

Order No.	Main material	A	A1	A3	B	B1	B2	B3	B5	C	C1	D	H	L	L1	L2	M	Price
05765-01-010500	steel	15,9	23,8	11,1	15,9	23,8	8	5	1,5	7,7	6,8	4,4	17,3	79	20,7	13,5	M4x20	on request
05765-01-022000	steel	27	37	25,4	22	36	11,4	7,4	2	25,1	12,7	5,5	37,8	143,5	56,9	35,7	M6x44	on request
05765-01-033200	steel	25,4	38	20,8	22,2	35	14,7	8,7	3	34,9	12,7	6,7	47,6	173	71,6	39,1	M8x63	on request
05765-01-045000	steel	41,3	57,1	-	41,3	57,2	19	11	4	44,4	19	8,3	63,4	295,6	108,3	63,6	M10x85	on request
05765-01-110500	stainless steel	15,9	23,8	11,1	15,9	23,8	8	5	1,5	7,7	6,9	4,4	17,3	79	20,7	13,5	M4x20	on request
05765-01-122000	stainless steel	27	37	25,4	22	36	11,4	7,4	2	25,1	12,7	5,5	37,8	143,5	56,9	35,7	M6x40	on request
05765-01-133200	stainless steel	25,4	38	20,8	22,2	35	14,7	8,7	3	34,9	12,7	6,7	47,6	173	71,6	39,1	M8x60	on request
05765-01-145000	stainless steel	41,3	57,1	-	41,3	57,2	19	11	4	44,4	19	8,3	63,4	295,6	108,3	63,6	M10x80	on request
