        Toggle clamps horizontal with flat foot and adjustable clamping spindle

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Electro zinc-plated steel.
Bright stainless steel.
Plastic handle, oil-resistant.Note:A neoprene thrust pad is supplied with versions 05775-03-02500 and 05775-03-12500.Accessory:05240
05241
05260
05885
05885-01
05886
05587
05887-01
05888
05280
05891-01
05880-01Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05775-03 Toggle clamps horizontal with flat foot and adjustable clamping spindle

431 kB

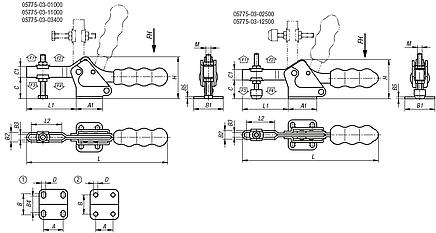

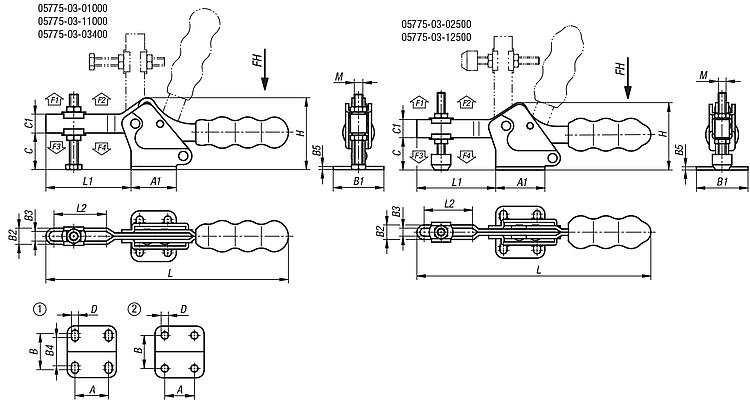

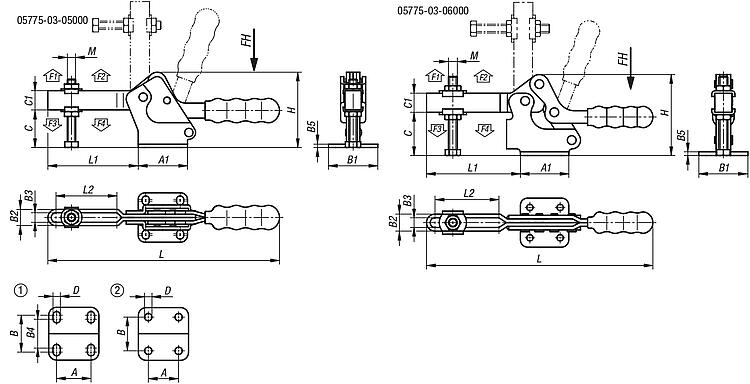

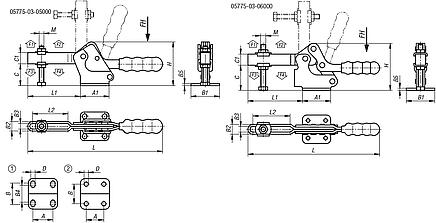

Drawings

Item selection/filter

Order No.	Main material	hole arrangement	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Retaining force F2 N	Clamping force F3 N	Clamping force F4 N	Price
05775-03-01000	steel	2	96°	78°	80	500	1000	250	500	on request
05775-03-02500	steel	1	93°	76°	150	1200	2500	400	1000	on request
05775-03-03400	steel	1	90°	72°	200	1400	3400	800	1900	on request
05775-03-05000	steel	1	90°	72°	250	2200	5000	1100	3000	on request
05775-03-06000	steel	2	94°	80°	250	3000	6000	1200	3200	on request
05775-03-11000	stainless steel	2	96°	78°	80	500	1000	250	500	on request
05775-03-12500	stainless steel	1	93°	76°	150	1200	2500	400	1000	on request

Order No.	Main material	A	A1	B	B1	B2	B3	B4	B5	C	C1	D	H	L	L1	L2	M	Price
05775-03-01000	steel	13,5	25	16,8	27	9,3	5,3	-	2	19	9,5	5,2	38,5	112	37	22,8	M5x40	on request
05775-03-02500	steel	26	38	28	40	11,2	6,2	22	2,5	25	14	5,5	52,1	173	61	37,5	M6x50	on request
05775-03-03400	steel	26	42	31	47	15	9	26	3	34	17,5	6,6	66,5	225	79	48,6	M8x60	on request
05775-03-05000	steel	41,2	59	43	59	19,4	11,4	39	4	45	23	8,7	90,1	277	108	72,9	M10x80	on request
05775-03-06000	steel	41,2	66	41,3	67	23,2	13,2	-	5	59	26	8,7	110,4	308	128	87,2	M12x100	on request
05775-03-11000	stainless steel	13,5	25	16,8	27	9,3	5,3	-	2	19	9,5	5,2	38,5	112	37	22,8	M5x40	on request
05775-03-12500	stainless steel	26	38	28	40	11,2	6,2	22	2,5	25	14	5,5	52,1	173	61	37,5	M6x50	on request
