Toggle clamps horizontal with flat foot and fixed clamping spindle

05800-01

Toggle clamps horizontal with flat foot and fixed clamping...

Products
- Product overview
  - Flexible standard component system
    - Toggle clamps Pneumatic clamps Accessories for clamps Latches Quarter-turn locks
      - Toggle clamps
        Toggle clamps horizontal with flat foot and fixed clamping spindle

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.Note:The clamping spindle is supplied with a neoprene thrust pad.Accessory:05240
05241
05885-01
05887-01
05888
05280
05880-01Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05800-01 Toggle clamps horizontal with flat foot and fixed clamping spindle

Technical information for toggle clamps

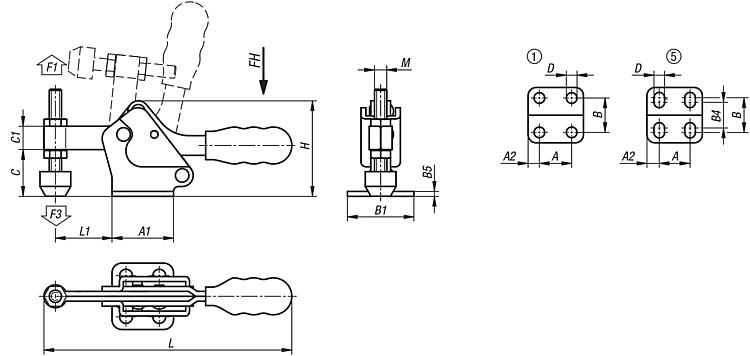

Drawings

Toggle clamps horizontal with flat foot and fixed clamping spindle

Item selection/filter

Order No.	hole arrangement	Opening angle of holding arm	Opening angle of handle	Hand force FH N	Retaining force F1 N	Clamping force F3 N	CAD	Acc.	Price	Order
05800-01-00700	1	96°	78°	50	700	300			on request
05800-01-01400	5	93°	76°	150	1400	600			on request

Order No.	A	A1	A2	B	B1	B4	B5	C	C1	D	H	L	L1	M	CAD	Acc.	Price	Order
05800-01-00700	13,5	25	5,7	16,8	27	-	2	19	9,5	5,2	38,8	101	23	M5x35			on request
05800-01-01400	26	38	6	28	40	22	2,5	25	14	5,5	53	156	38	M6x50			on request
