        Push-pull toggle clamps, steel retaining force up to 6675 N

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:The clamps lock in the open and closed handle positions.
This means they can clamp during the pushing or pulling actions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05837-24 Push-pull toggle clamps, steel retaining force up to 6675 N

270 kB

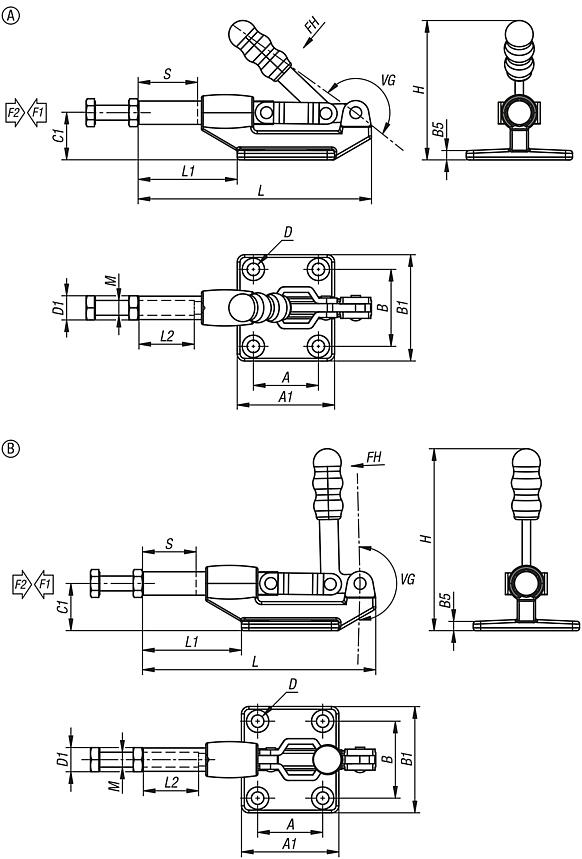

Drawings (total overview)

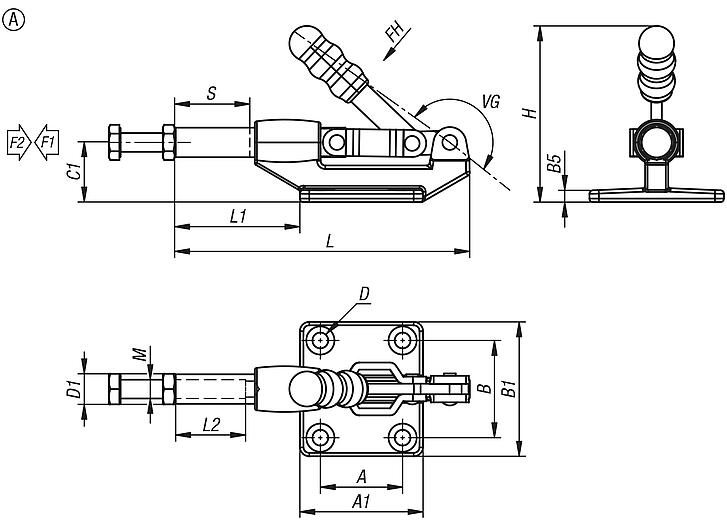

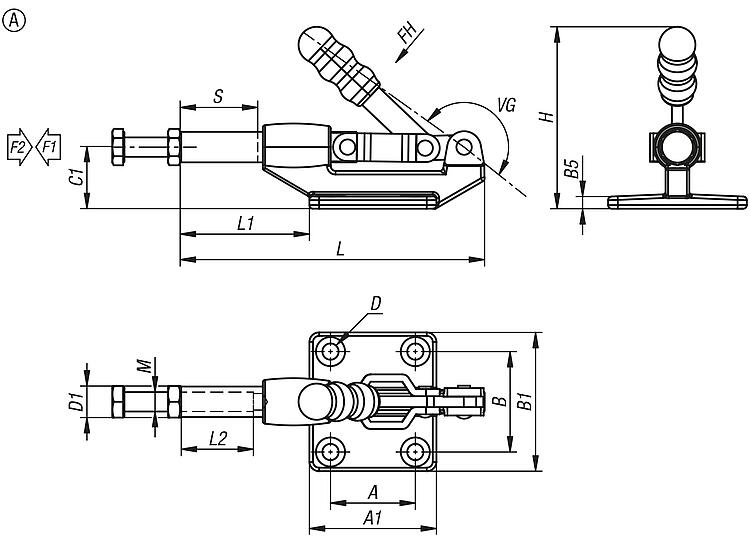

Push-pull toggle clamps, steel, retaining force up to 6675 N, Form A

More information

Drawings

Push-pull toggle clamps, steel, retaining force up to 6675 N, Form A

Item selection/filter

Order No.	Form	A	A1	B	B1	B5	C1	D	D1	H	Travel S	L	L1	L2	M	Opening angle of handle	Hand force FH N	Clamping force F1 N	Retaining force F2 N	Price
05837-24-022501	A	35	52,4	41,4	57,2	5	25,4	6,7	12,6	75	32	125,5	53,3	30,2	M8x50	183°	60	1300	2250	on request
05837-24-038001	A	41,4	58,8	41,4	57,2	5	31,8	8,3	15,9	95,7	42	157,2	78	40	M10x50	183°	100	1800	3800	on request
05837-24-066751	A	50,8	73,2	50,8	71,4	6,4	44,4	8,3	18,9	142	60	235,6	118,4	50	M12x50	183°	140	3000	6675	on request

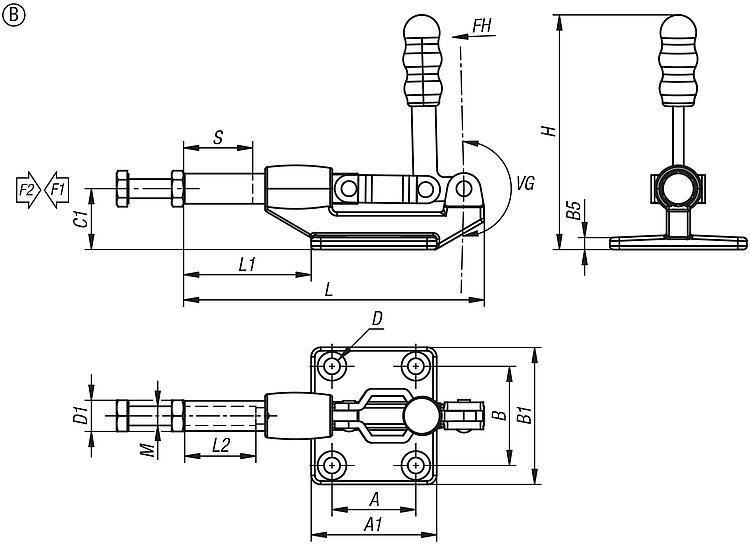

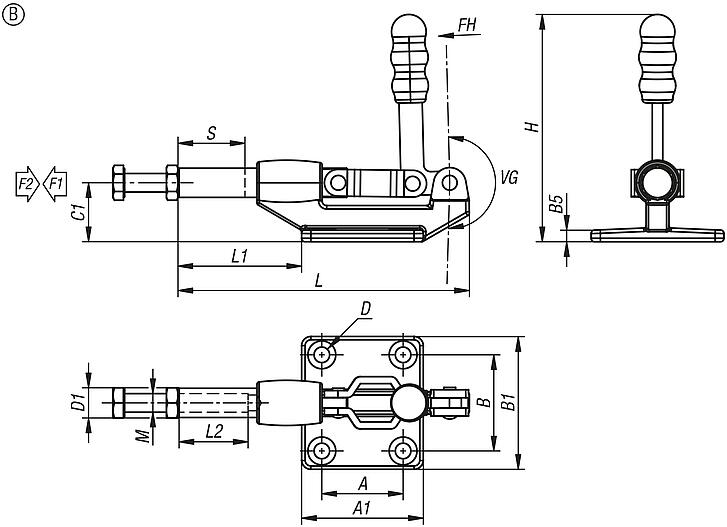

Push-pull toggle clamps, steel, retaining force up to 6675 N, Form B

More information

Drawings

Push-pull toggle clamps, steel, retaining force up to 6675 N, Form B

Item selection/filter

Order No.	Form	A	A1	B	B1	B5	C1	D	D1	H	Travel S	L	L1	L2	M	Opening angle of handle	Hand force FH N	Clamping force F1 N	Retaining force F2 N	Price
05837-24-022502	B	35	52,4	41,4	57,2	5	25,4	6,7	12,6	97,9	32	125,5	53,3	30,2	M8x50	183°	60	1300	2250	on request
05837-24-038002	B	41,4	58,8	41,4	57,2	5	31,8	8,3	15,9	124,9	42	157,2	78	40	M10x50	183°	100	1800	3800	on request
05837-24-066752	B	50,8	73,2	50,8	71,4	6,4	44,4	8,3	18,9	174	60	235,6	118,4	50	M12x50	183°	140	3000	6675	on request
