        Push-pull clamps heavy-duty version with handle

Item description/product images

DescriptionMaterial:Steel.
Body and handle ductile iron (SG iron)Version:Phosphated, plastic handle oil-resistantNote:The clamps lock in the open and closed handle positions. They can be used for thrust or tension clamping.
These clamps also have travel limitation for advance and retraction.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05840 Push-pull clamps heavy-duty version with handle

165 kB

Technical Information for Toggle clamps

127 kB

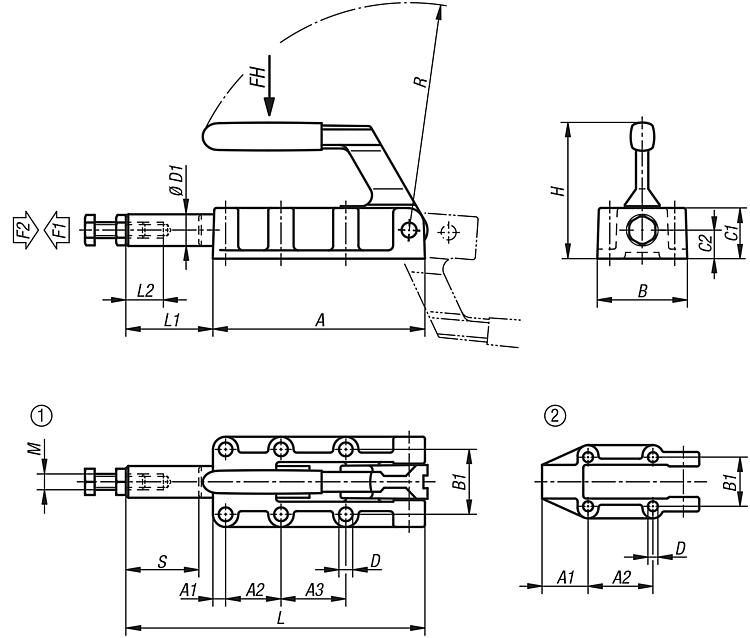

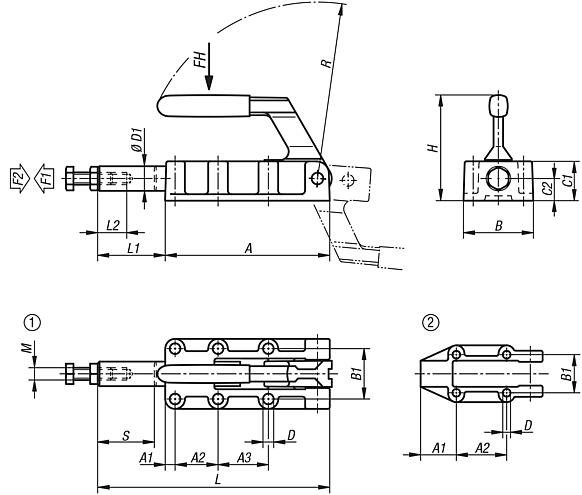

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	hole arrangement	Opening angle of handle	Hand force FH N	Retaining force F2 N	Clamping force F1 N	Price
05840-06001	2	185°	140	6000	3000	on request
05840-12001	1	185°	150	12000	5000	on request
05840-25001	1	185°	170	25000	5000	on request
05840-50001	1	185°	200	50000	7000	on request

Order No.	A	A1	A2	A3	B	B1	C1	C2	D	D1	H	L	L1	L2	M	R	Travel S	Price
05840-06001	89	25	36,5	-	46	33,4	23	12	5,5	14	63	127	38	30	M8	95	32	on request
05840-12001	133	8	35	41	61	41	32	18	8,5	20	88	188	55	40	M10	143	50	on request
05840-25001	197	11	45	45	82	54	41	22	10,3	25	108	300	103	60	M12	200	75	on request
05840-50001	254	10	70	70	85	57	50	28	10,3	30	127	390	136	60	M16	245	100	on request
